S3373 – Normal beam transducer

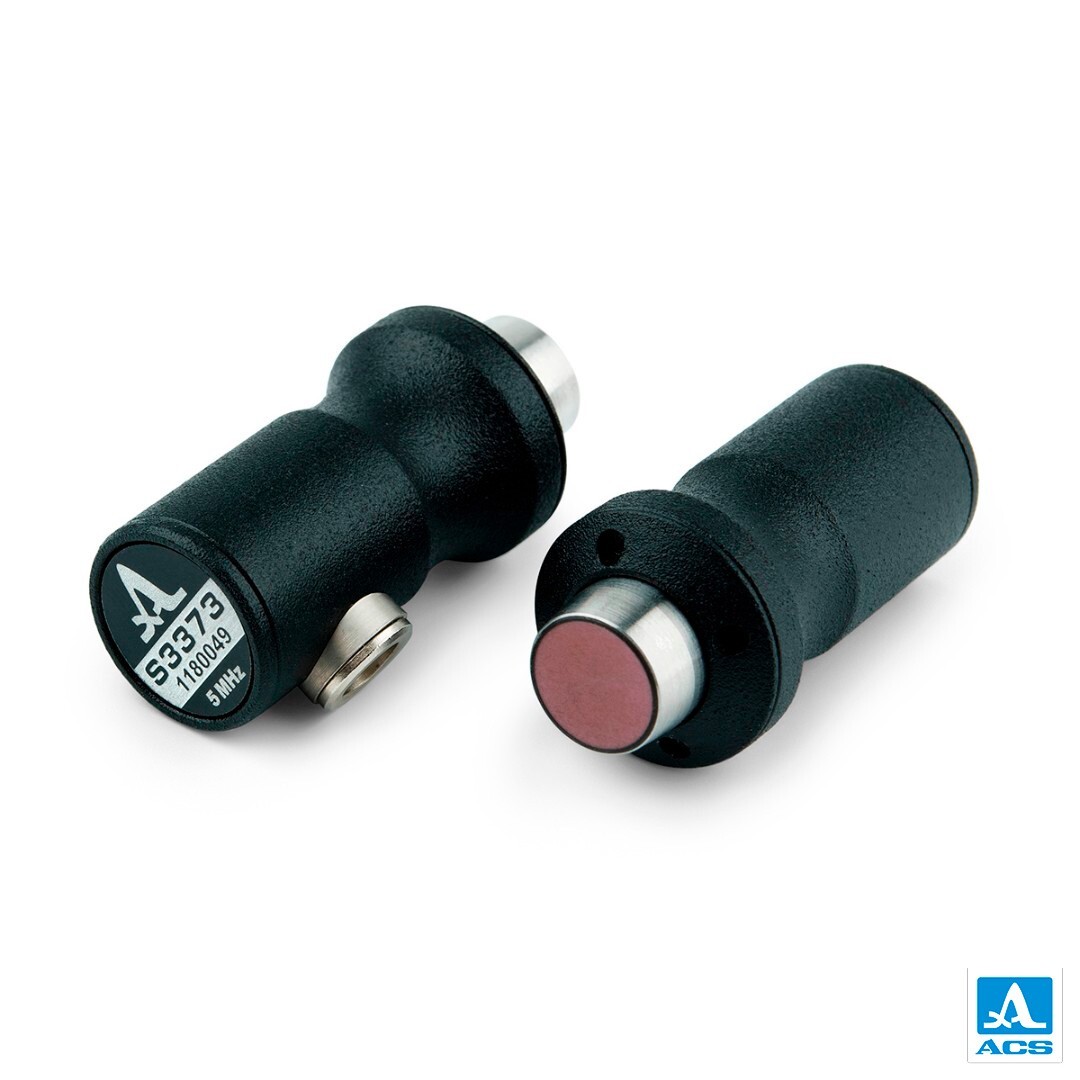

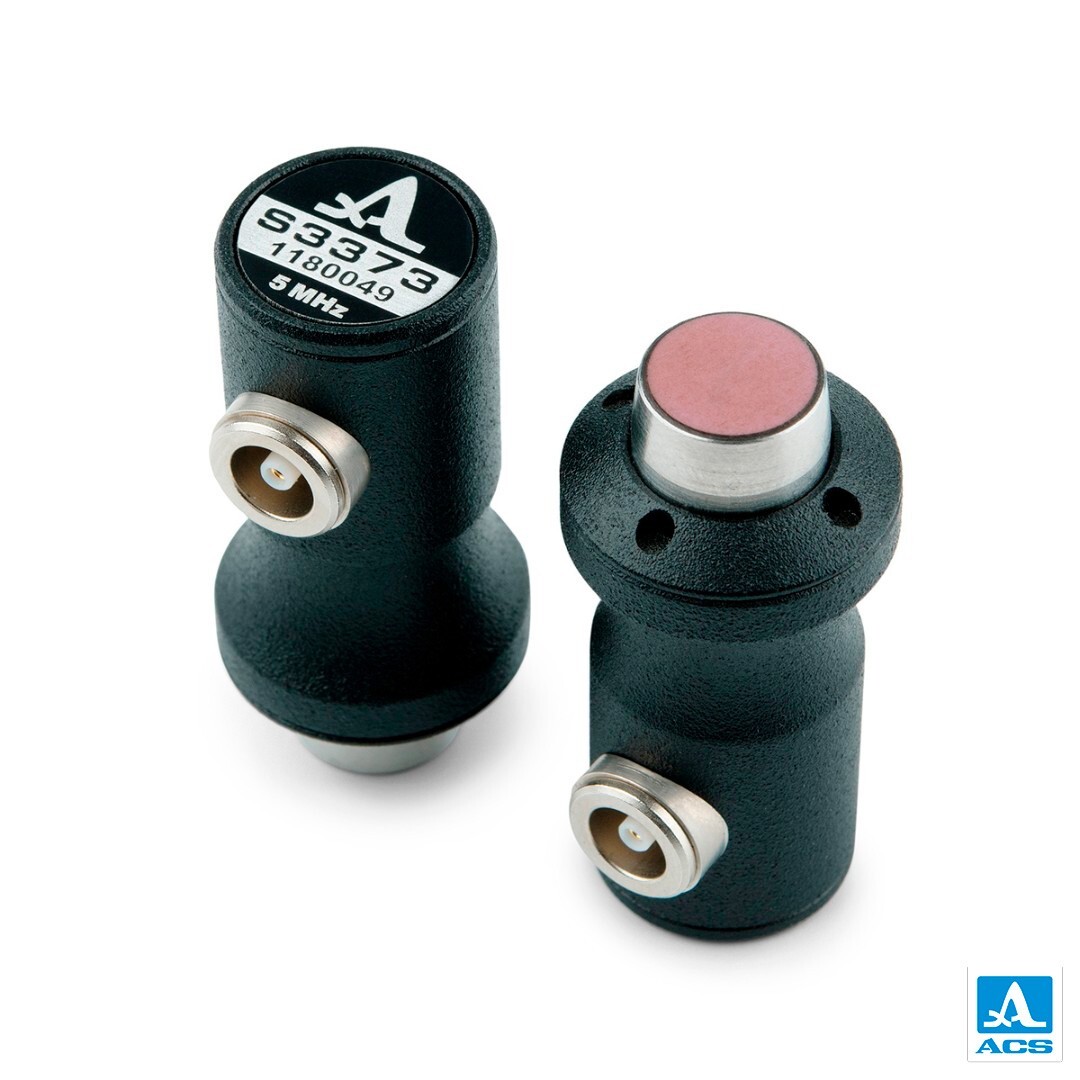

Single-crystal normal-beam ultrasonic transducer for transmitting and receiving the longitudinal ultrasonic waves

Einkaufsquellen

Category:

The ultrasonic single crystal transducer S3373 is used to perform the wall thickness measurements and ultrasonic flaw detection in metallic, plastic and composite materials by transmitting and receiving ultrasonic longitudinal waves. The transducer can be used as a part of ultrasonic thickness gauges and flaw detectors in pulse-echo mode.

The transducer can be driven by following ACS instruments:

Type of transducer single element, piezoelectric
Type of generated wave mode Longitudinal

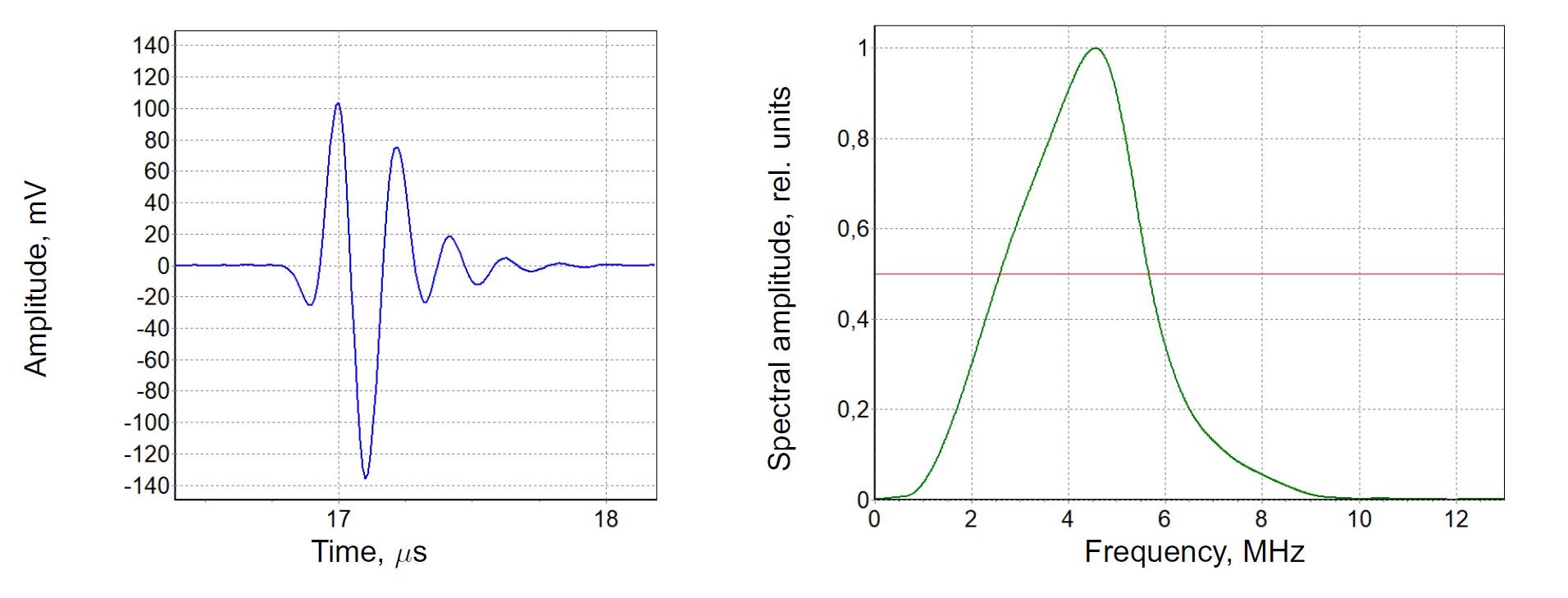

Nominal frequency 5 MHz
Effective transducer aperture diameter 8 mm
Delay time in transducer protector 0.15 s
Piezo-element electric capacity 1700 ± 100 pF
Maximum excitation pulse voltage, V ± 250 V
Operating temperature range –30...+50°C
Connector type LEMO00.250
Dimensions 36 × 18 × 16 mm
Weight 20 gr
S3373 Data Sheet
