Evaluation of concrete quality, compressive strength and homogeneity using ultrasonic pulse velocity.
UK1401 - Ultraschall-Impulsgeschwindigkeitstester
UK1401 - Ultraschall-Impulsgeschwindigkeitstester
Ein kompakter, ergonomischer, portabler Ultraschall-Impulsgeschwindigkeitstester für die Betonprüfung.
Das Gerät ist aus leichtem, stoßfestem Kunststoff und hat zwei eingebaute Prüfköpfe mit Trockenkontakt und fixem Sockel (150 mm). Die verschleißfesten Sensorspitzen sind unempfindlich gegenüber der Oberflächenbeschaffenheit. Daher sind weder der Auftrag von Koppelgel noch die Vorbereitung der Oberfläche für die Messung erforderlich.
Description

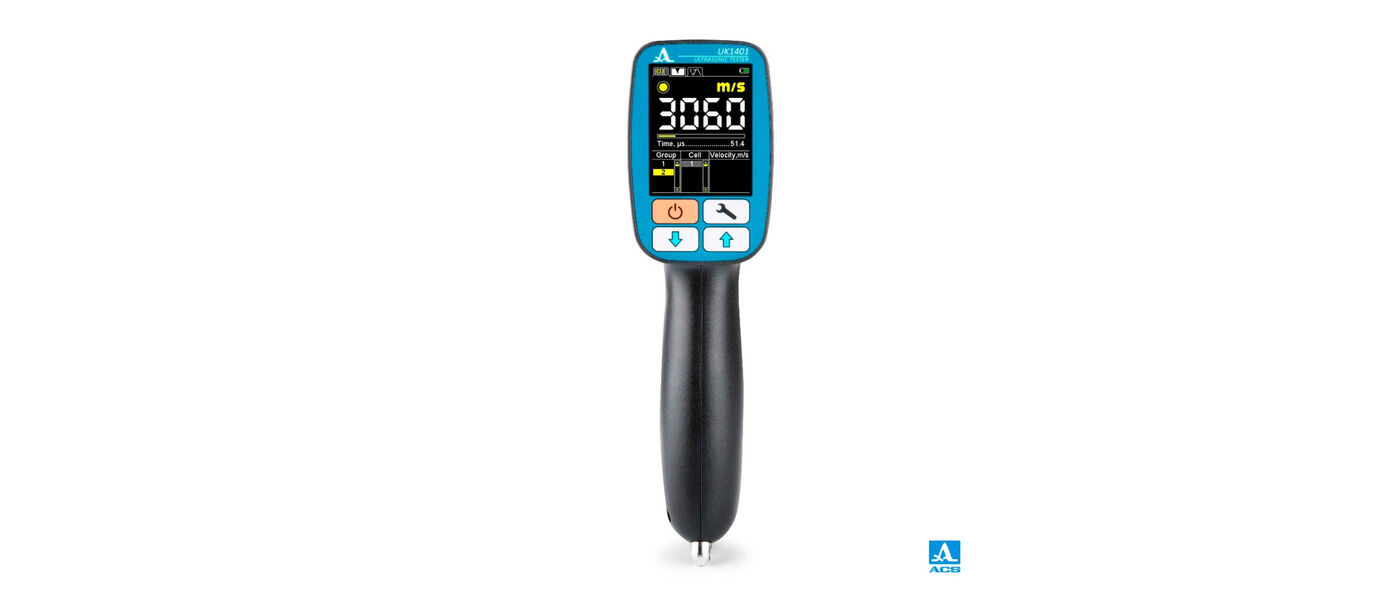

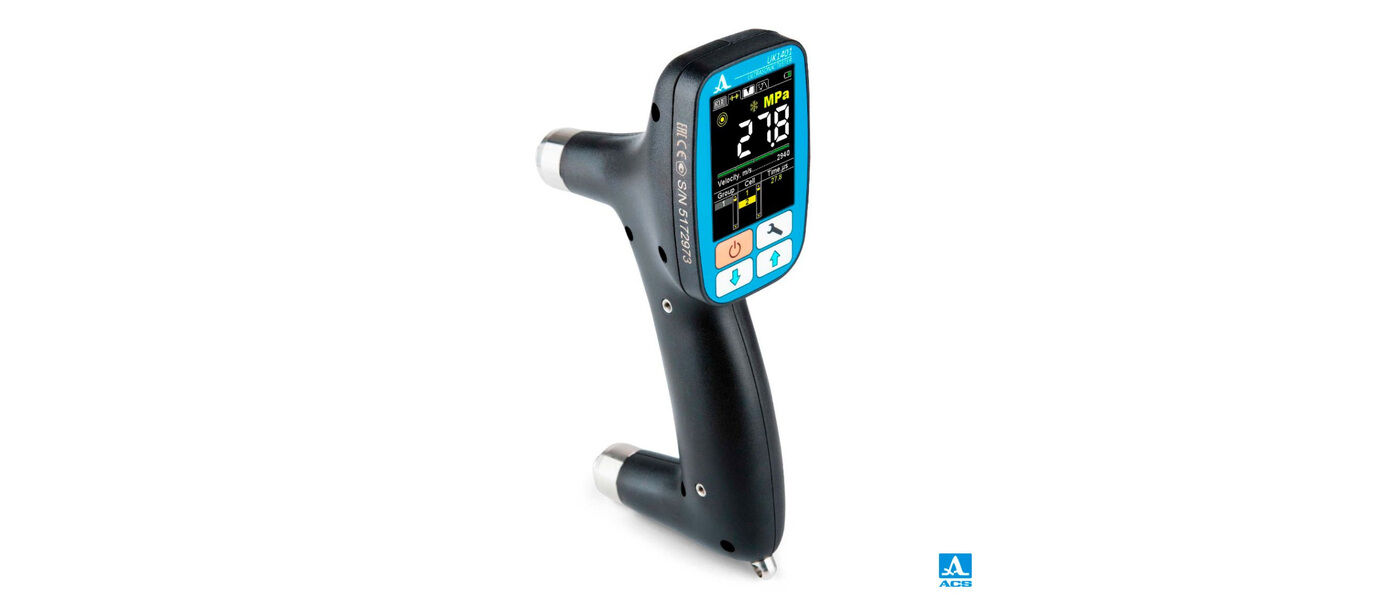

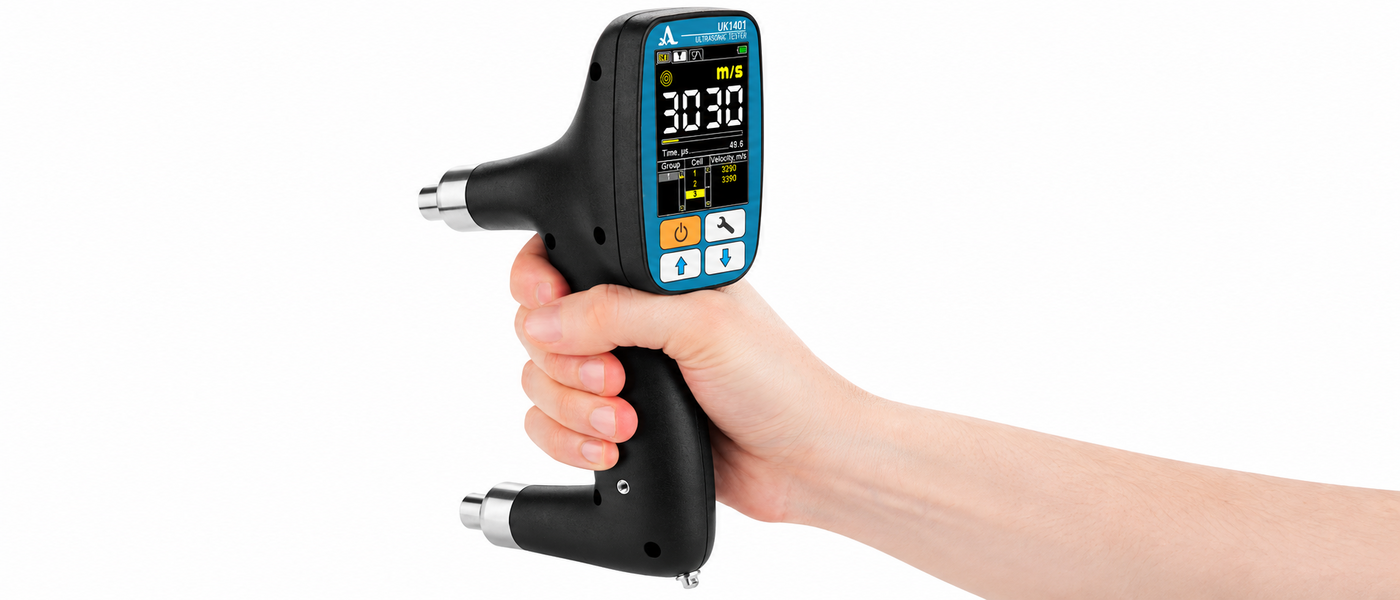

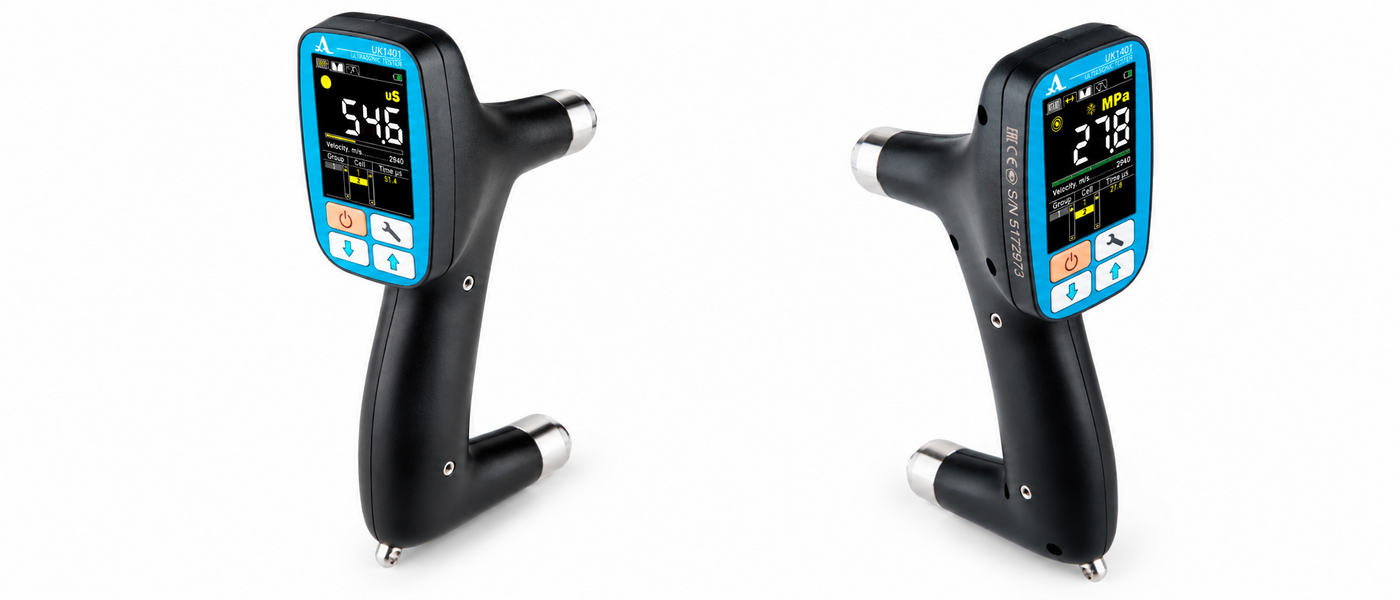

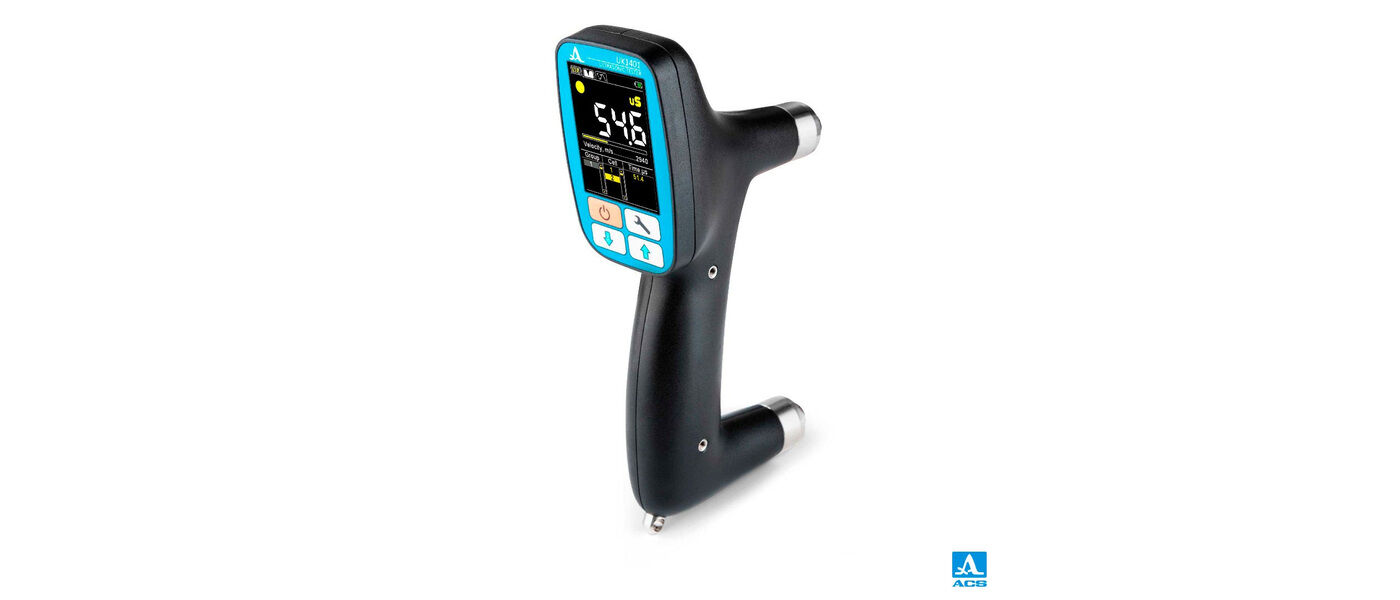

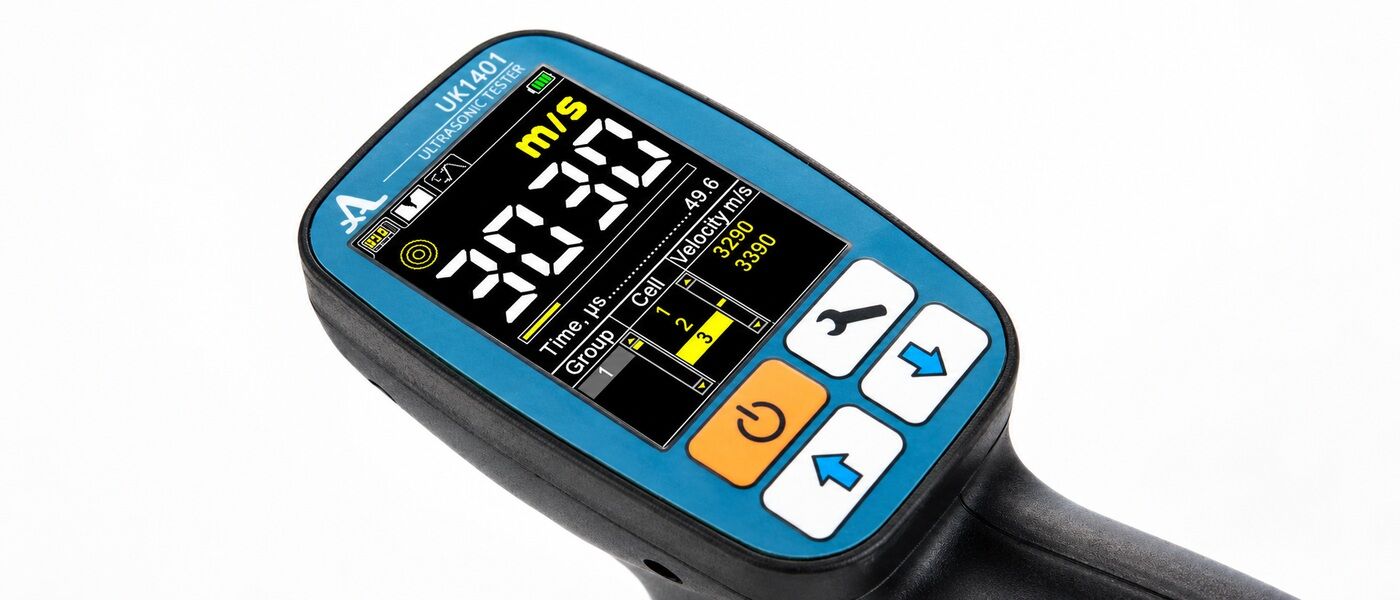

UK1401 SURFER — compact, couplant-free surface ultrasonic pulse velocity tester

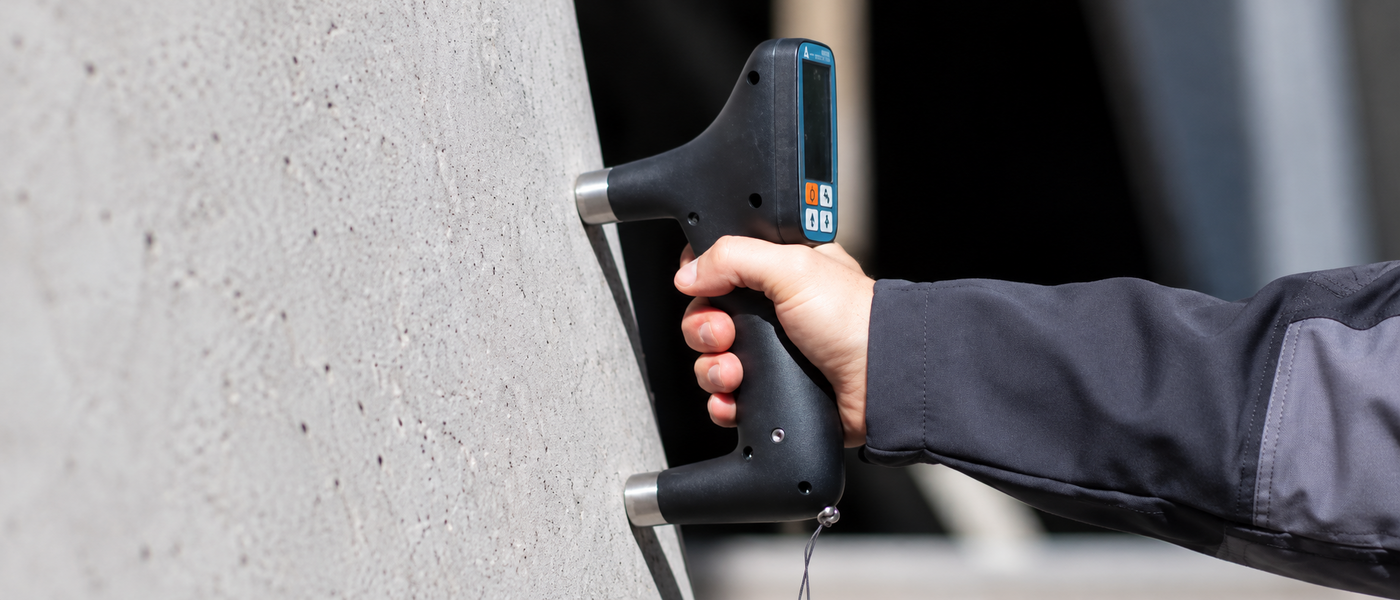

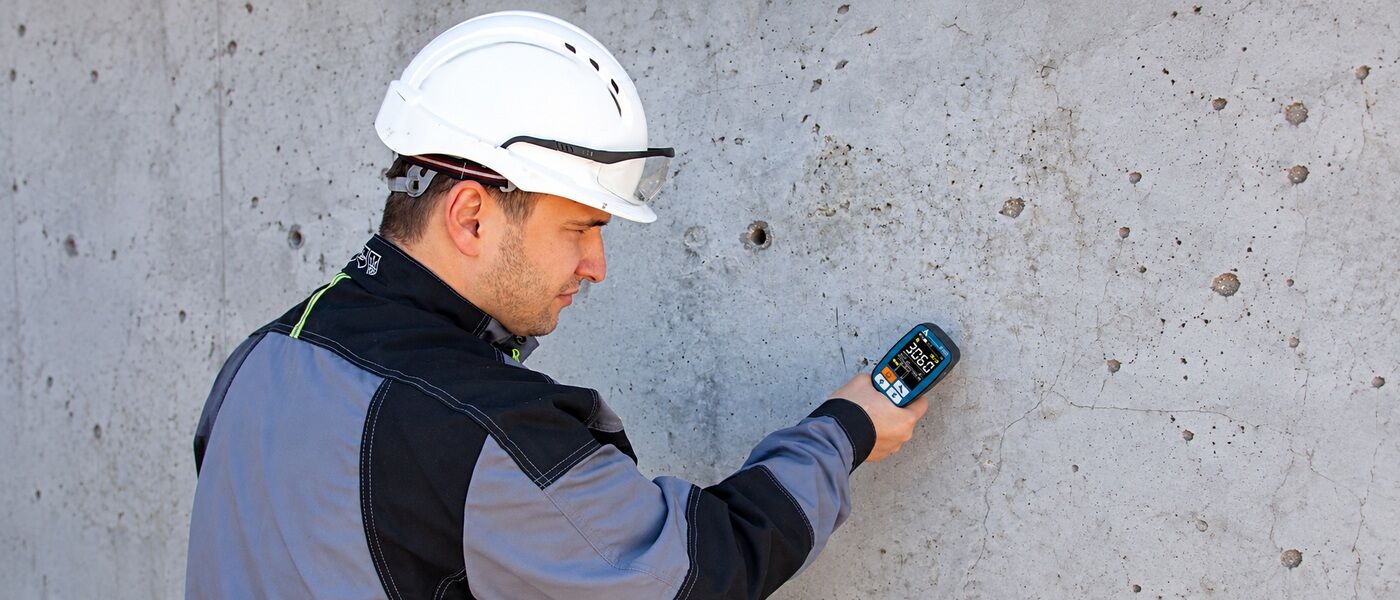

Designed for fast, one-sided concrete inspection using a fixed 150 mm measurement base and longitudinal ultrasonic waves.
-
Couplant-free testing

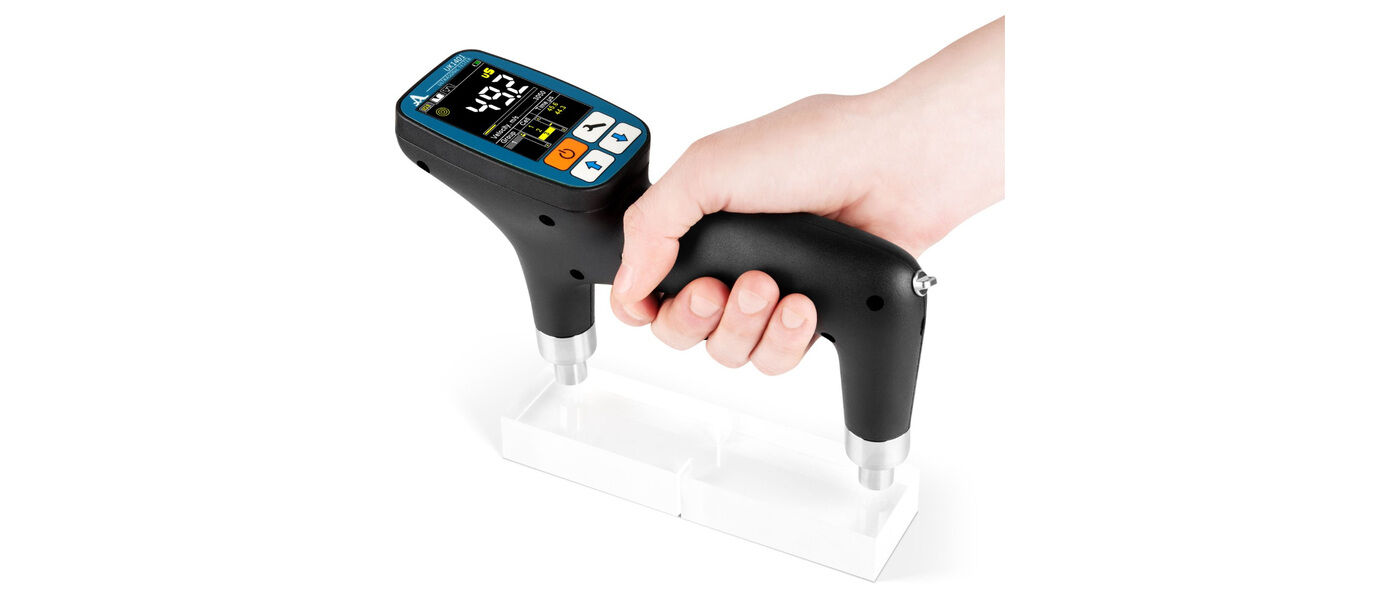

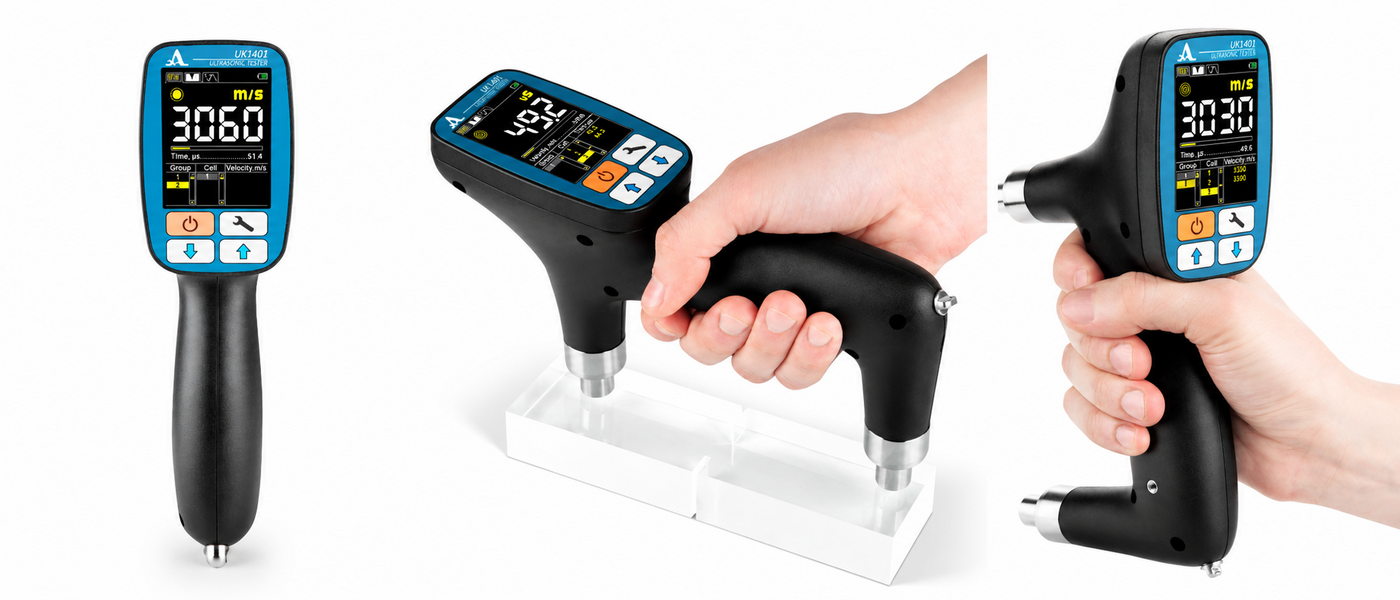

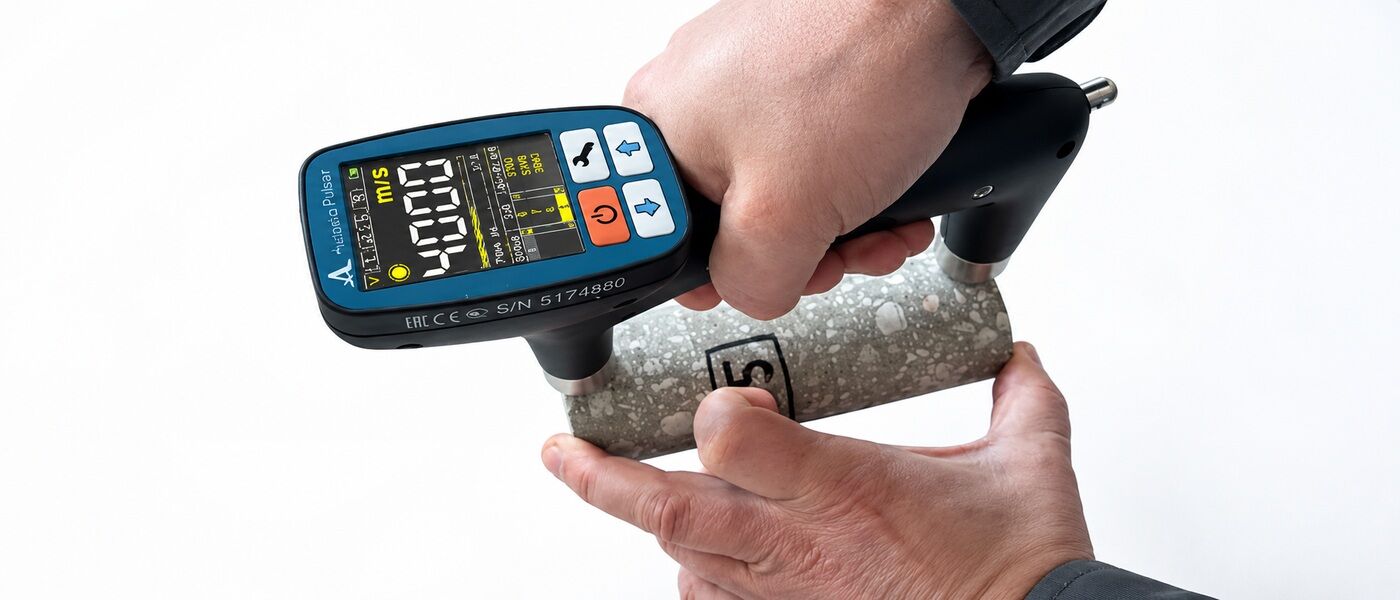

Two integrated dry-point-contact transducers with wear-resistant tips allow reliable measurements without coupling gel, even on rough concrete surfaces.
-
150 mm fixed base
Integrated transmitter and receiver enable convenient one-sided surface UPV measurements with consistent sensor spacing.
-
50 kHz P-waves
Measures the transit time and velocity of longitudinal ultrasonic waves for non-destructive concrete assessment.
-
Crack depth estimation
Indirect surface measurements help estimate the depth of surface-opening cracks within a specified range of 10–50 mm.
-
50,000 measurements
Built-in non-volatile memory supports grouped measurement results and USB data transfer to a computer.
-
Compact and field-ready
Lightweight handheld design, approximately 350 g, with up to 15 hours of battery operation for practical on-site inspection.
Applications
Reliable surface UPV measurements for a wide range of concrete testing tasks

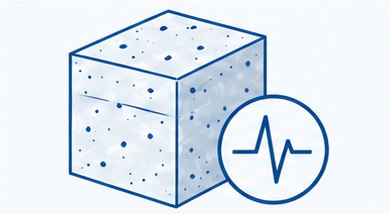

Concrete Quality
Material Anisotropy
Assessment

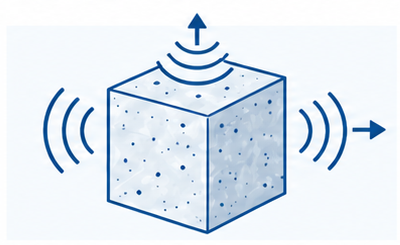

Assessment of material anisotropy by comparing ultrasonic pulse velocity measured in different directions.
Crack Depth
Estimation

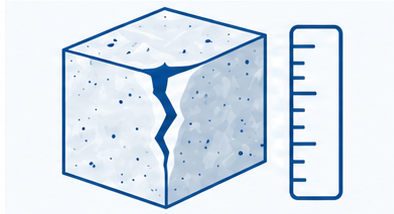

Estimation of the depth of surface-opening cracks using indirect UPV methods.
Concrete Curing
Monitoring

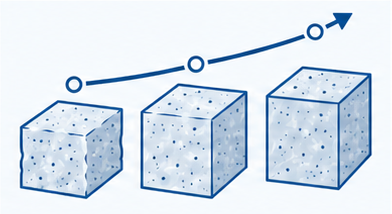

Monitoring of changes in ultrasonic pulse velocity during concrete curing and hardening.
Specification
Spezifikationen
| Scan-Basis |
150 mm |
|---|---|
| Zeitmessbereich: |
15 – 100 μs |
| Messbereich der Geschwindigkeitsmessung: |
1500 bis 9990 m/c |
| Messbereich der Risstiefe |
10 bis 50 mm |
| Arbeitsfrequenz |
50 kHz |
| Pulswiederholfrequenz |
5 – 25 kHz |
| Anzahl Objekte im Speicher |
4000 |
| Betriebstemperaturbereich |
-20 °C bis +45 °C |
| Betriebszeit im Batteriebetrieb |
100 Std |
| Größe |
199 х 120 х 34 mm |
| Gewicht der elektronischen Steuereinheit |
350 g |

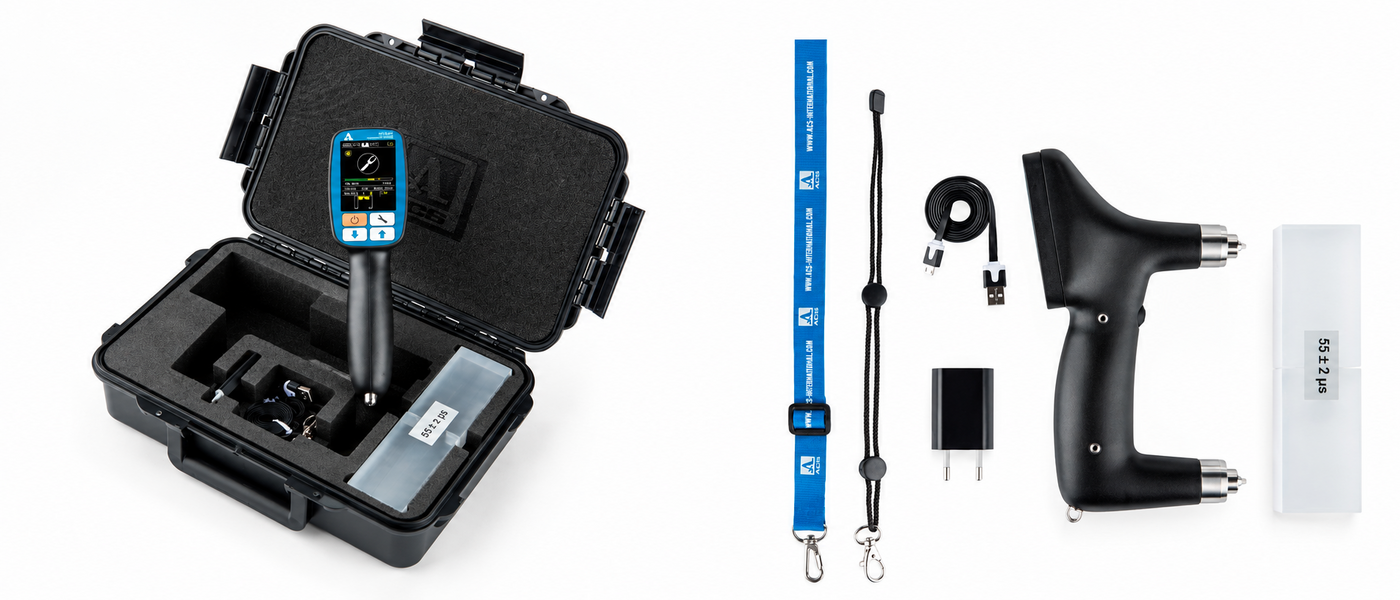

Delivery kit

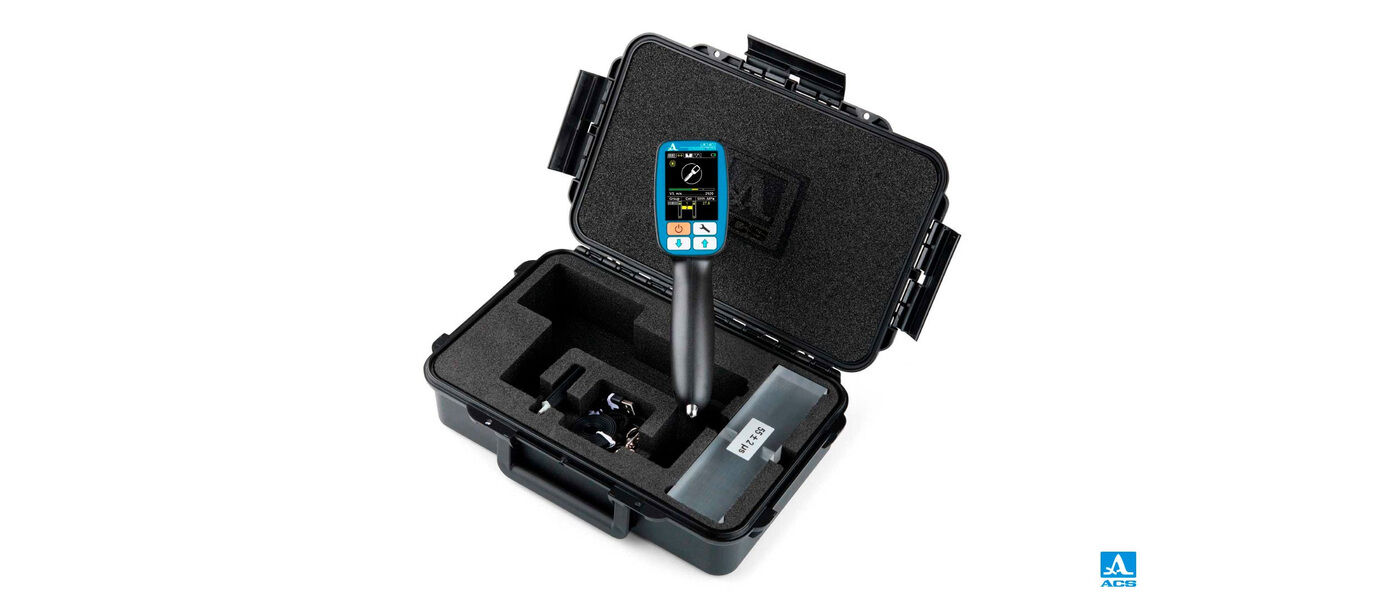

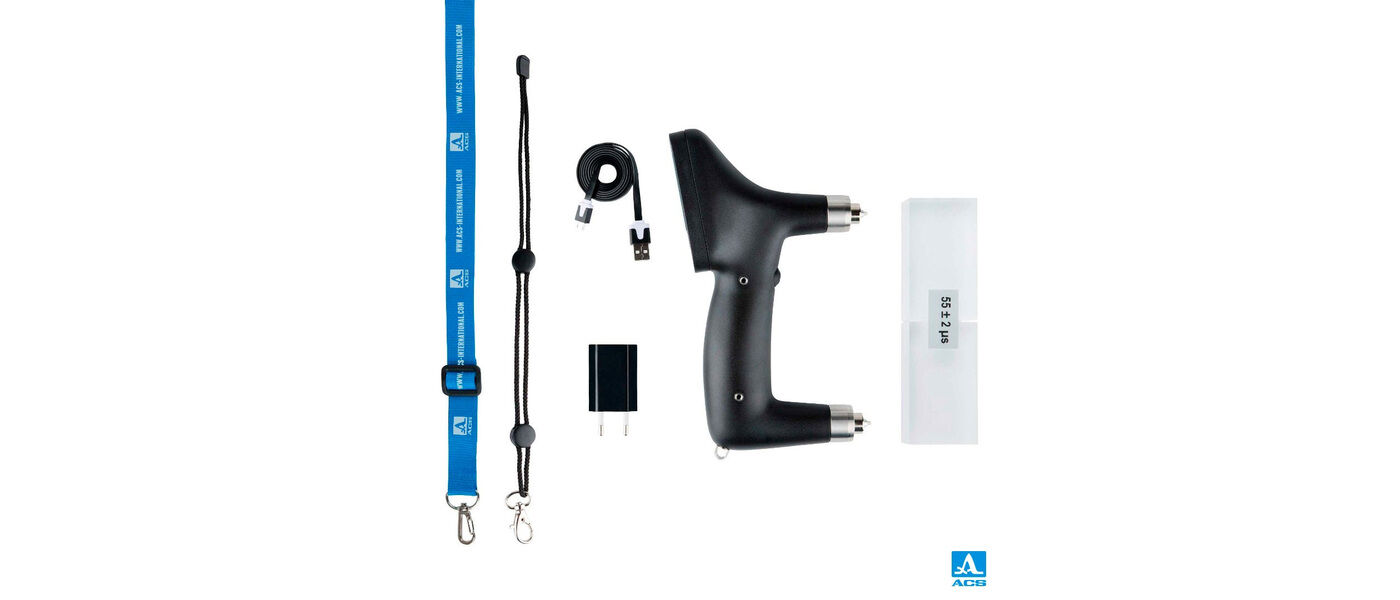

UK1401 – ultrasonic tester
USB A – Micro B cable
USB adapter for 220V
Checking sample
Case
UK1401 – ultrasonic tester
USB A – Micro B cable
USB adapter for 220V
Checking sample
Case
