Evaluation of concrete quality, compressive strength and homogeneity using ultrasonic pulse velocity.
UK1401 - Ultraschall-Impulsgeschwindigkeitstester
UK1401 - Ultraschall-Impulsgeschwindigkeitstester
Ein kompakter, ergonomischer, portabler Ultraschall-Impulsgeschwindigkeitstester für die Betonprüfung.
Das Gerät ist aus leichtem, stoßfestem Kunststoff und hat zwei eingebaute Prüfköpfe mit Trockenkontakt und fixem Sockel (150 mm). Die verschleißfesten Sensorspitzen sind unempfindlich gegenüber der Oberflächenbeschaffenheit. Daher sind weder der Auftrag von Koppelgel noch die Vorbereitung der Oberfläche für die Messung erforderlich.
Description

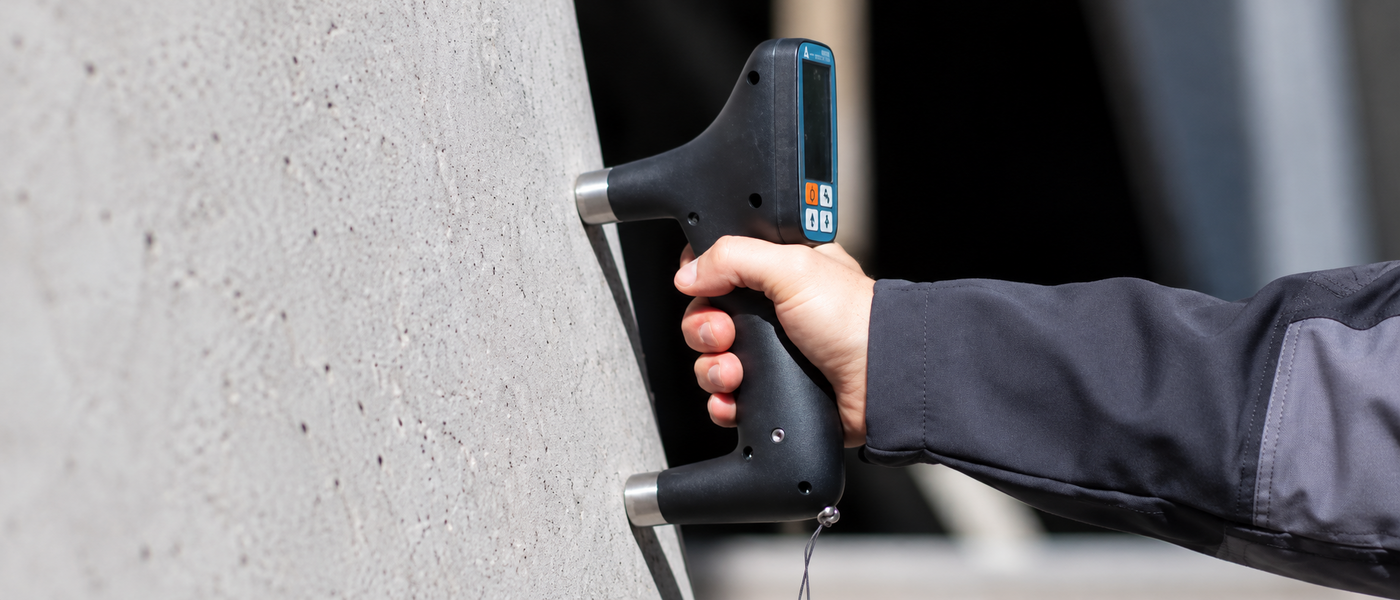

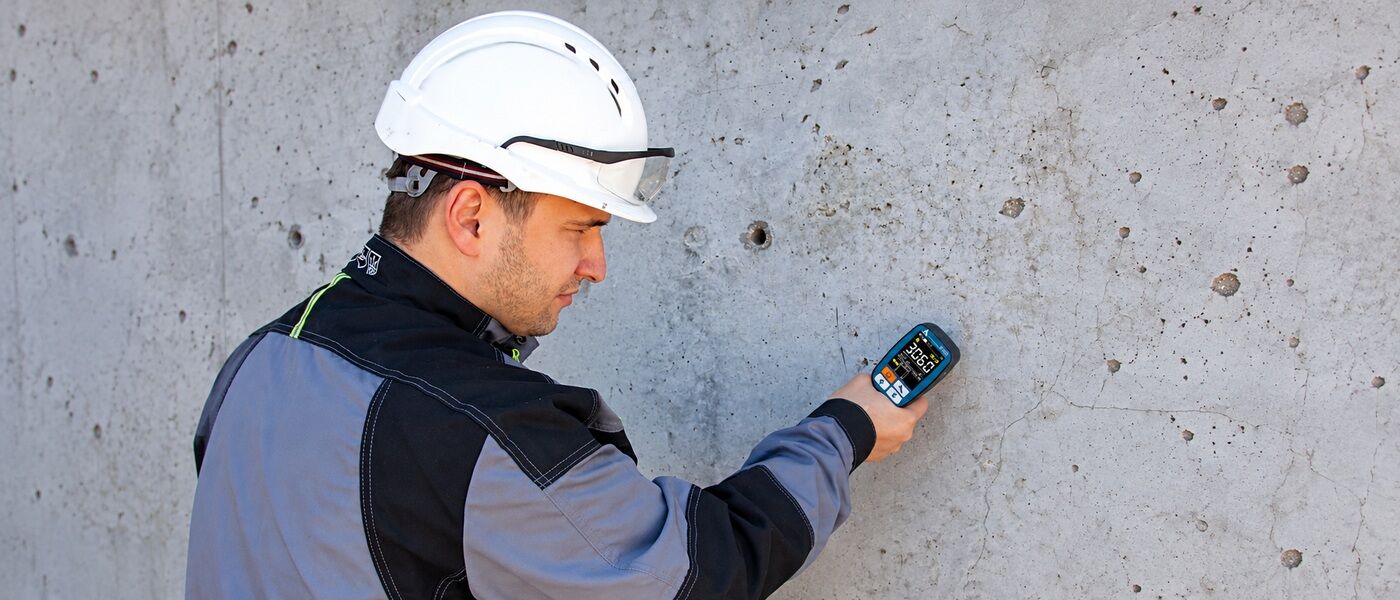

A compact, ergonomic and handheld ultrasonic pulse velocity tester for quality assessment of concrete.
The device is made of light-weight shockproof plastic and has two built-in transducers with dry-point-contact with fixed base (150 mm).Wear resistant tips of the transducers are insensitive to the surface condition. Hence, there is no need to apply coupling gel or to prepare object surface for testing.
The device has sound indication when ultrasonic signals are being received, non-volatile memory allowing storing of 50000 measurements(the results can be grouped) and USB port for transferring of the saved data to the external PC.
A compact, ergonomic and handheld ultrasonic pulse velocity tester for quality assessment of concrete.
The device is made of light-weight shockproof plastic and has two built-in transducers with dry-point-contact with fixed base (150 mm).Wear resistant tips of the transducers are insensitive to the surface condition. Hence, there is no need to apply coupling gel or to prepare object surface for testing.
The device has sound indication when ultrasonic signals are being received, non-volatile memory allowing storing of 50000 measurements(the results can be grouped) and USB port for transferring of the saved data to the external PC.
Applications
Reliable surface UPV measurements for a wide range of concrete testing tasks

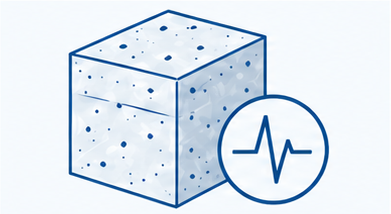

Concrete Quality
Material Anisotropy
Assessment

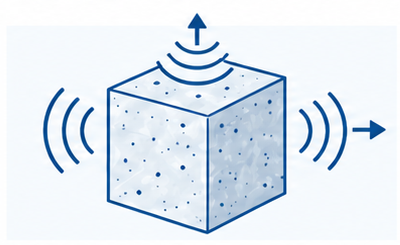

Assessment of material anisotropy by comparing ultrasonic pulse velocity measured in different directions.
Crack Depth
Estimation

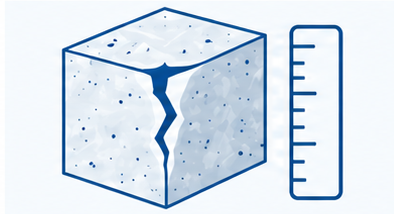

Estimation of the depth of surface-opening cracks using indirect UPV methods.
Concrete Curing
Monitoring

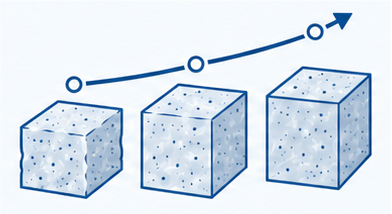

Monitoring of changes in ultrasonic pulse velocity during concrete curing and hardening.
Specification
Spezifikationen
| Scan-Basis |
150 mm |
|---|---|
| Zeitmessbereich: |
15 – 100 μs |
| Messbereich der Geschwindigkeitsmessung: |
1500 bis 9990 m/c |
| Messbereich der Risstiefe |
10 bis 50 mm |
| Arbeitsfrequenz |
50 kHz |
| Pulswiederholfrequenz |
5 – 25 kHz |
| Anzahl Objekte im Speicher |
4000 |
| Betriebstemperaturbereich |
-20 °C bis +45 °C |
| Betriebszeit im Batteriebetrieb |
100 Std |
| Größe |
199 х 120 х 34 mm |
| Gewicht der elektronischen Steuereinheit |
350 g |
Delivery kit
UK1401 – ultrasonic tester
USB A – Micro B cable
USB adapter for 220V
Checking sample
Case
UK1401 – ultrasonic tester
USB A – Micro B cable
USB adapter for 220V
Checking sample
Case
