Concrete Quality
Assessment
Evaluation of concrete quality, compressive strength and homogeneity using ultrasonic pulse velocity.
A1410 PULSAR
A1410 PULSAR

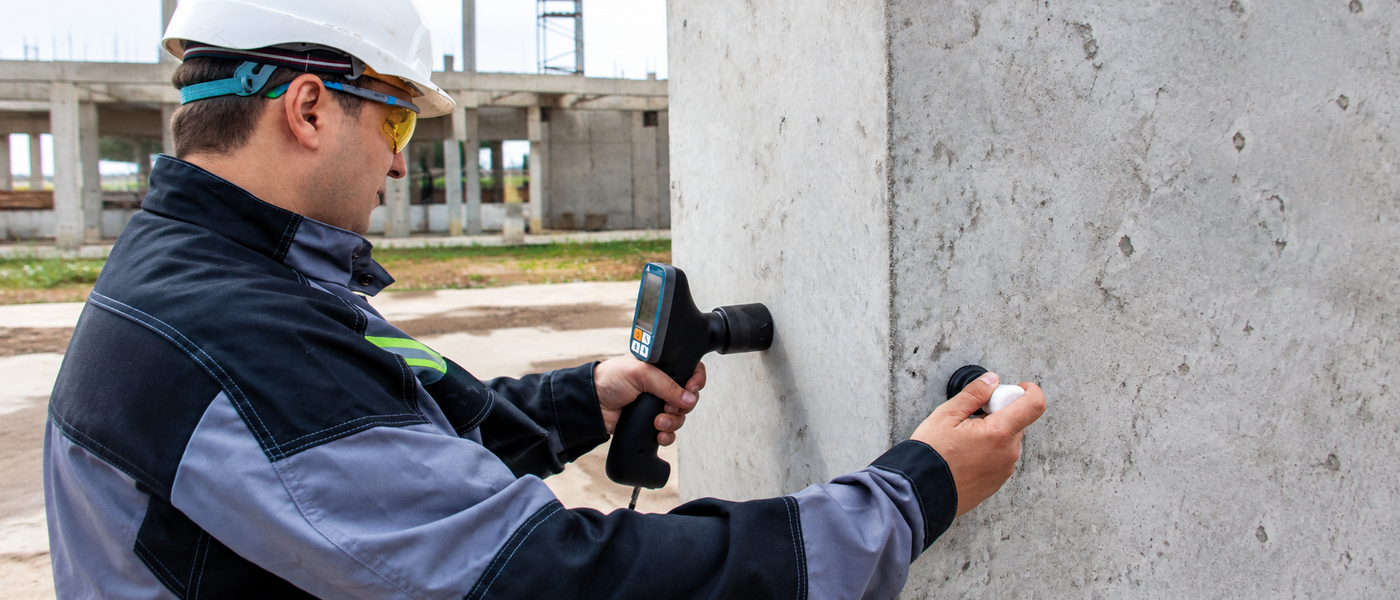

The world-first ultrasonic pulse velocity testing instrument for couplant-free on-site quality assessment of concrete structures with up to 2 meters thru-transmission capability.
Description

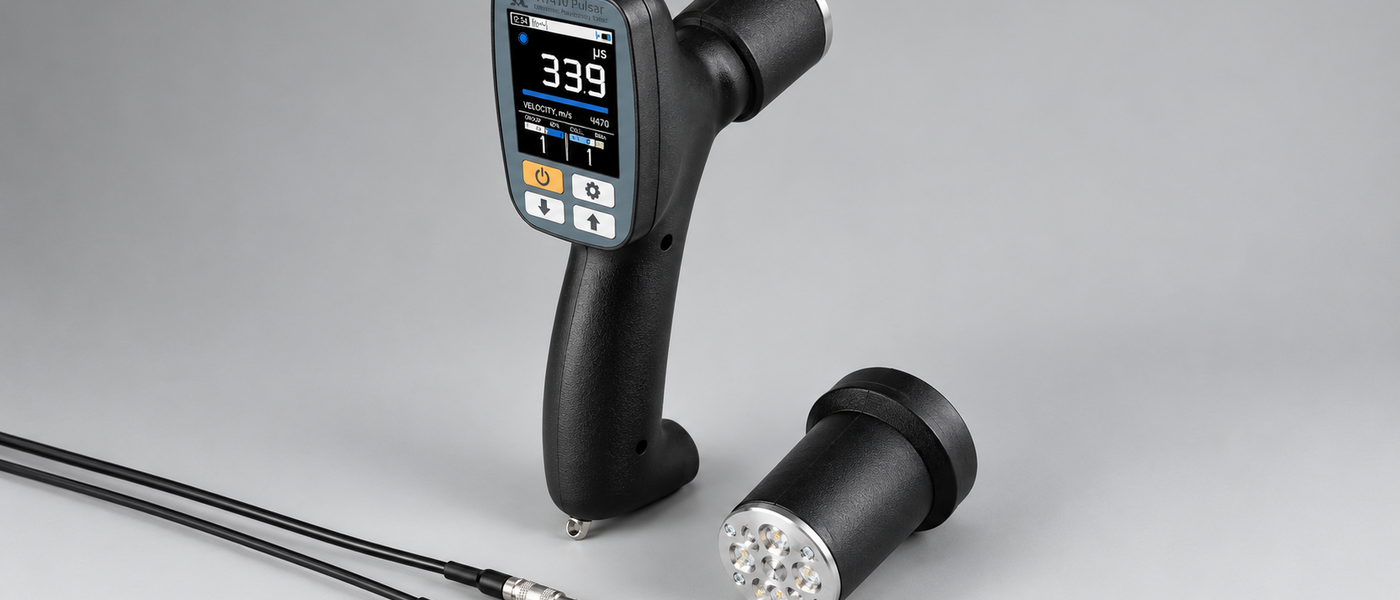

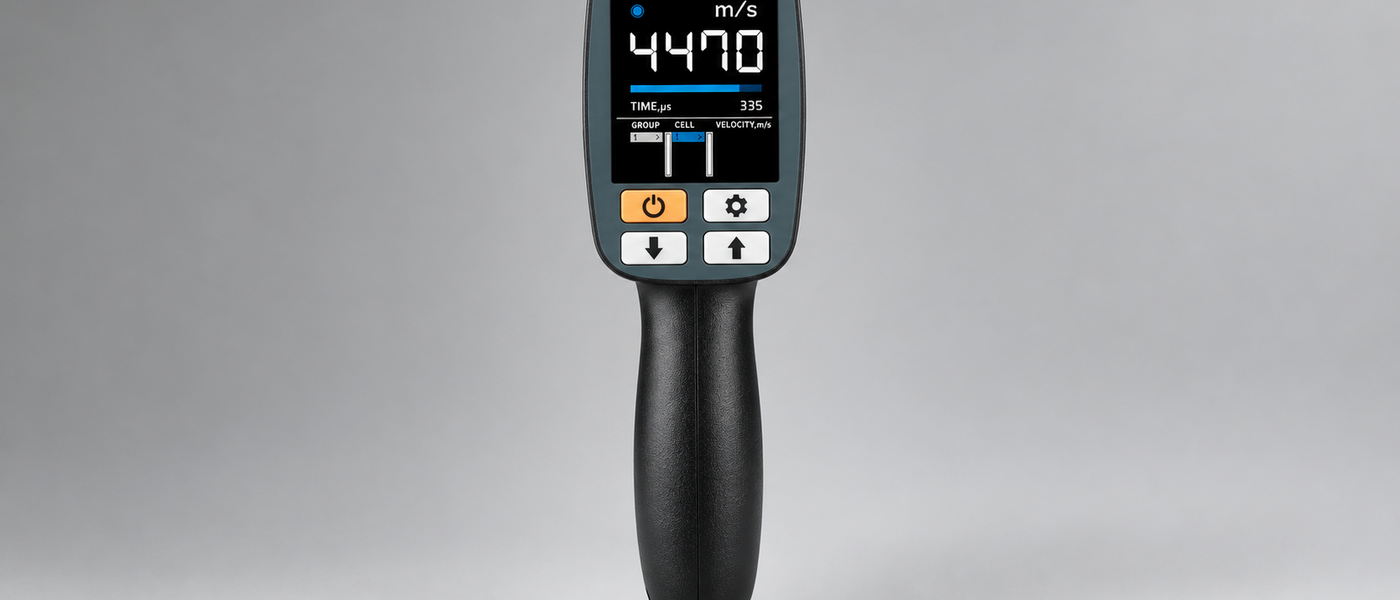

A compact, ergonomic and easy to handheld ultrasonic pulse velocity tester for quality assessment of concrete compliant with valid international standards.

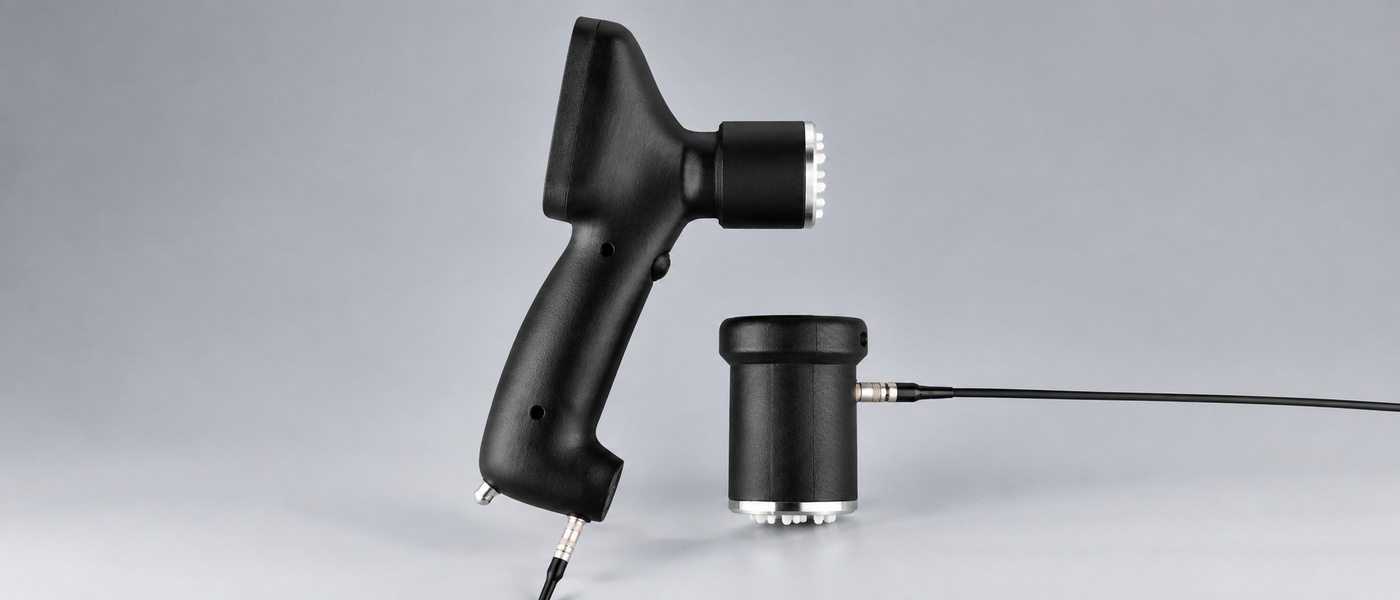

The instrument is made of light-weight shockproof plastic and operates two dry-point-contact transducer arraysfor through-transmitting up to 2 meters of concrete. Wear resistant wearproof ceramic tips of the transducers are insensitive to the surface condition and allow comfortable and robust operation on site by arbitrary surface condition. Hence, there is no need to apply coupling gel to prepare object surface for testing.
The device possesses non-volatile memory allowing storing of 50.000 measurements(the results can be grouped) and USB port for transferring measured data to the external PC.
A compact, ergonomic and easy to handheld ultrasonic pulse velocity tester for quality assessment of concrete compliant with valid international standards.
The instrument is made of light-weight shockproof plastic and operates two dry-point-contact transducer arraysfor through-transmitting up to 2 meters of concrete. Wear resistant wearproof ceramic tips of the transducers are insensitive to the surface condition and allow comfortable and robust operation on site by arbitrary surface condition. Hence, there is no need to apply coupling gel to prepare object surface for testing.
The device possesses non-volatile memory allowing storing of 50.000 measurements(the results can be grouped) and USB port for transferring measured data to the external PC.
Applications
Reliable UPV measurements for a wide range of concrete testing tasks
Concrete Quality
Crack Depth
Estimation
Estimation of the depth of surface-opening cracks using indirect UPV methods.

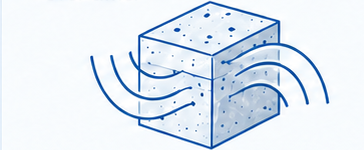

Material Uniformity
& Structural Assessment
Detection of inhomogeneities, voids and local defects. Comparison of UPV values for condition assessment and monitoring over time.

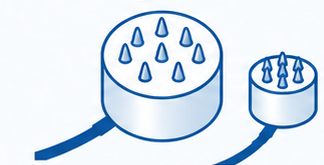

Flexible DPC
Transducers
Use of dry-point-contact (DPC) transducers for reliable measurements on rough, uneven or vertical surfaces without couplant. Ideal for field and on-site testing.
Wide Range of Materials
Concrete, stone, masonry, ceramics, wood, plastics, composites and more.
Compact & Lightweight
Ergonomic handheld design for easy and fast on-site testing.
Simple Operation
Intuitive user interface for efficient testing in the field and in the lab.
Data Storage & Transfer
Store up to 50,000 measurements (organized in groups) with USB port for data transfer to a PC.
Reliable & Robust
Shockproof design for daily use in harsh environments.
Specification
Spezifikationen
| Type of ultrasonic transducers |
Undamped DPC transducers |
|---|---|
| Transducer configuration |
Array of 7 x DPC transducers, daisy wheel pattern |
| Operating frequency, kHz |
50 |
| Set delay range, µs |
0 to 20 |
| Adjustable range of the base size, mm |
50 to 2500 |
| Automatic Gain Control (AGC) |
switchable |
| Maximum thickness of the inspection object, m |
2.5 |
| Indication resolution of the propagation time of ultrasonic waves, µs |
0.1 |
| Indication resolution of the propagation velocity of ultrasonic waves, m/s |
10 |
| Rated supply voltage, V |
3.3 |
| Operation time with battery, not less than, hours |
16 |
| Display |
2,8”, 320×240 pixel |
| Overall dimensions of the electronic unit, mm., max. |
230×125×65 |
| Weight of the electronic unit, gr., max. |
420 |
| Mean time between failures, hours |
18,000 |
| Regular service life, years |
5 |

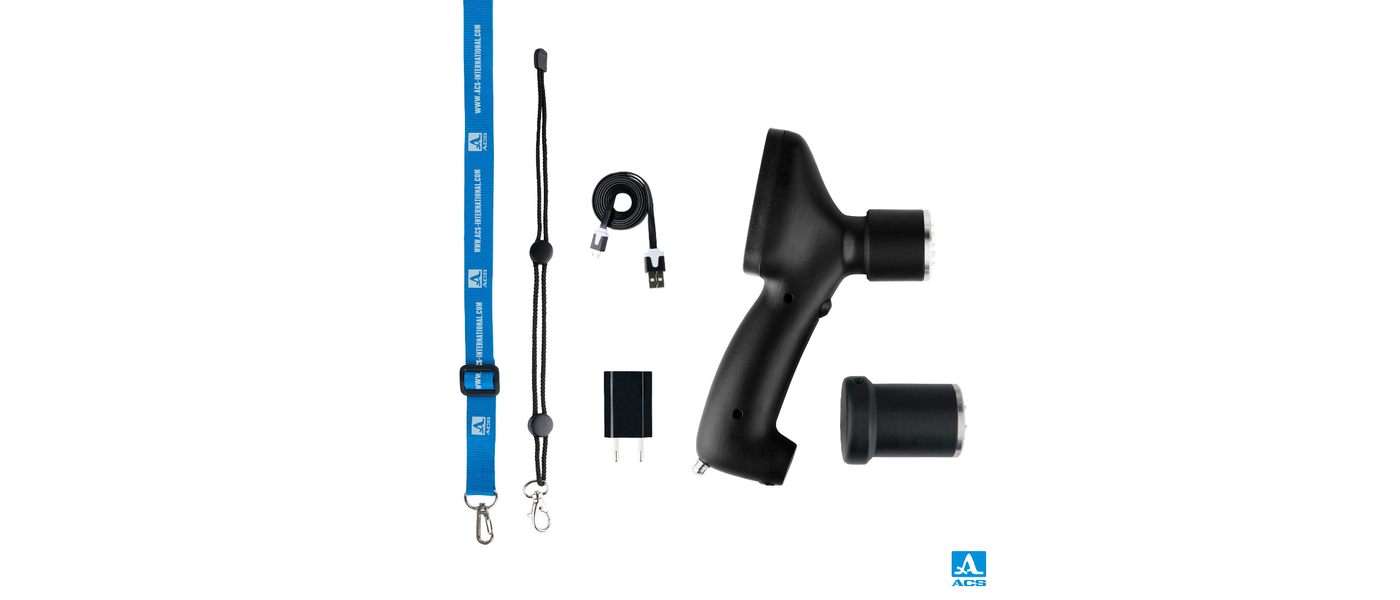

Delivery kit
Electronic unit of the Ultrasonic pulse velocity tester A1410 Pulsar
Antenna array M1001 0.05A0D25PL
LEMO-LEMO single cable 3 m
Adapter 220 V – USB
Cable USB A – Micro B
Test sample

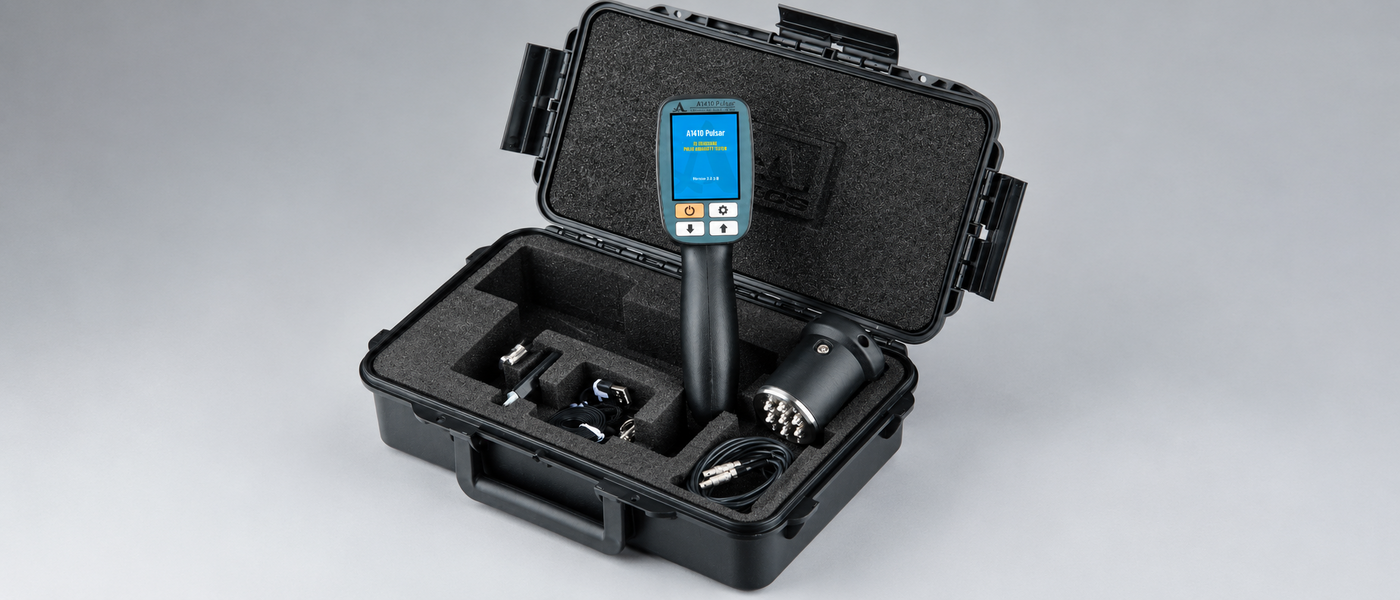

Hard case
Warranty certificate
Operation Manual
Electronic unit of the Ultrasonic pulse velocity tester A1410 Pulsar
Antenna array M1001 0.05A0D25PL
LEMO-LEMO single cable 3 m
Adapter 220 V – USB
Cable USB A – Micro B
Test sample
Hard case
Warranty certificate
Operation Manual
