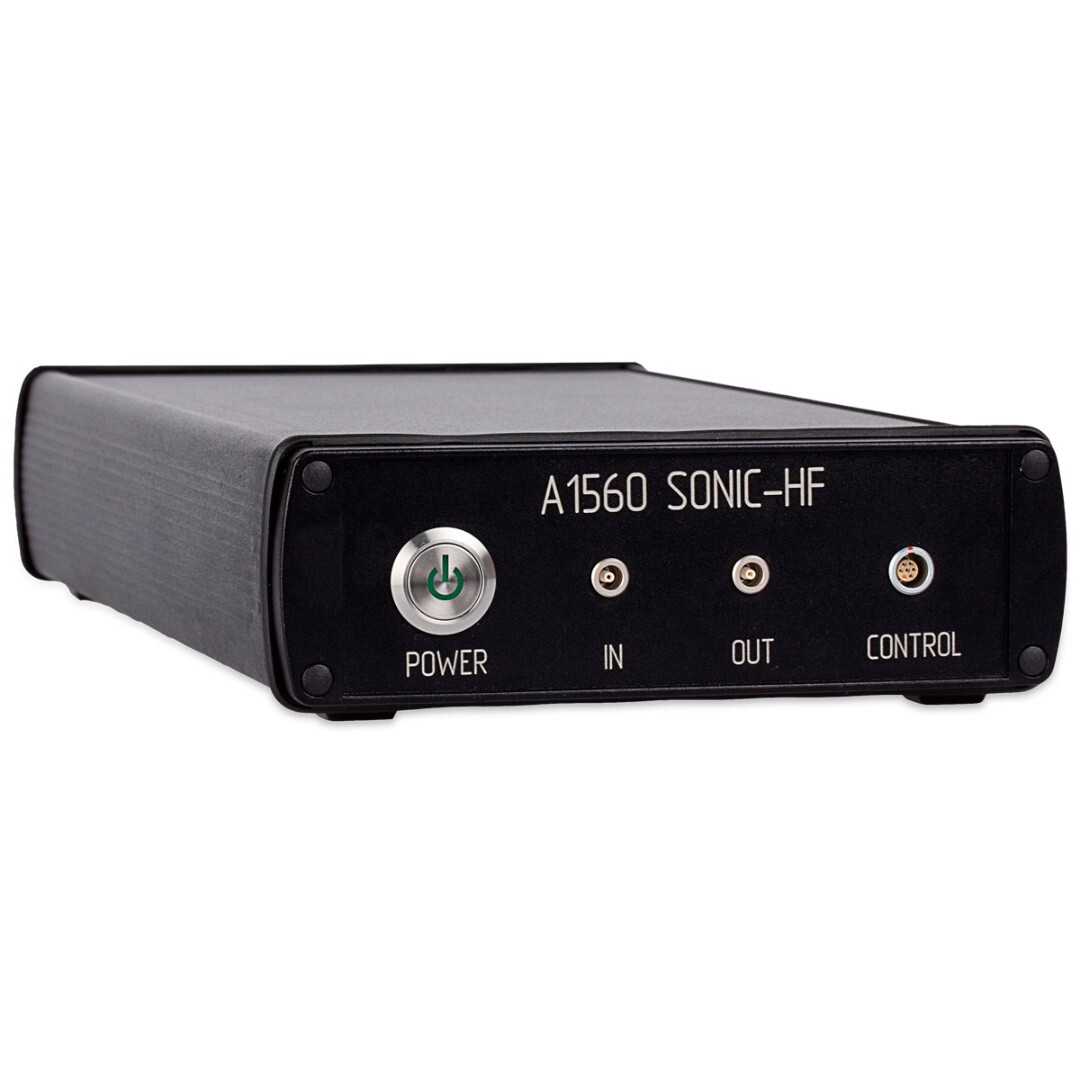

A1560 Sonic-HF

Universal OEM Ultrasonic Pulser-Receiver Electronic Frontend / Flaw Detector with Wireless Data Interface for High-Frequency applications

A high-end data acquisition unit designed for stand-alone and integrated use in laboratory and industrial measurement and testing applications. The pulser and receiver of A1560 are dedicated to driving the widest range of piezo-electric transducers with contact and immersion coupling. The instrument possesses an integrated accumulator and wireless data transfer function.

With the well-documented SDK, the user can develop his own software application for a particular inspection task.

A1560 SONIC-LHF is dedicated for high-frequency ultrasonic data acquisition applications on metals, composite materials and plastics, such as:

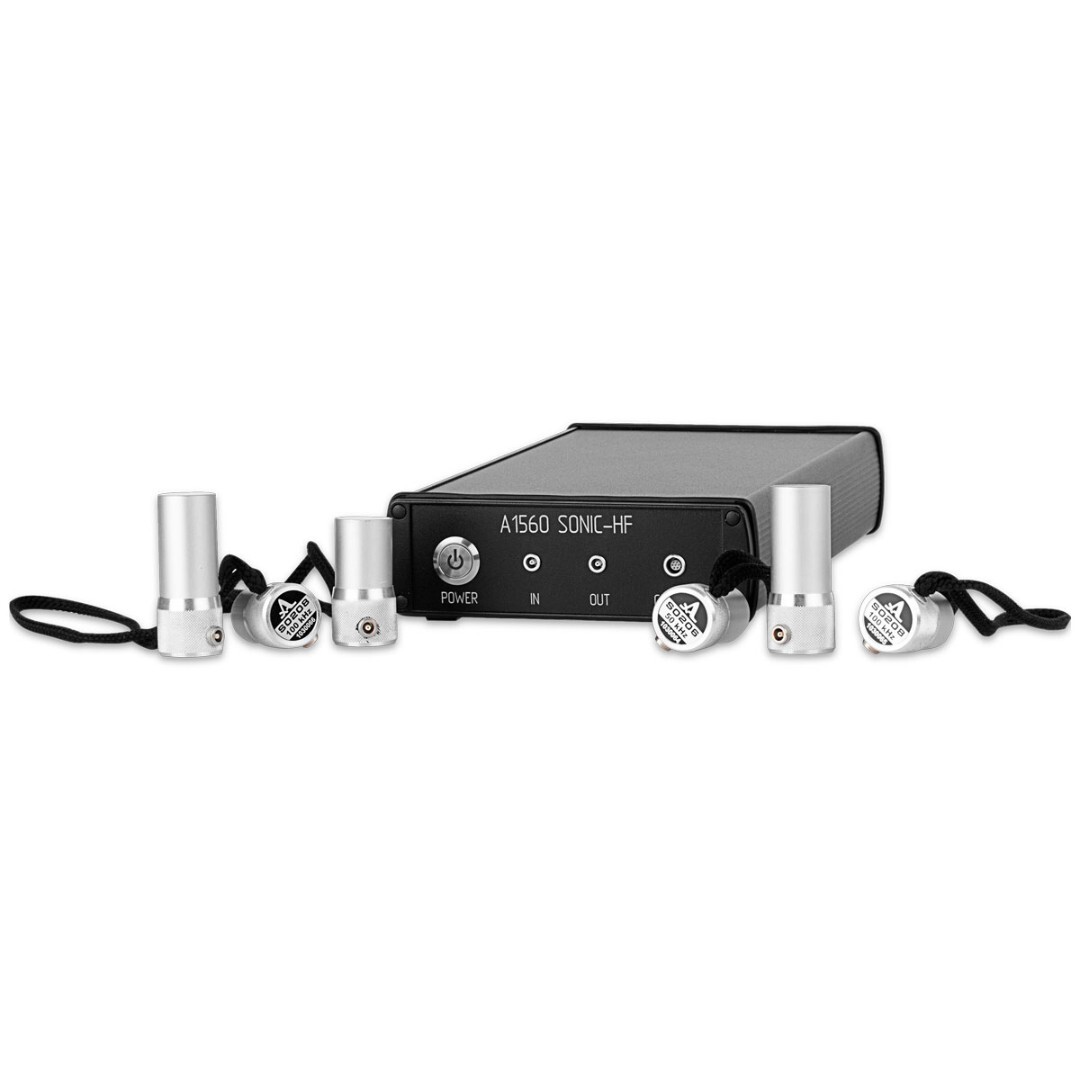

  • Pulse-echo data acquisition with single-crystal and dual-crystal transducers
  • Position-related data acquisition synchronized with external inspection manipulator
TRANSMITTER
Transmitter output voltage, V 200 V
RECEIVER
Length of the data acquisition vector, Samples 128k
POWER SUPPLY
Embedded power source Built-in battery
DIMENSIONS & WEIGHT
Dimensions of the electronic block 320 х 165 х 55 mm

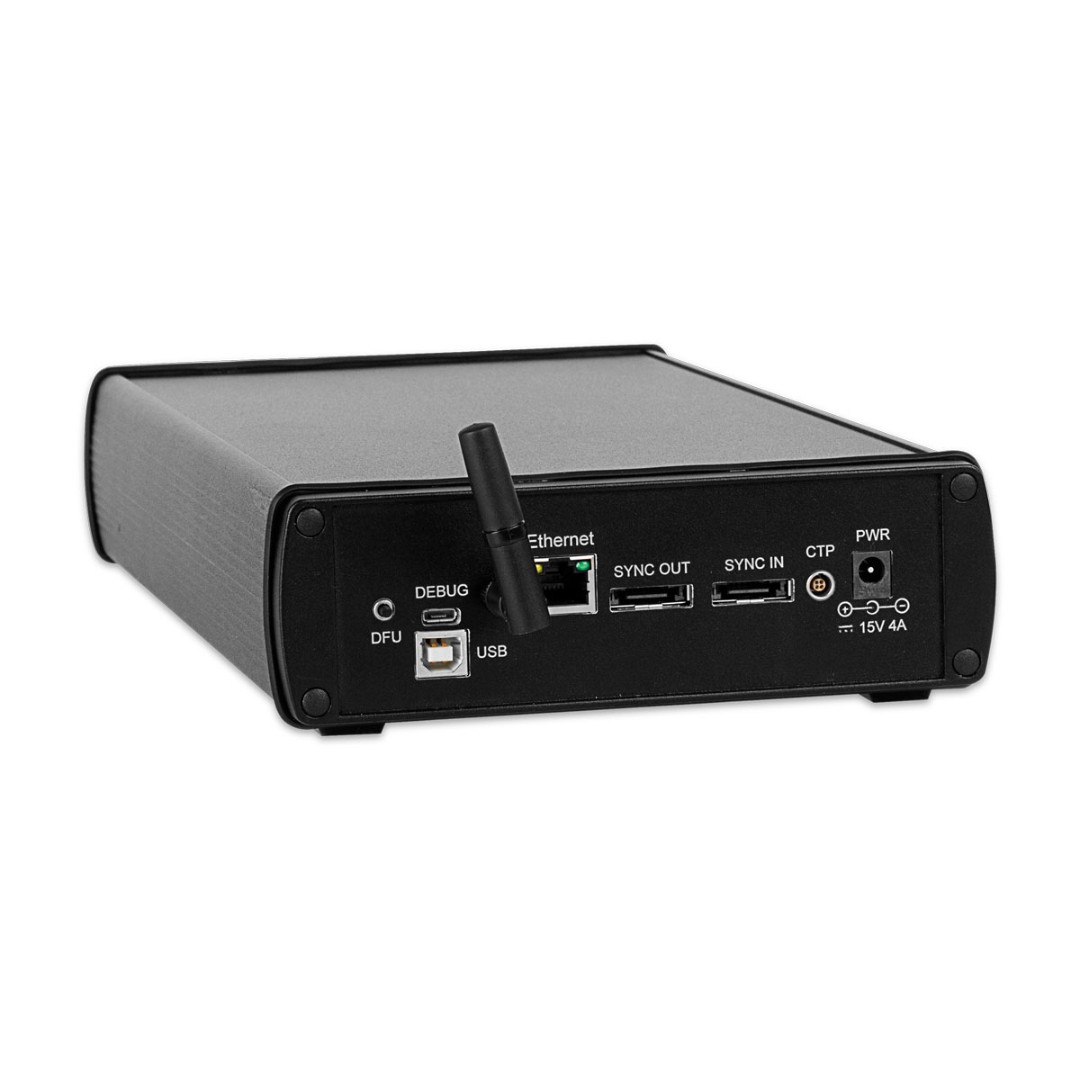

DATA INTERFACES
Wireless Ethernet 54 Mbit IEE802.11n
Name Quantity, pcs.
A1560 Sonic HF – Electronic Unit 1
Net adaptor with cable 220V-15V 1
Ethernet cable 1.5 meter 1
WiFi Antenne 1
User manual for integration kit (SDK) 1
Introductory application software „ACS "Mathilda" Windows GUI App“ (available at www.acs-international.com) 1
