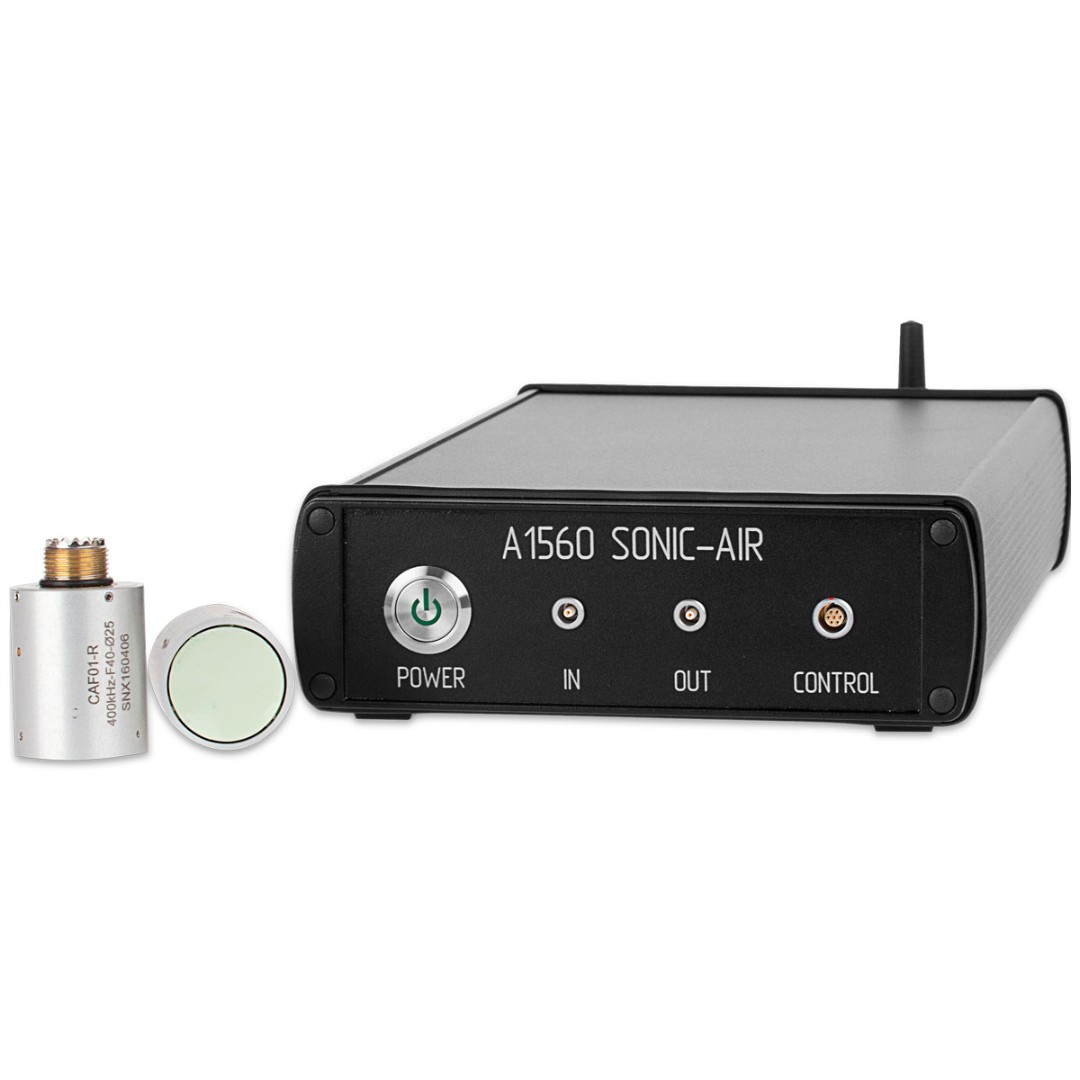

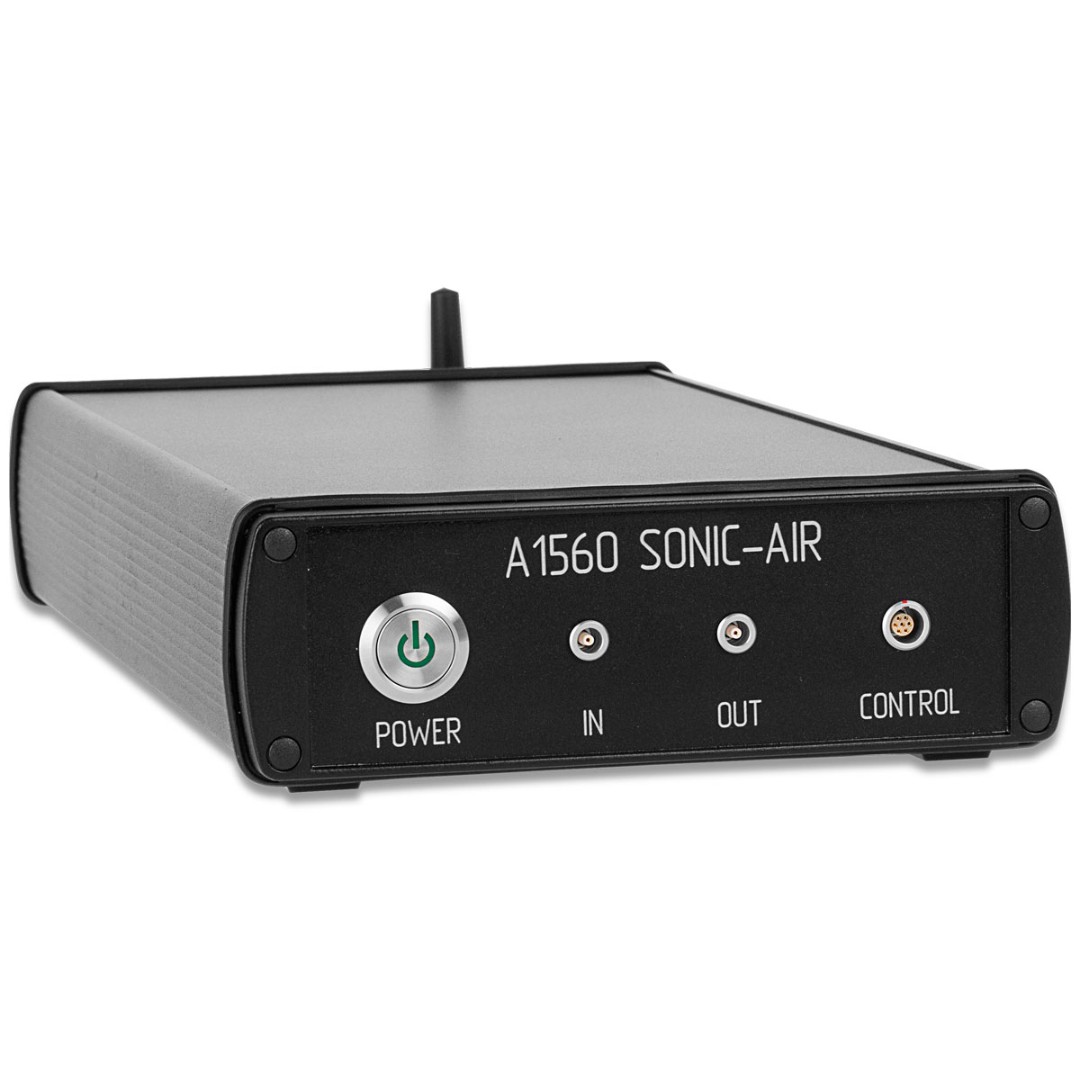

A1560 Sonic-AIR

Universal OEM Ultrasonic Pulser-Receiver Electronic Frontend / Flaw Detector with Wireless Data Interface for Air-Coupled Ultrasonics

Einkaufsquellen

A high-end data acquisition unit designed for system integration in laboratory and industrial measurement and testing applications. The pulser and received of A1560 is perfectly suitable for wide range of air-coupled piezo-electric transducers. The instrument possesses integrated accumulator and wireless data transfer function.

With the well documented SDK the user is enabled to develop his own software application for particular inspection task.

A1560 SONIC-AIR is dedicated for air-coupled ultrasonic data acquisition applications on metals, composite materials and plastics, such as:

  • Through-transmission
  • One-side access transmission with guided waves
TRANSMITTER
Transmitter output voltage for adjustable transmitter frequency, V 200 V
Alternative: Transmitter output voltage for fixed transmitter frequency, V 800 V
Excitation sequence Meander, 0.5 to 5.0 periods
Pulse repitition rate, Hz 1 – 1.000 Hz
RECEIVER
Length of the data acquisition vector, Samples 128k
Sampling rate (MHz) 10, 25, 50, 100
Filter frequencies (FIR) HF 10,20,40,100kHz; LF 750kHz
Receiving bandwidth 10 – 750 kHz
Dynamic range of amplifier, dB 0 to 80
Dynamic range of attenuator, dB - 20 to 0
Gain setup range from 0 to 100 dB, step 1 dB
The quantity of the programmable points of DAC function 128k
Dynamic range of DAC function 40 dB
Averaging factor 1 to 256
POWER SUPPLY
Embedded power source Built-in battery
Operation time of the battery (non-stop operation with high PRR) 5 h
Battery charging time 2.5 h
External power supply DC 15 V, 4A \ AC 110-250 V
DIMENSIONS & WEIGHT
Dimensions of the electronic block 260 х 156 х 43 mm
Weight of the electronic block 800 g
Operating temperature range from –20 to +45 ºC

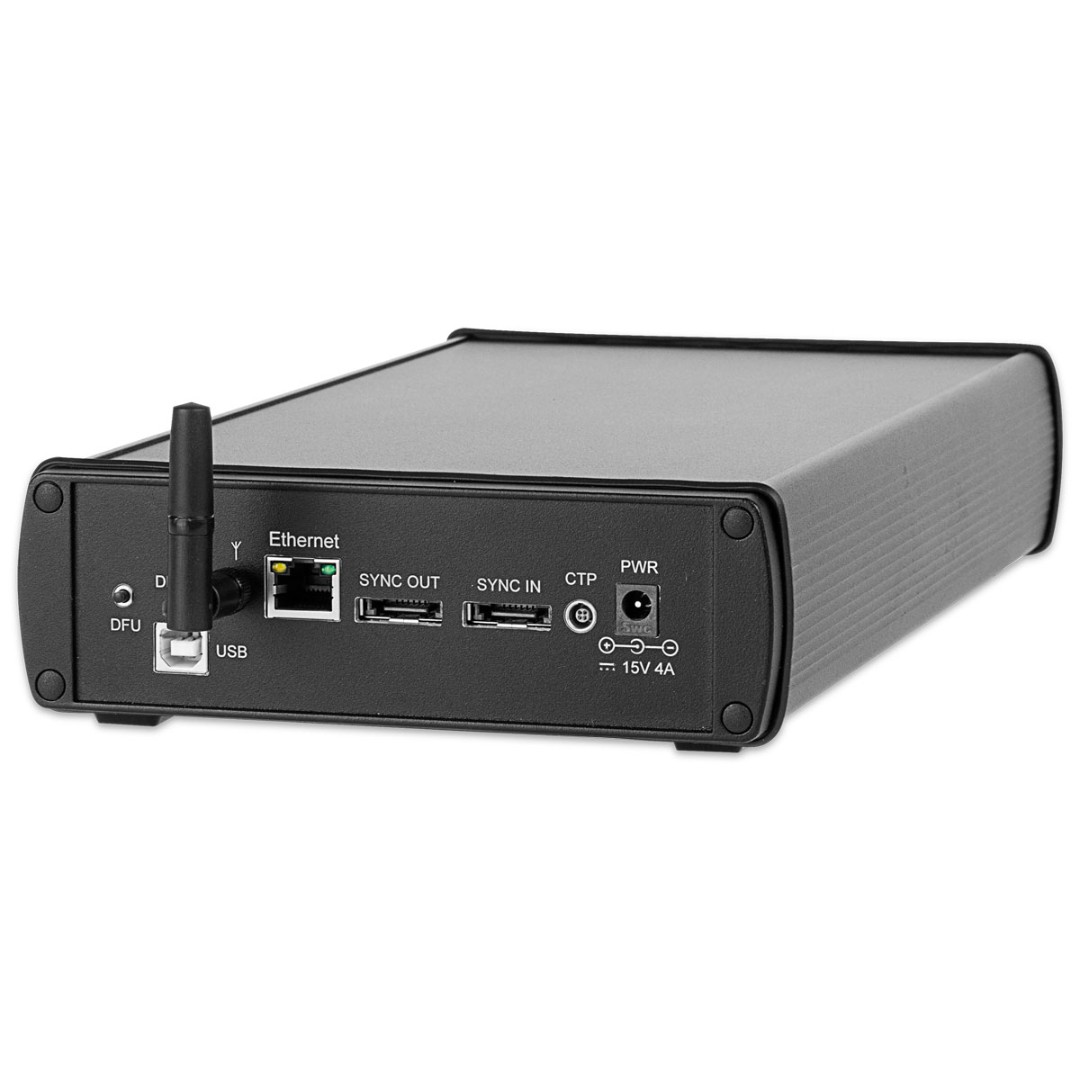

DATA INTERFACES
Wireless Ethernet 54 Mbit IEE802.11n
Ethernet 100 Mbit
External trigger input TTL
Name Quantity, pcs.
A1560 Sonic AIR – Electronic Unit 1
Net adaptor with cable 220V-15V 1
Ethernet cable 1.5 meter 1
WiFi Antenne 1
Introductory application software „Mathilda“ 1
User manual for integration kit (SDK) 1
Introductory application software „ACS "Mathilda" Windows GUI App“ (available at www.acs-international.com) 1
