A1525 Solo

A1525 Solo – the ultimate TFM Phased Array instrument

The most compact and affordable TMF unit with two phased array transducers and 3D visualization and analysis software in standard delivery set.

Einkaufsquellen

Category:

A compact, ergonomic and easy to handheld Phased Array unit based on Total Focusing Method for easy-going imaging of inspection objects with two-dimensional and three-dimensional visualization and evaluation of inspection results.

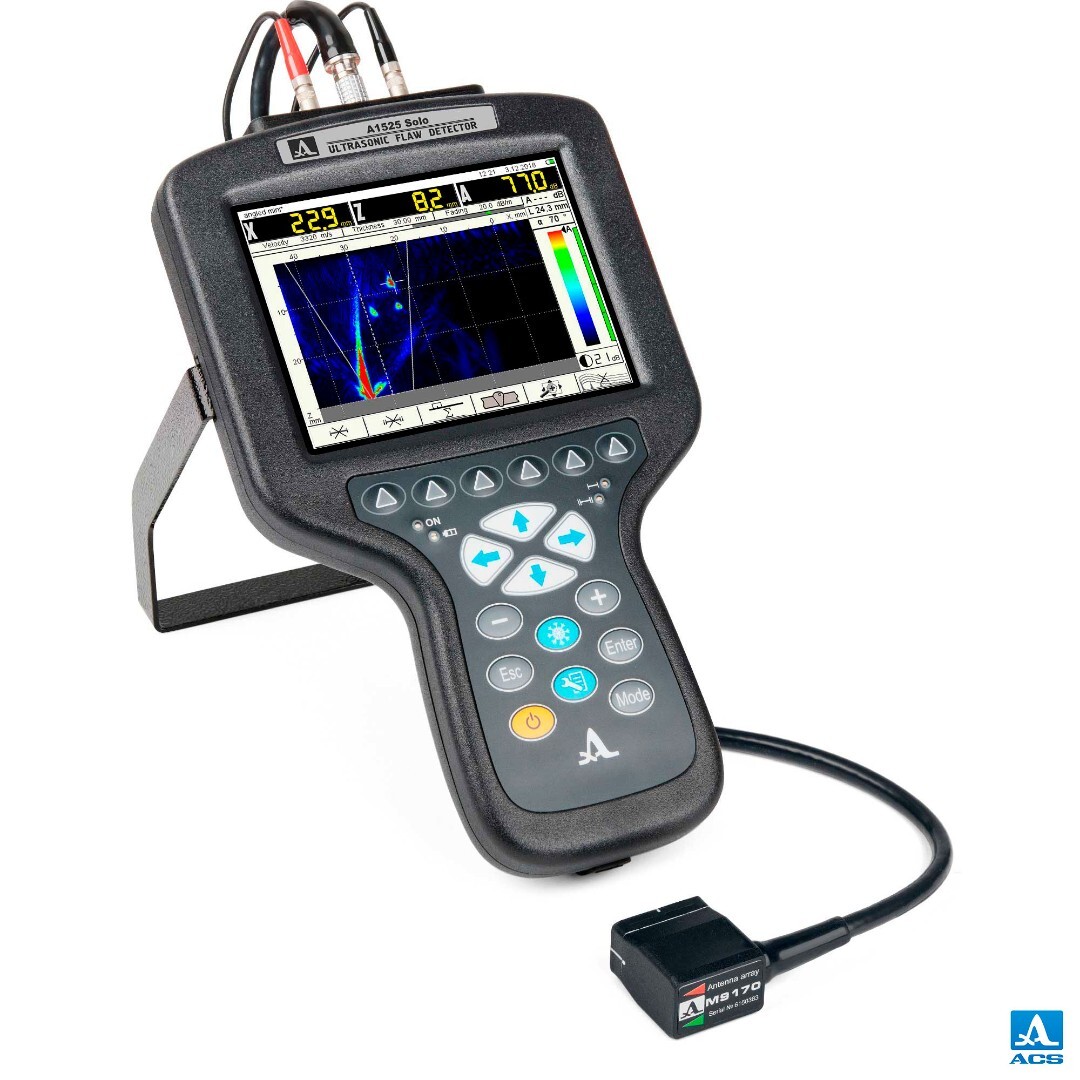

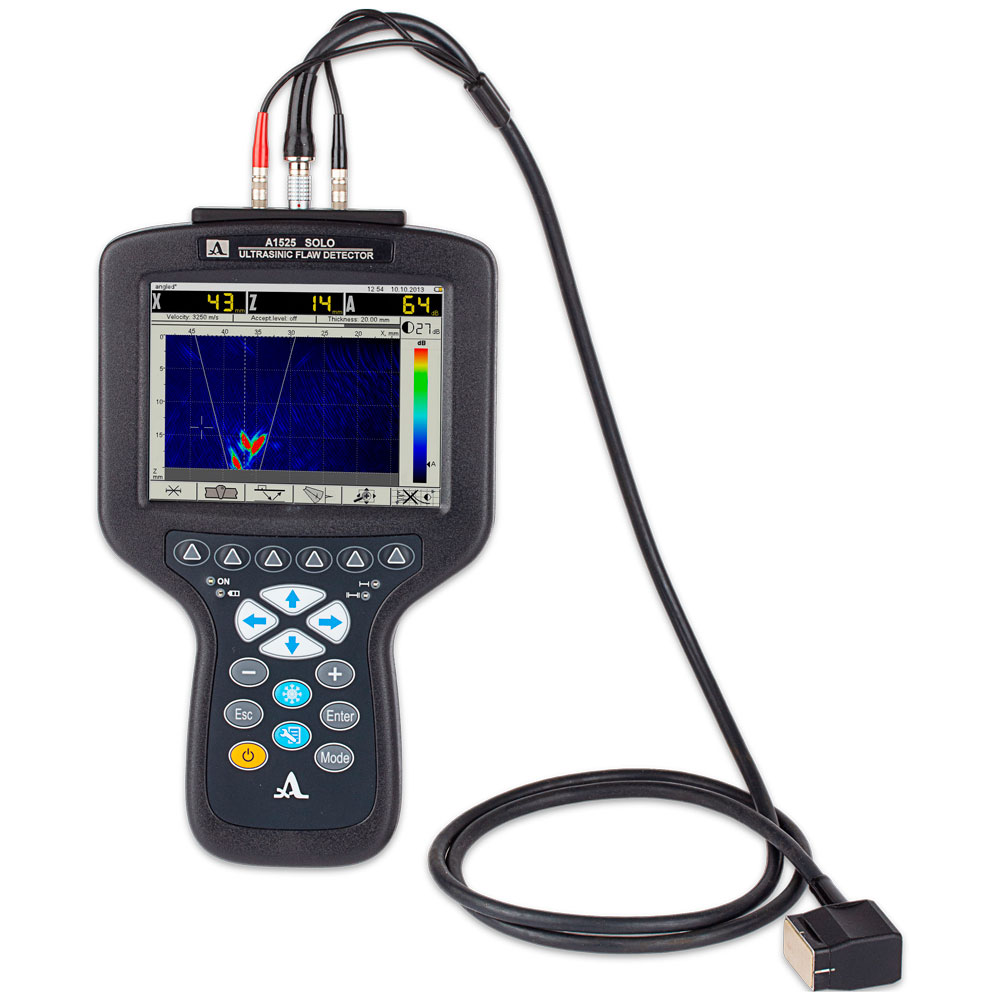

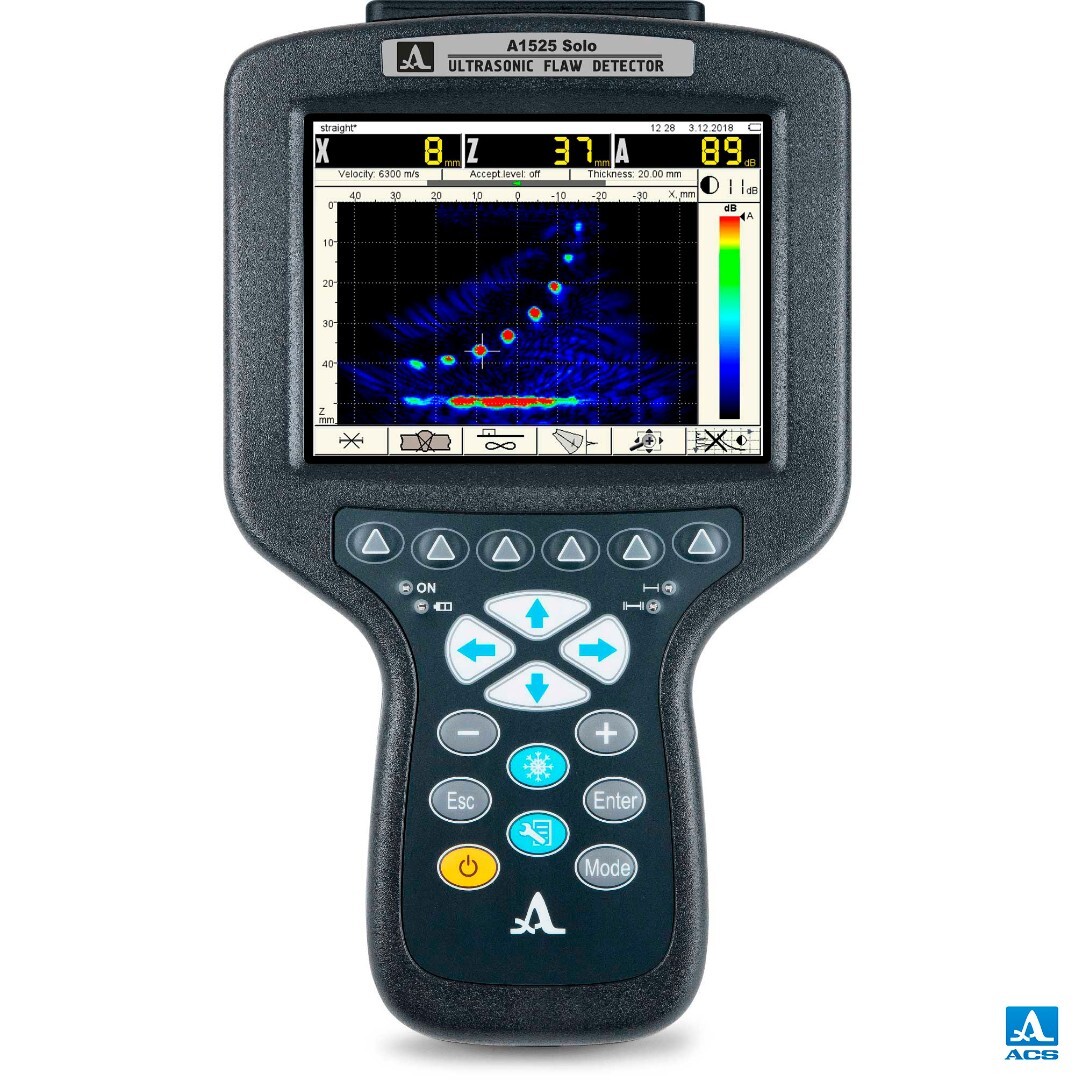

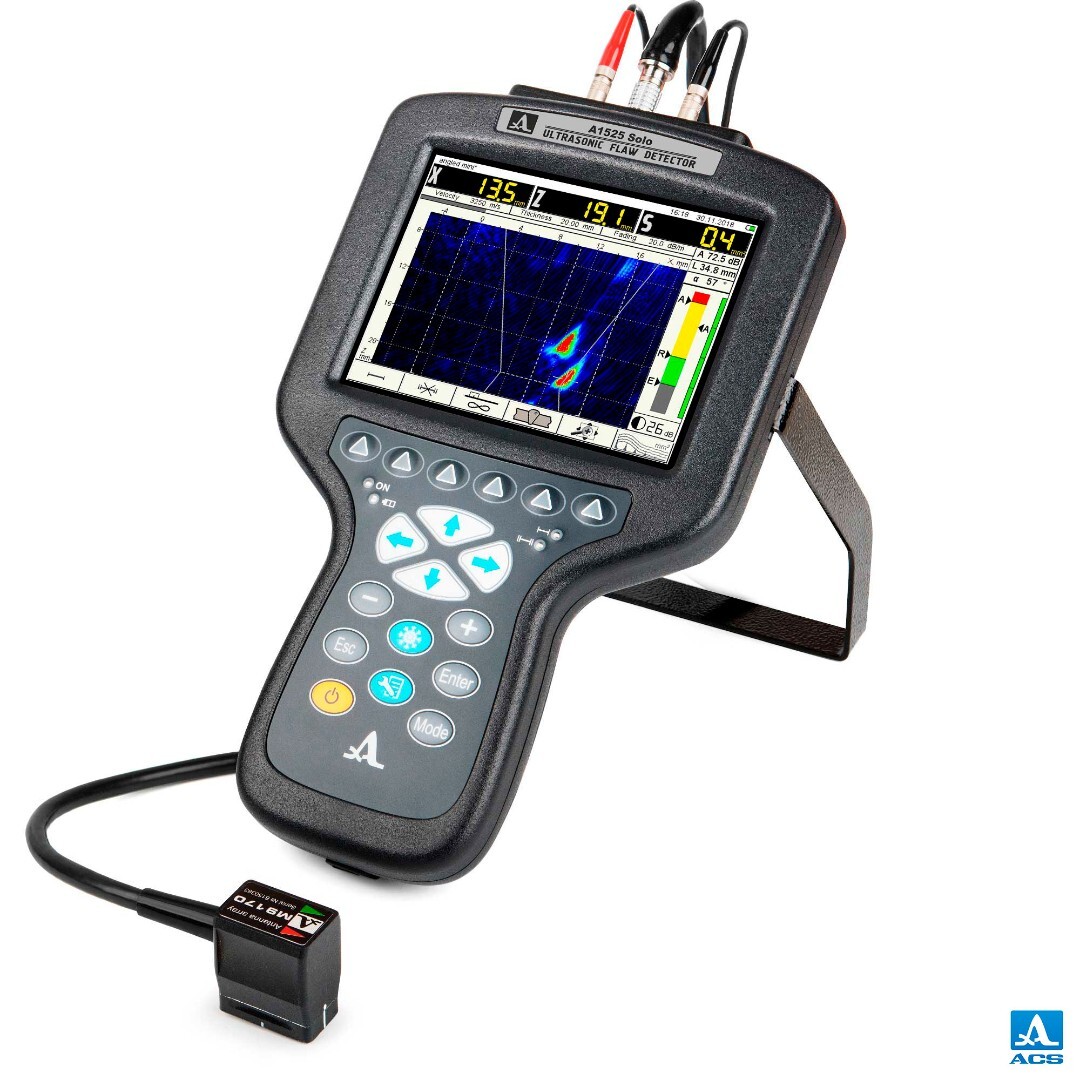

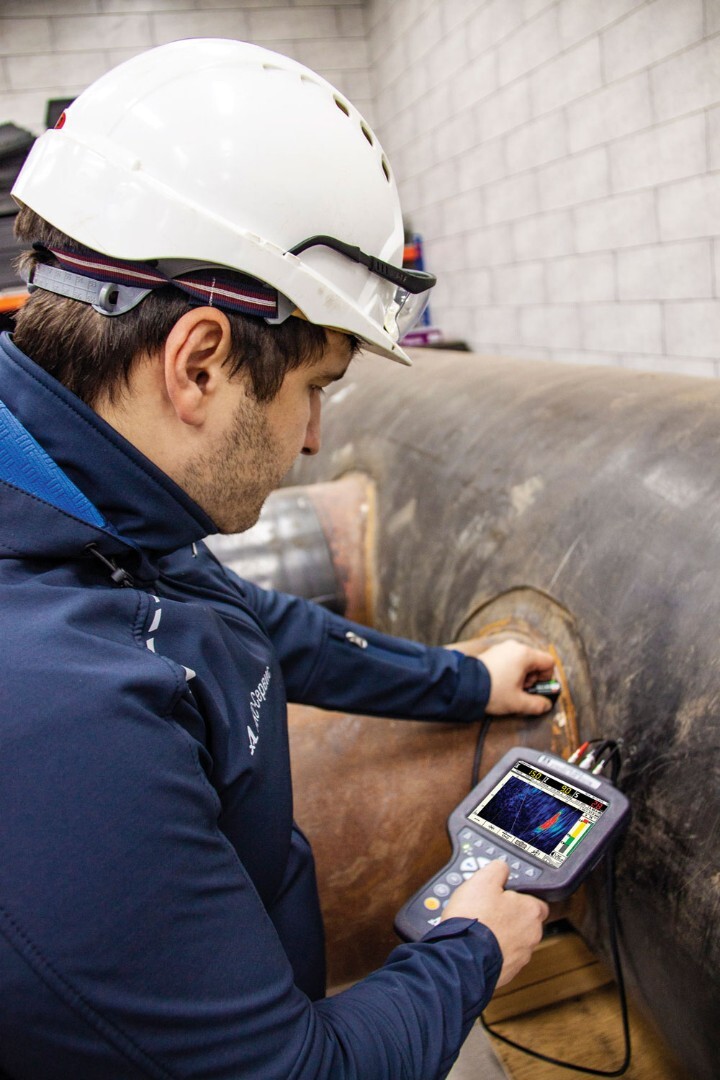

The instrument has ultra-compact design and is performed in lite-weight shockproof plastic housing. 800-gram weight allows one hand operation in hardly accessible locations. The Multi-SAFT image reconstruction technology offers unique flaw detection capability and extraordinary spatial resolution. Additional imaging and analysis functionality is provided by included INTROVIEW visualization software.

The instrument is equipped with two phased array transducers suitable for most of the regular ultrasonic weld testing. Additional transducers can be purchased for casting and forging inspection.

A1550 Solo covers most of the regular metal inspection tasks, such as:

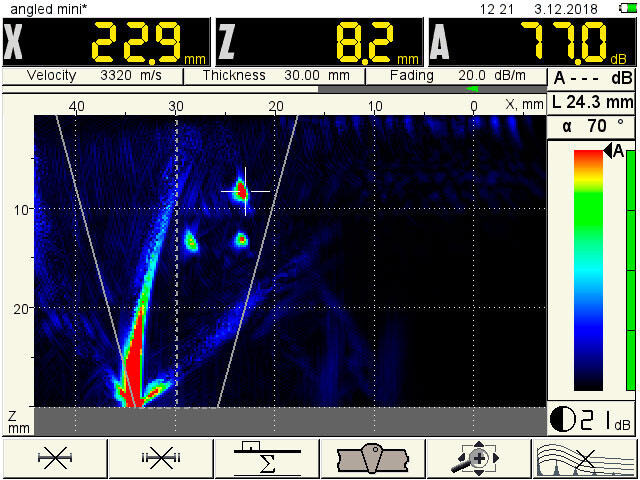

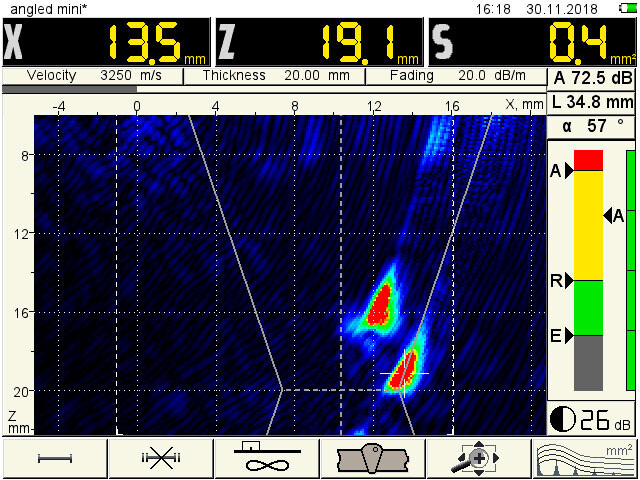

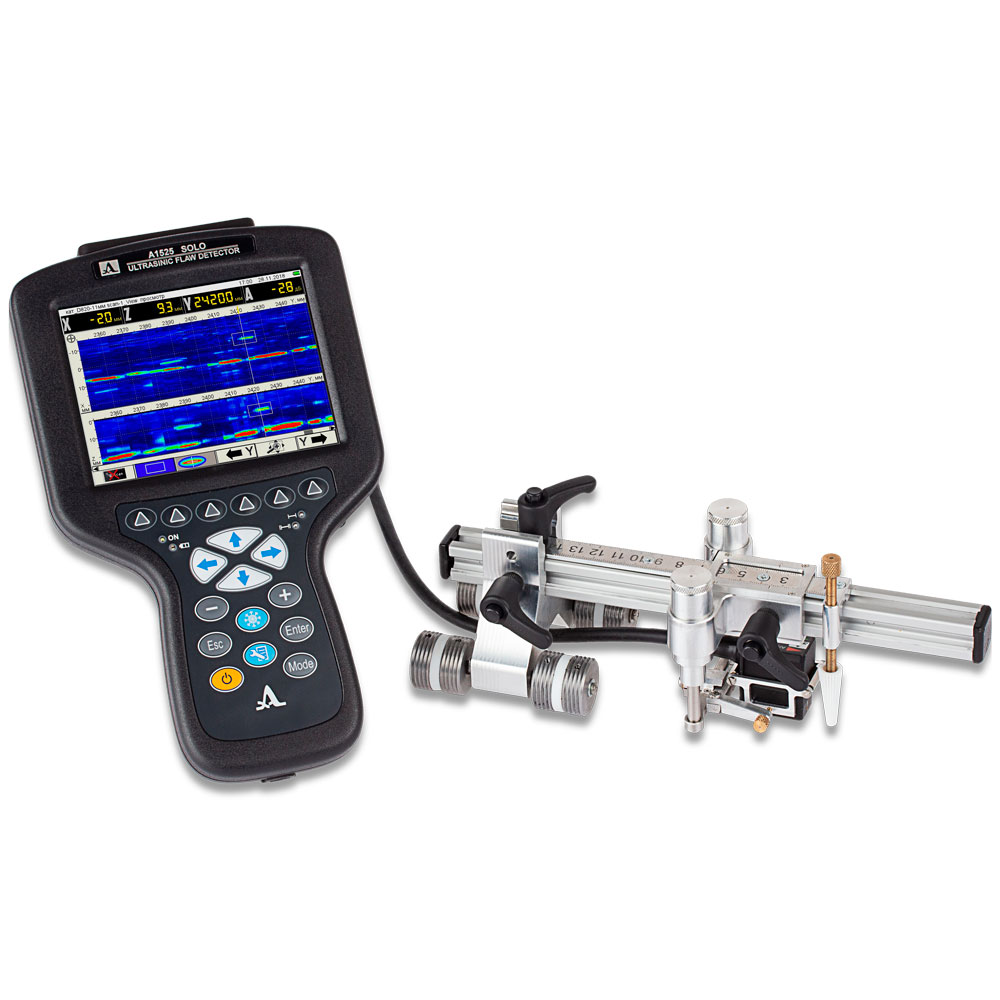

  • Manual and semi-mechanized ultrasonic weld testing including B, C & D-Scan visualization and 3D imaging (by purchasing ACS pipe scanner)
  • Testing of small-diameter pipes
  • Testing of casting and forging parts

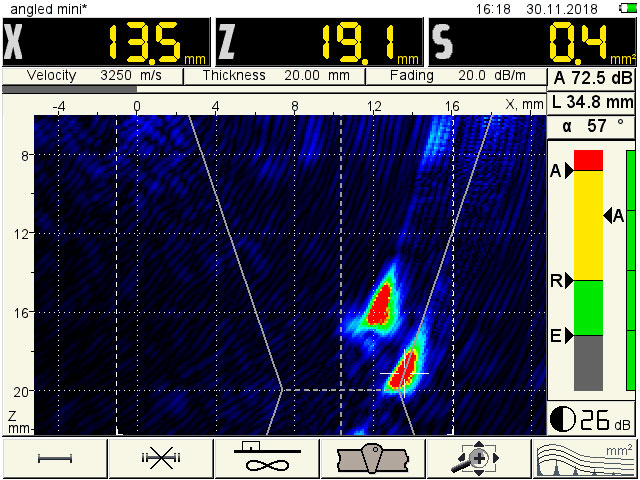

  • Tomographic visualization of the inspection volume and accurate flaw sizing
Phased Array Datenverarbeitungsmethode Total Focusing Methode (TFM)
Anzahl Array-Elemente / Kanäle 16
Arbeitsfrequenzen 1,0; 1,8; 2,5; 4,0; 5,0; 7,5; 10 MHz
Dynamikbereich des Verstärkers 100 dB
Bildauflösung / type 640 x 480 / TFT
Arbeitszeit vom Akku, not less than 6 h
Geräteabmessungen 260 x 157 x 43 mm
Gewicht 0.8 kg
Temperaturbereich -10 bis +55 ºC

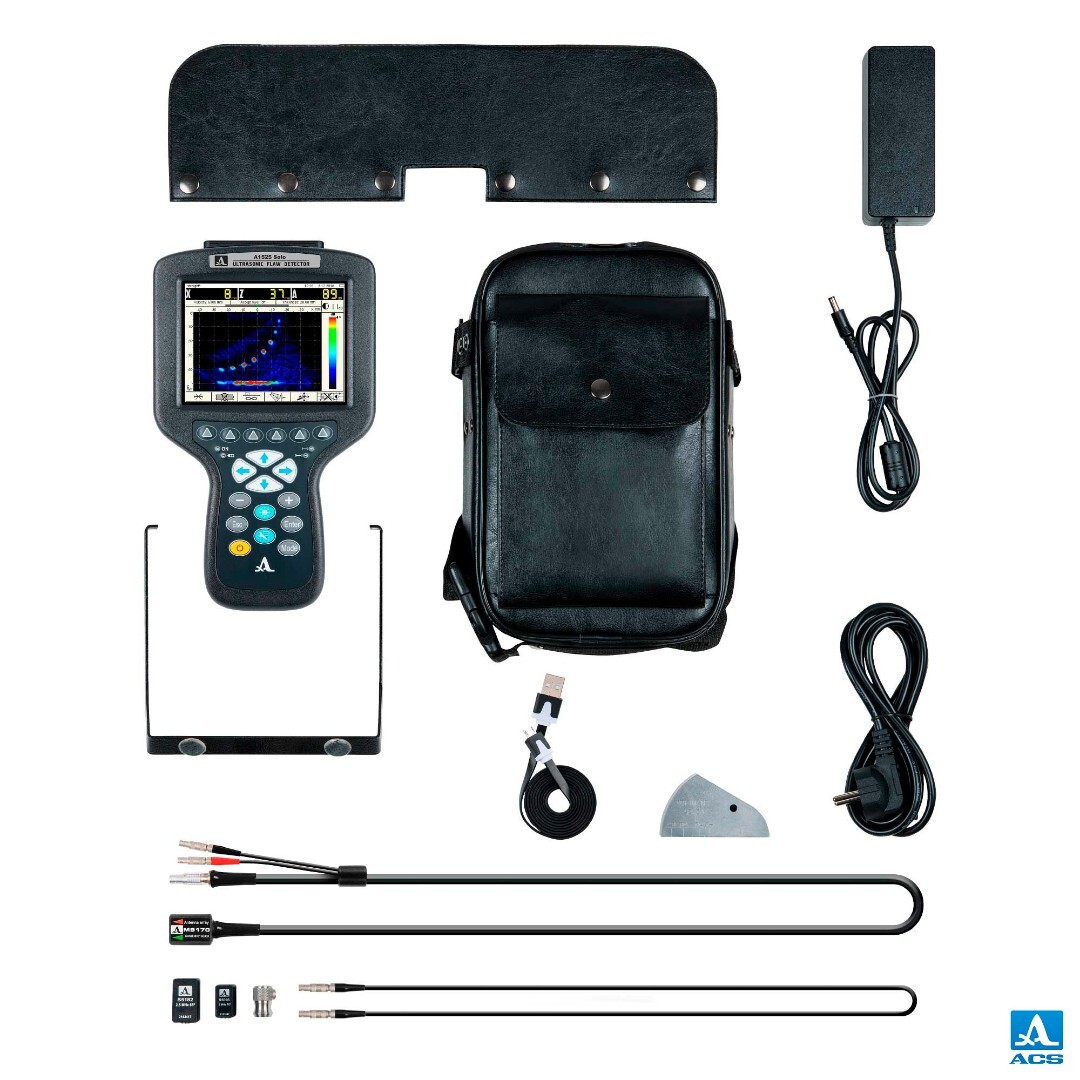

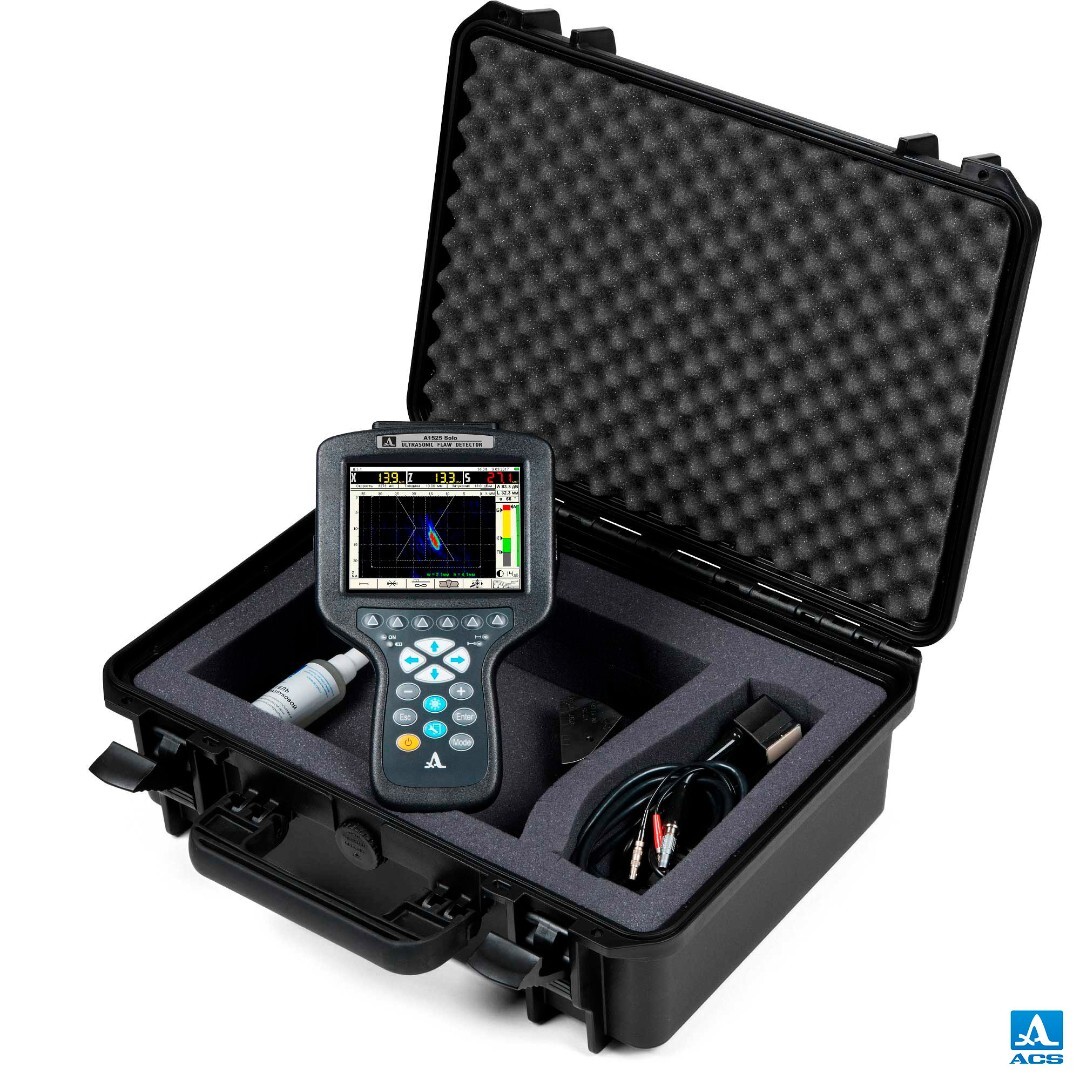

Lieferumfang

А1520 IntroVisor – TFM Gruppenstrahlergerät / Tomograph
• Gruppenstrahler-Prüfkopf M9065 (4 MHz Transversalwelle, Pitch 2.5 mm)
• Gruppenstrahler-Prüfkopf М9060 (4 MHz Longitudinalwelle, Pitch 2.5 mm)
• LEMO 00 – LEMO 00 Einzelkabel 1,2 m
• USB A – Mini-B Kabel
• Netzteil mit Kabel
• Koppelmittel (Flasche 100 ml.) V2/25
• Schutzhülle

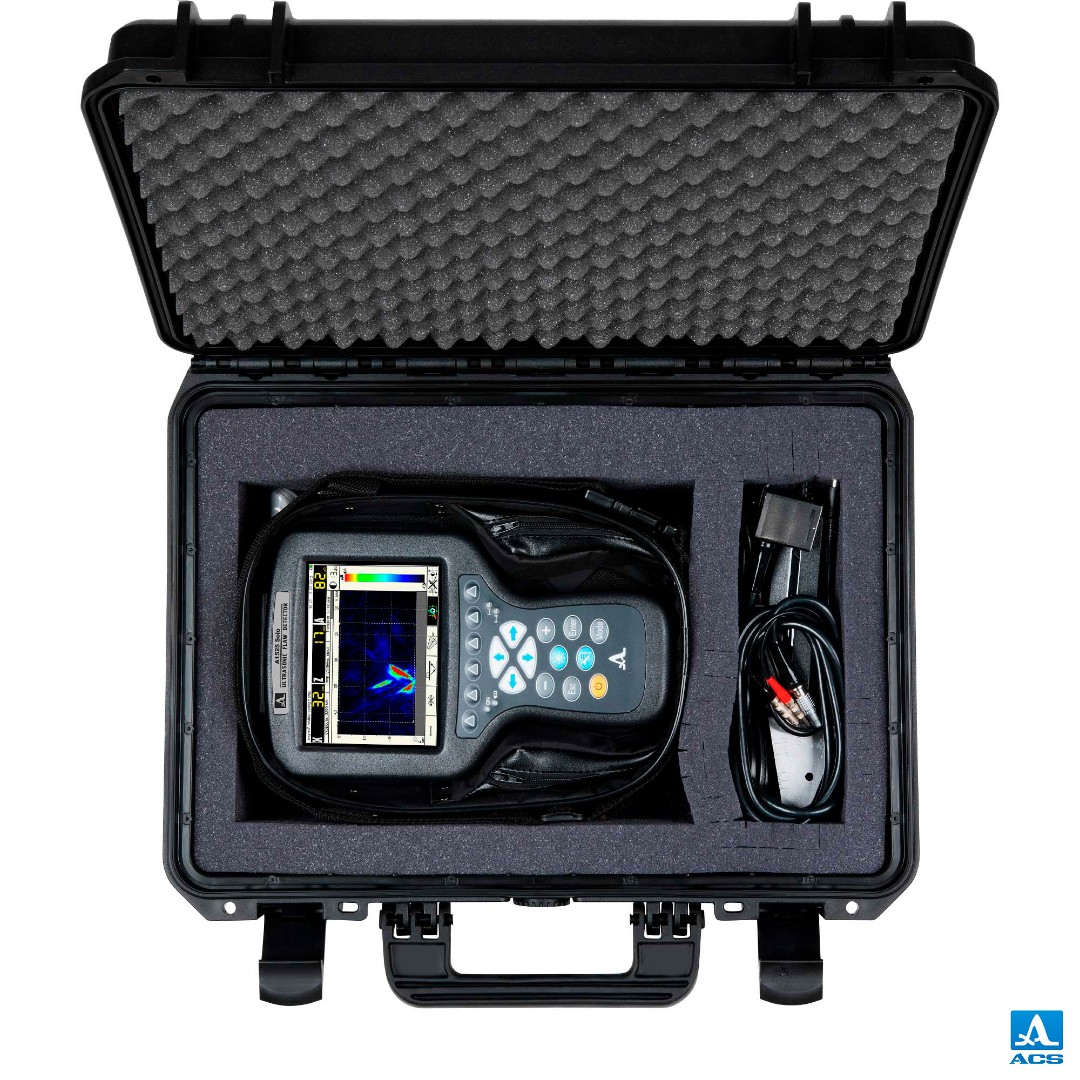

• Koffer

Product Flyer Metric

Product Flyer Imperial

Operation manual A1525 Solo
