Normal-beam dual-crystal ultrasonic transducer for transmitting and receiving the longitudinal ultrasonic waves

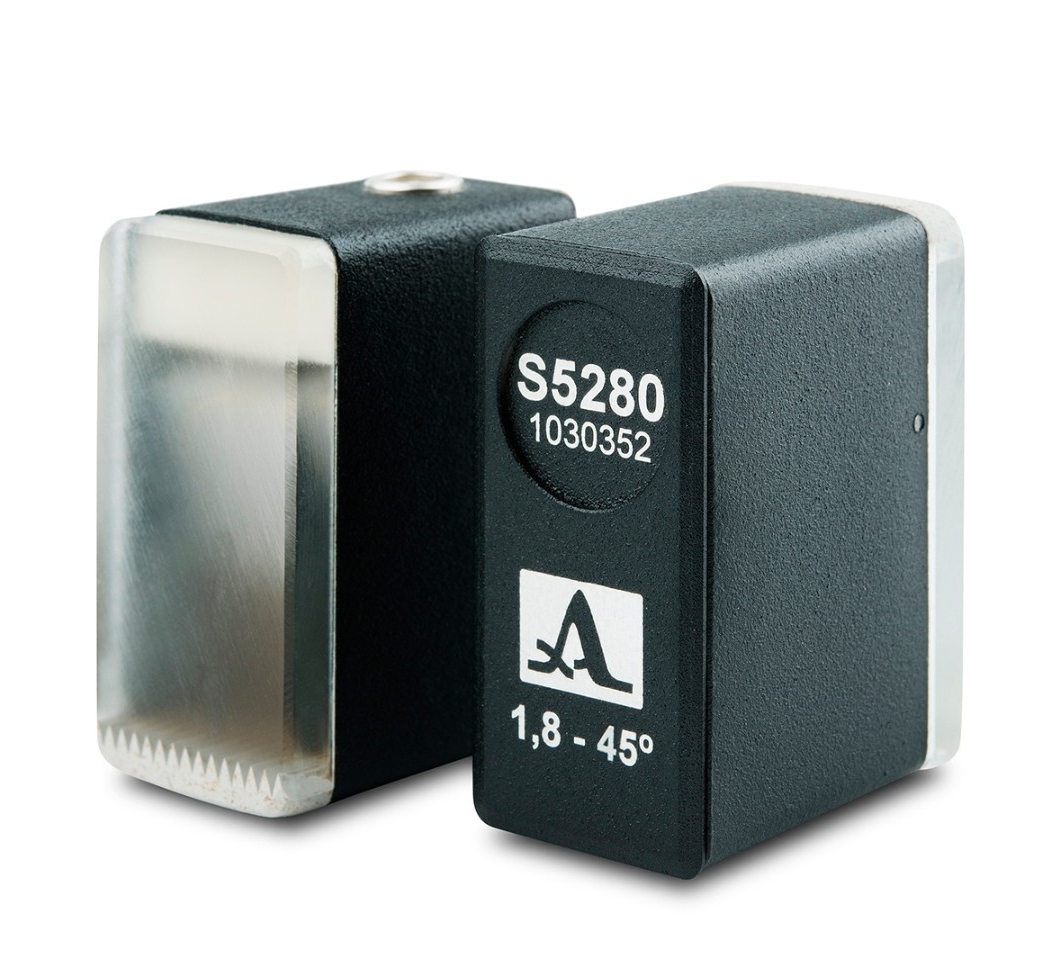

The ultrasonic angle-beam transducer S5280 is used to perform ultrasonic flaw detection in metallic, plastic and composite materials by transmitting and receiving ultrasonic shear waves. The transducer can be used as a part of ultrasonic flaw detectors in pulse-echo mode.
The transducer can be driven by the following ACS instruments:
Type of transducer | angle-beam, piezoelectric |
Nominal beam angle | 45°C |
Nominal frequency | 1,8 MHz |
Effective transducer aperture diameter | 18 mm |
Piezo-element electric capacity | 3500 ± 50 pF |
Maximum excitation pulse voltage, V | ± 250 V |
Operating temperature range | –20...+50°C |
Connector type | LEMO00.250 |
Dimensions | 24 × 27 × 23 mm |
Weight | 40 g |
S5280_45_Data_Sheet
