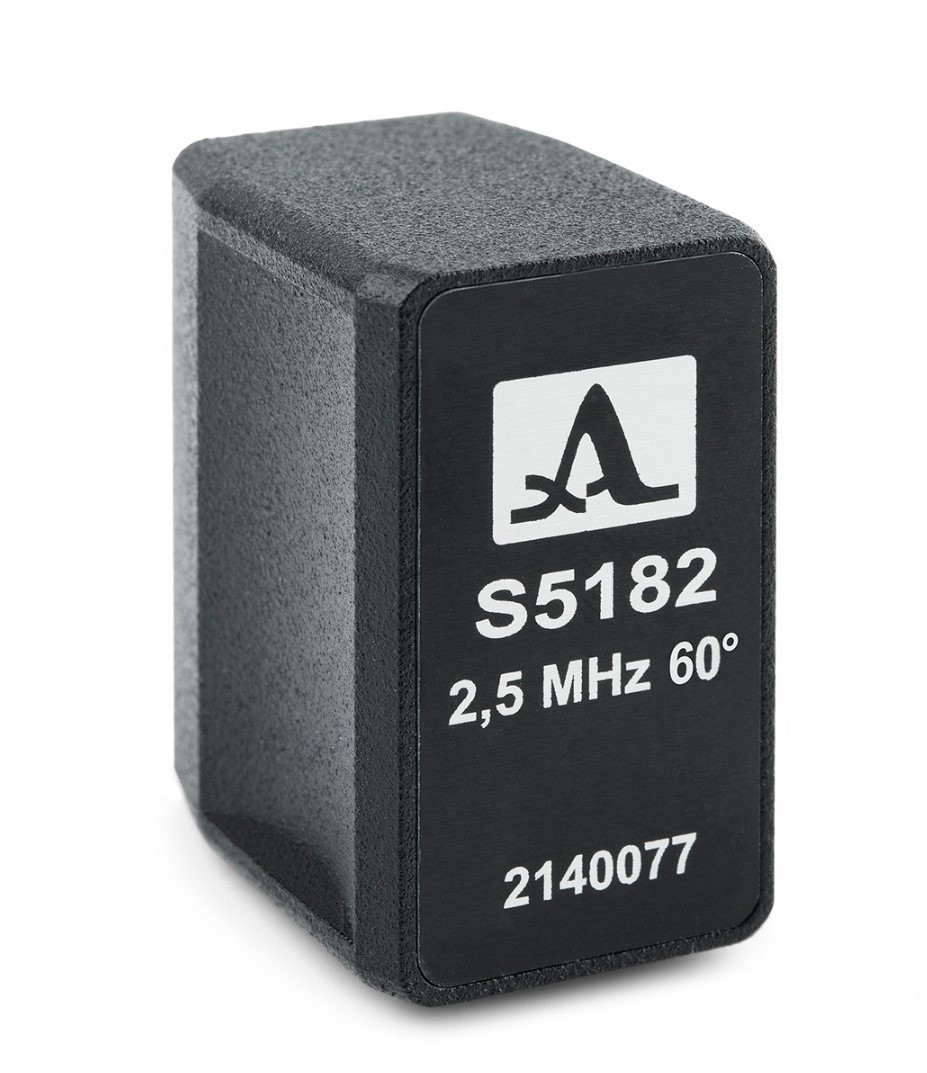

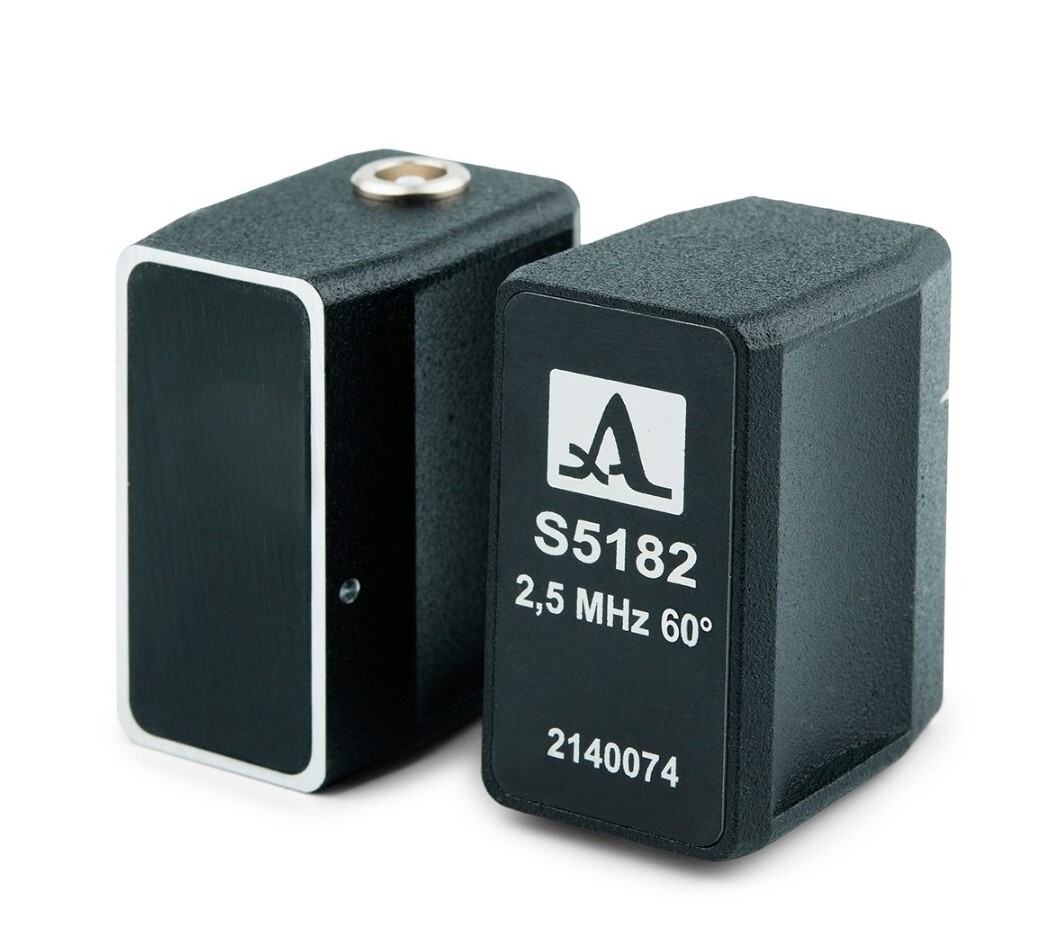

S5182 – angle-beam transducer 2,5 MHz / 60°
Normal-beam dual-crystal ultrasonic transducer for transmitting and receiving the longitudinal ultrasonic waves
The ultrasonic angle-beam transducer S5182 is used to perform ultrasonic flaw detection in metallic, plastic and composite materials by transmitting and receiving ultrasonic shear waves. The transducer can be used as a part of ultrasonic flaw detectors in pulse-echo mode.
The transducer can be driven by the following ACS instruments:
| Type of transducer | angle-beam, piezoelectric |
| Nominal beam angle | 60°C |
| Nominal frequency | 2,5 MHz |
| Effective transducer aperture diameter | 12 mm |
| Piezo-element electric capacity | 1300 ± 100 pF |
| Maximum excitation pulse voltage, V | ± 250 V |
| Operating temperature range | –20...+50°C |
| Connector type | LEMO00.250 |
| Dimensions | 24 × 19 × 16 mm |
| Weight | 26 g |
