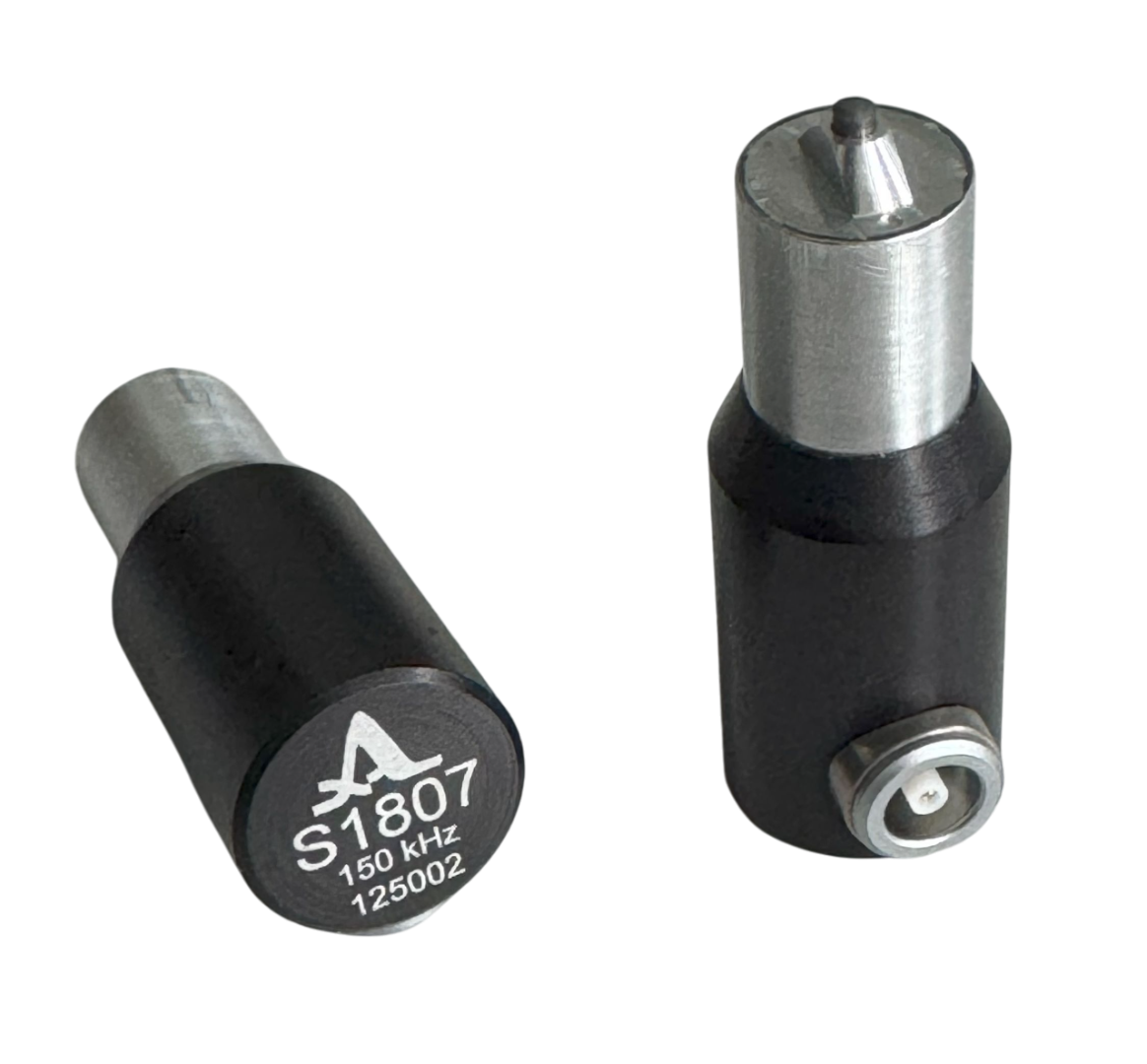

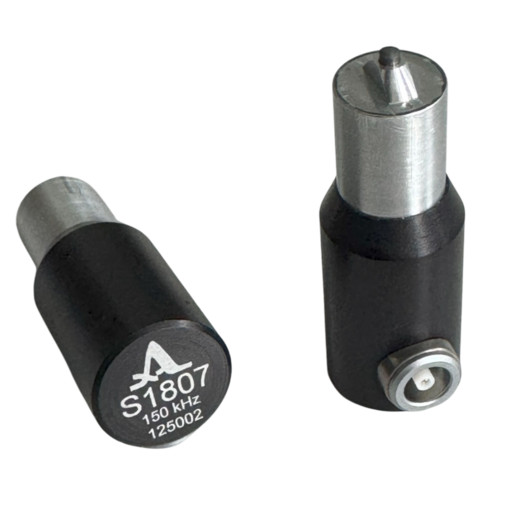

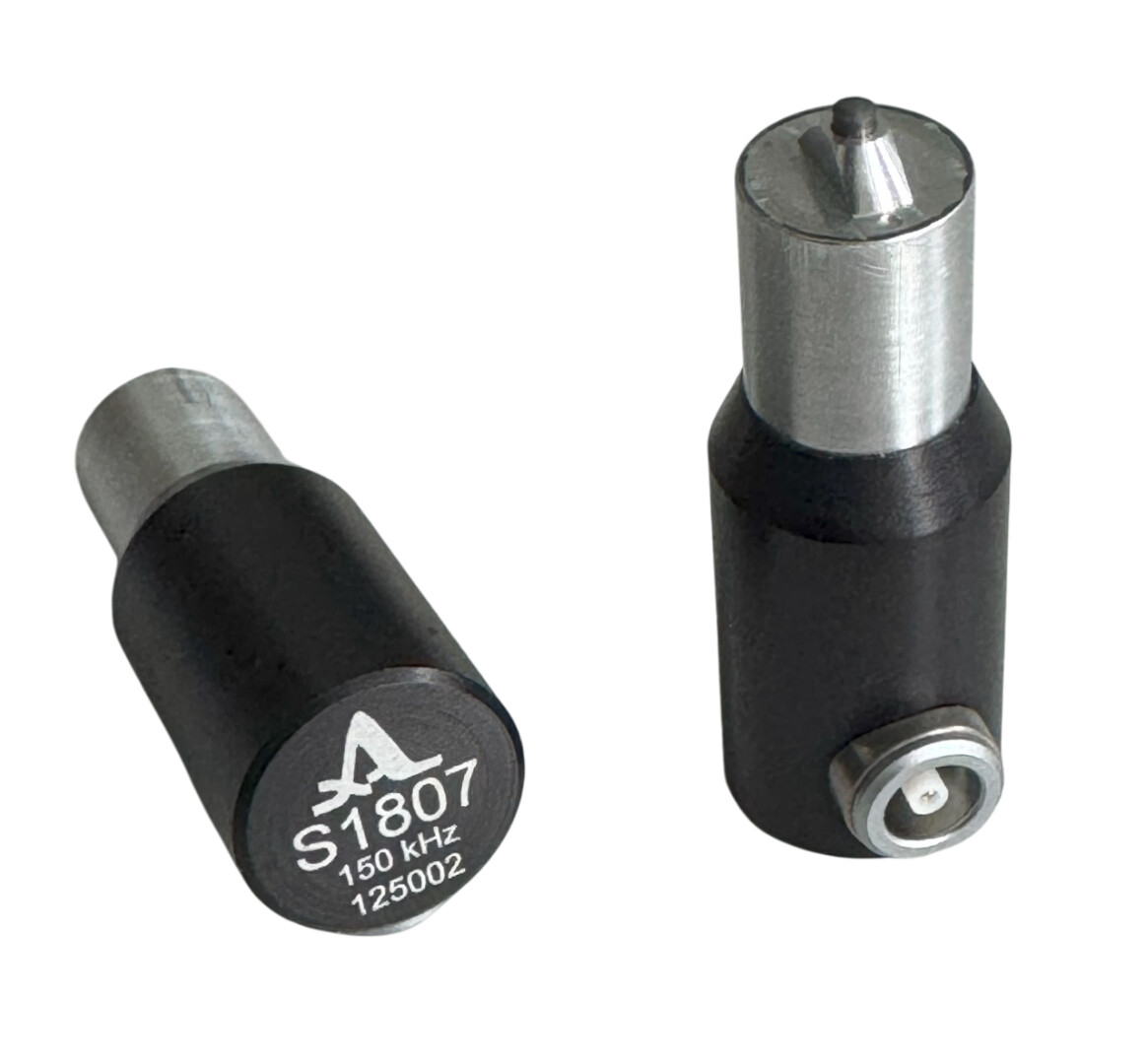

S1807 - shear wave DPC transducer 150 KHz
A low-frequency ultrasonic transducer is used for transmitting or receiving shear-horizontal ultrasonic waves in a broad frequency range from 100 to 200 KHz through transmission testing.
Ein universeller niederfrequenter Wandler mit einer Nennfrequenz von 150 kHz zur Anregung oder zum Empfang von Transversalwellen bei Verwendung des Trockenpunktkontakts (DPC) in stark streuenden Materialien (z. B. Beton, Holz, Gestein usw.).
Er kann entweder in einem Gehäuse mit Lemo00-Stecker oder als unverkabelte Variante für kundenspezifische Anwendungen eingesetzt werden, z. B. zur individuellen Konfiguration von Wandlerarrays durch den Anwender.
Der Wandler ist mit den folgenden Geräten von ACS kompatibel:
| Transducer type | Dry Point Contact |
| Type of generated wave mode: | Shear |

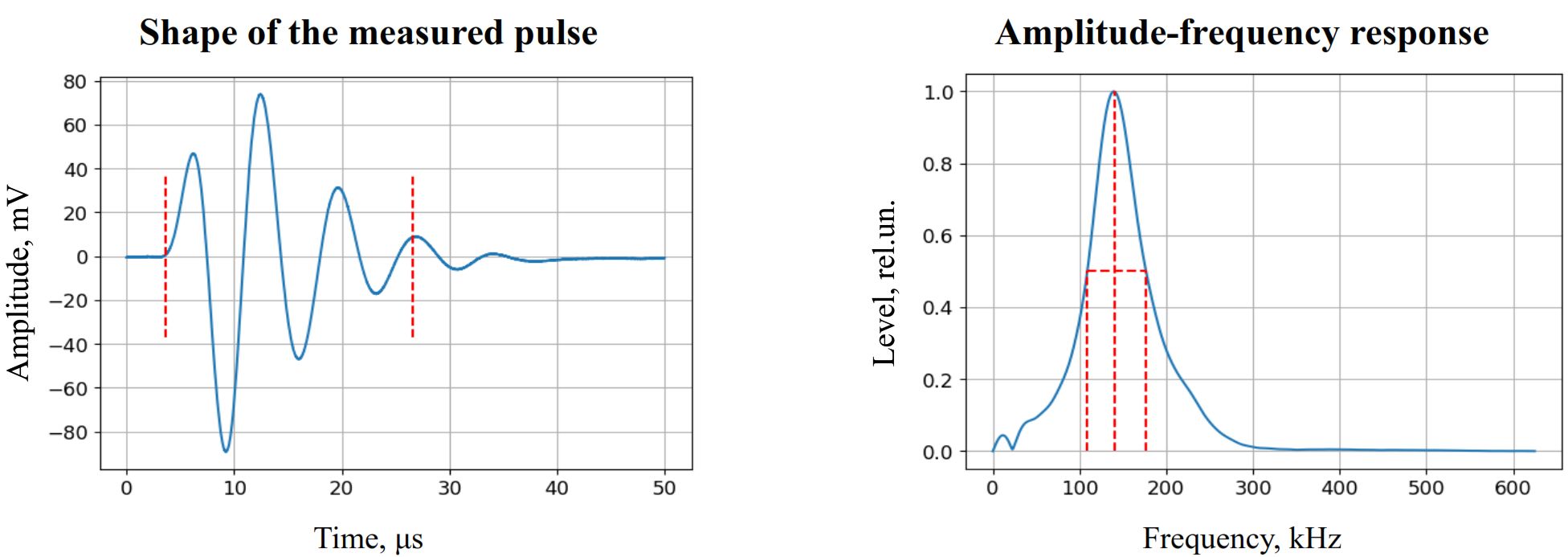

| Nominal frequency | 150 KHz |
| Band width | 100 to 200 KHz |
| Capacity | 1250 pF ± 100 pF |
| Maximal pulse voltage (bipolar) | 400 V (peak-to-peak) |
| Temperature range | -20 to +50ºC |
| Weight | 11 g |
