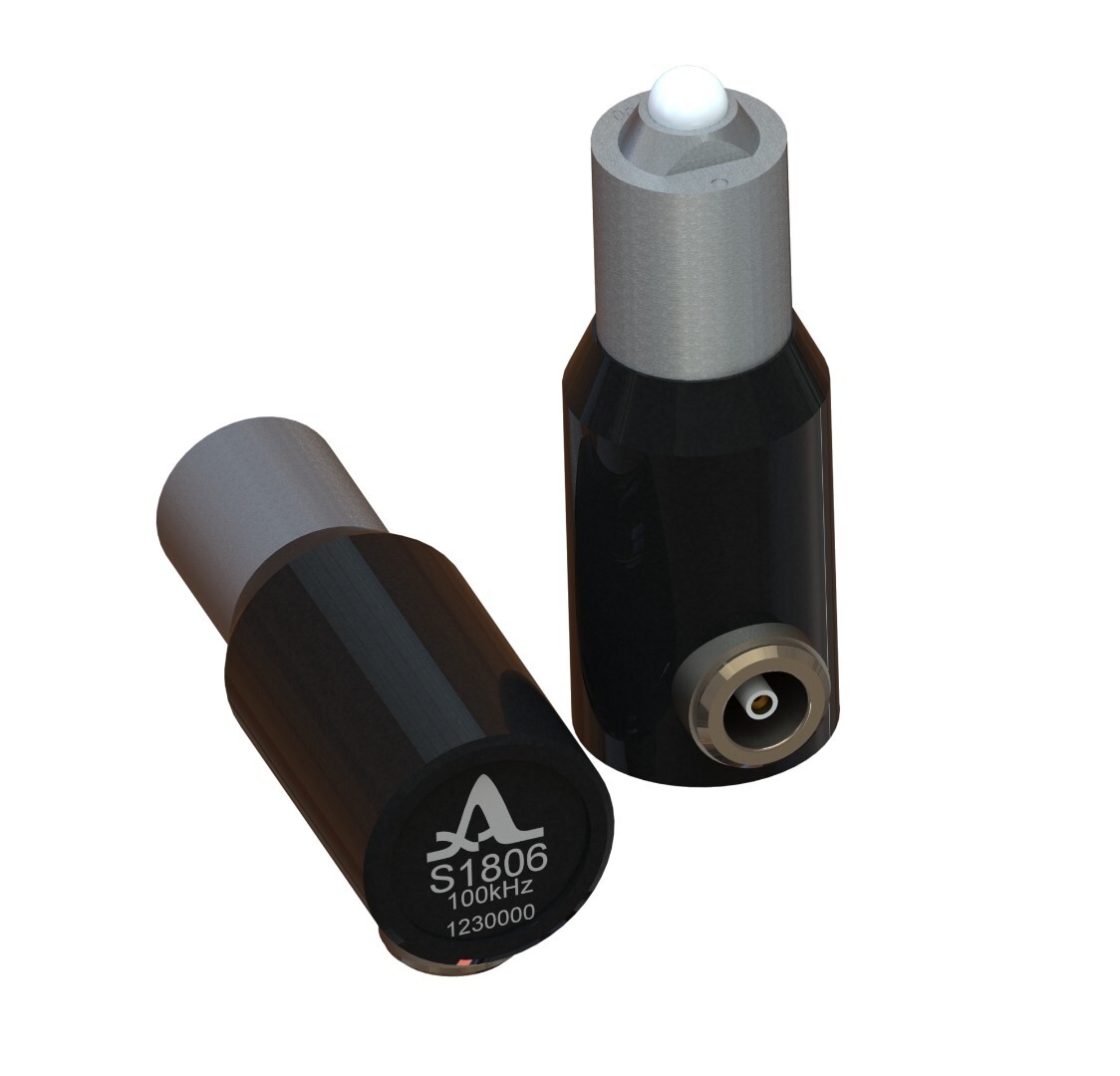

S1806 – Trockenkontakt-Ultraschallwandler 100 KHz
Niedrigfrequenter Trockenkontakt-Ultraschallwandler zur Aussendung oder Empfang von horizontal-polarizierten Transversalwellen im breiten Frequenzbereich von 40 bis 140 kHz für Durchschallungs- und Echoimpulsmessungen.

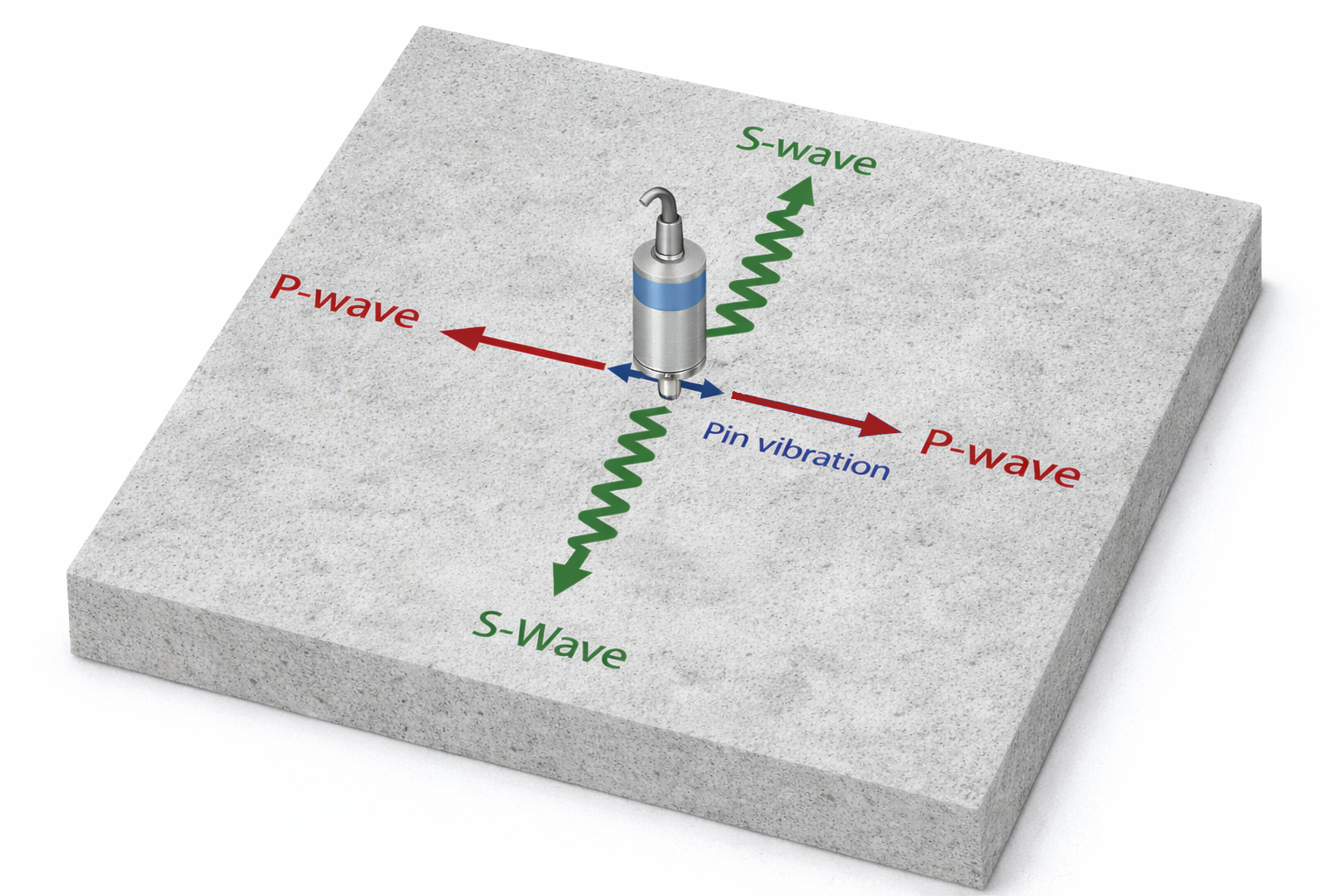

A general-purpose low-frequency transducer with a nominal frequency of 100 KHz for the dry-point-contact (DPC) excitation or acquiring shear-horizontal ultrasonic waves in highly scattering materials (concrete, wood, stones, etc.)

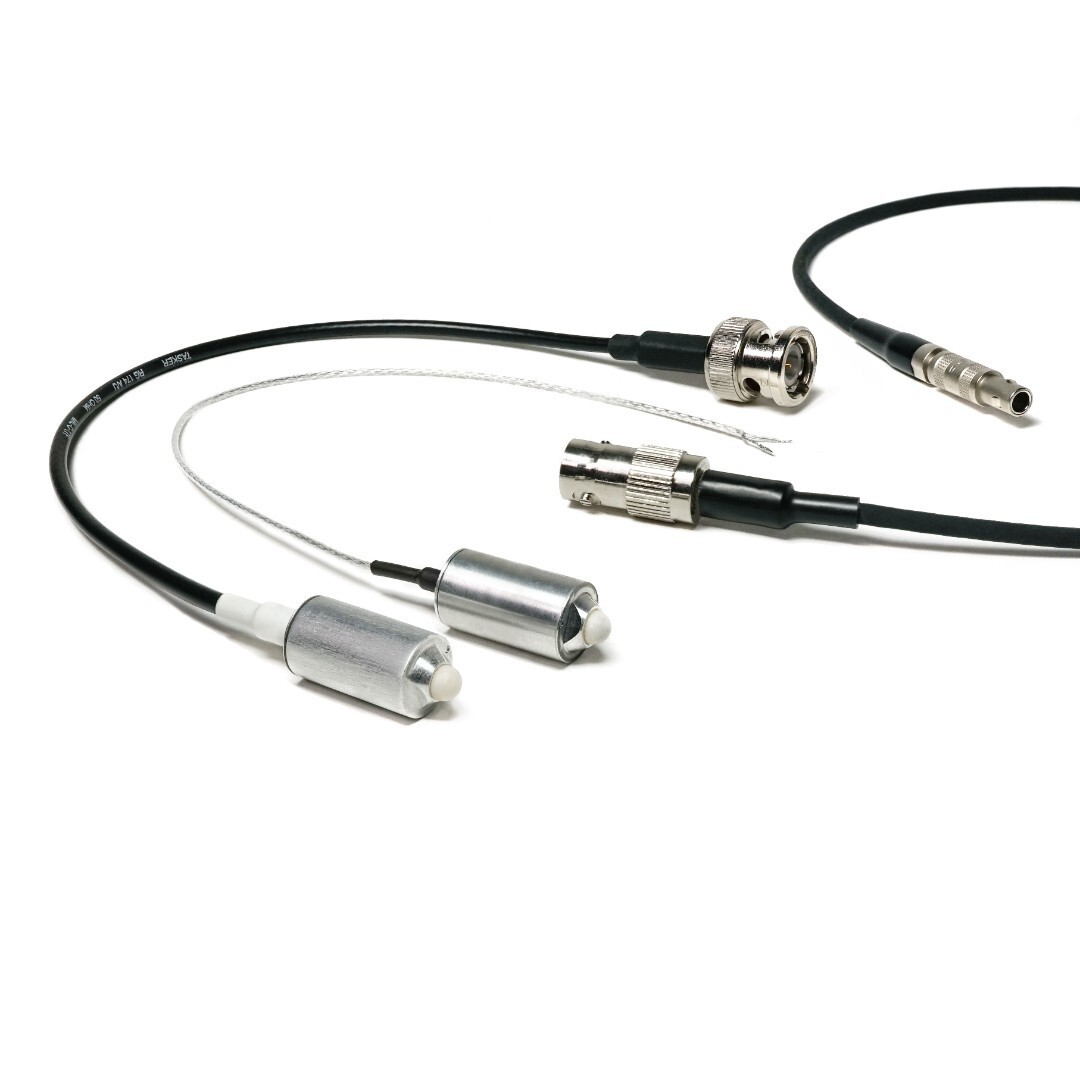

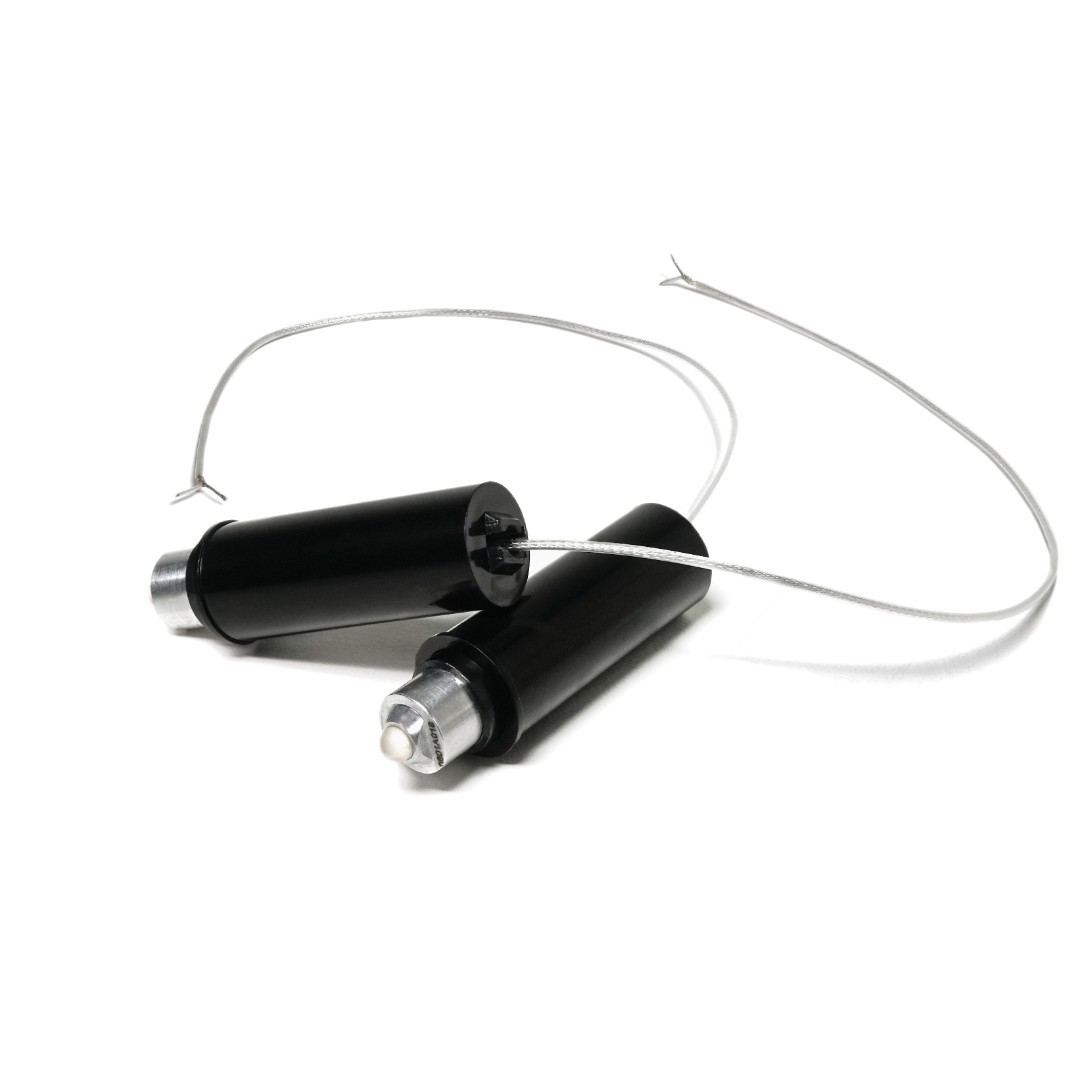

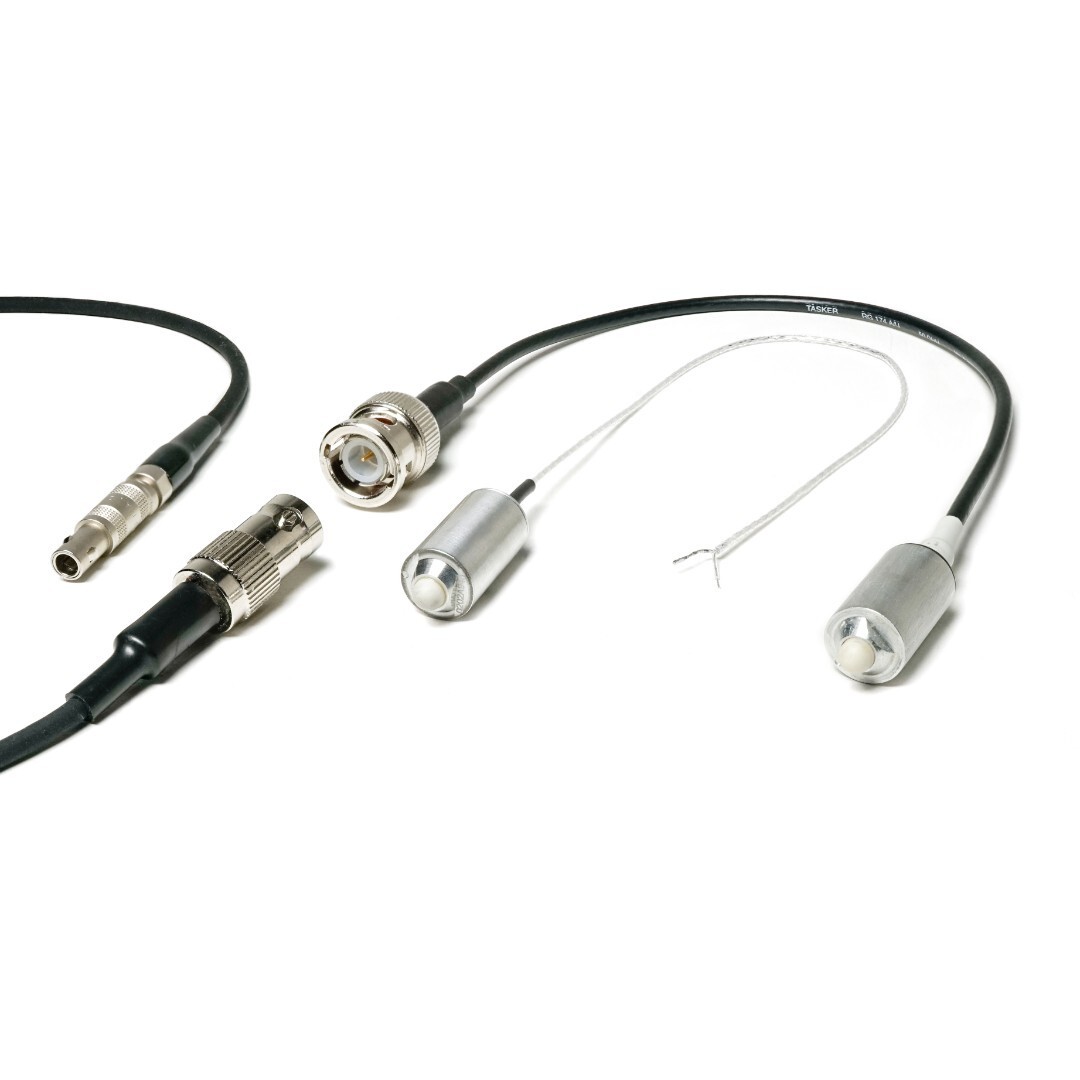

It can be used in ready-made housing with the Lemo00 plug or non-wired for self-tailored applications, e.g. for customization of transducer arrays by the customer.
The following ACS instruments can drive the transducer:
| Transducer type | Dry Point Contact |
| Nominal frequency | 100 KHz |
| Bandwidth | 40 to 140 KHz |
| Capacity | 700 pF ± 100 pF |
| Maximal pulse voltage (bipolar) | 400 V (peak-to-peak) |
| Temperature range | -20 to +50ºC |
| Weight | 14 g |
