S1801 – DPC-Wandler für Ultraschall-Transversalwellen (50 KHz)
Ein universell einsetzbarer niederfrequenter Dry-Point-Contact-Ultraschallwandler mit der Nennfrequenz von 50 KHz zum Senden oder Empfangen von transversalen Ultraschallwellen in stark streuenden Materialien

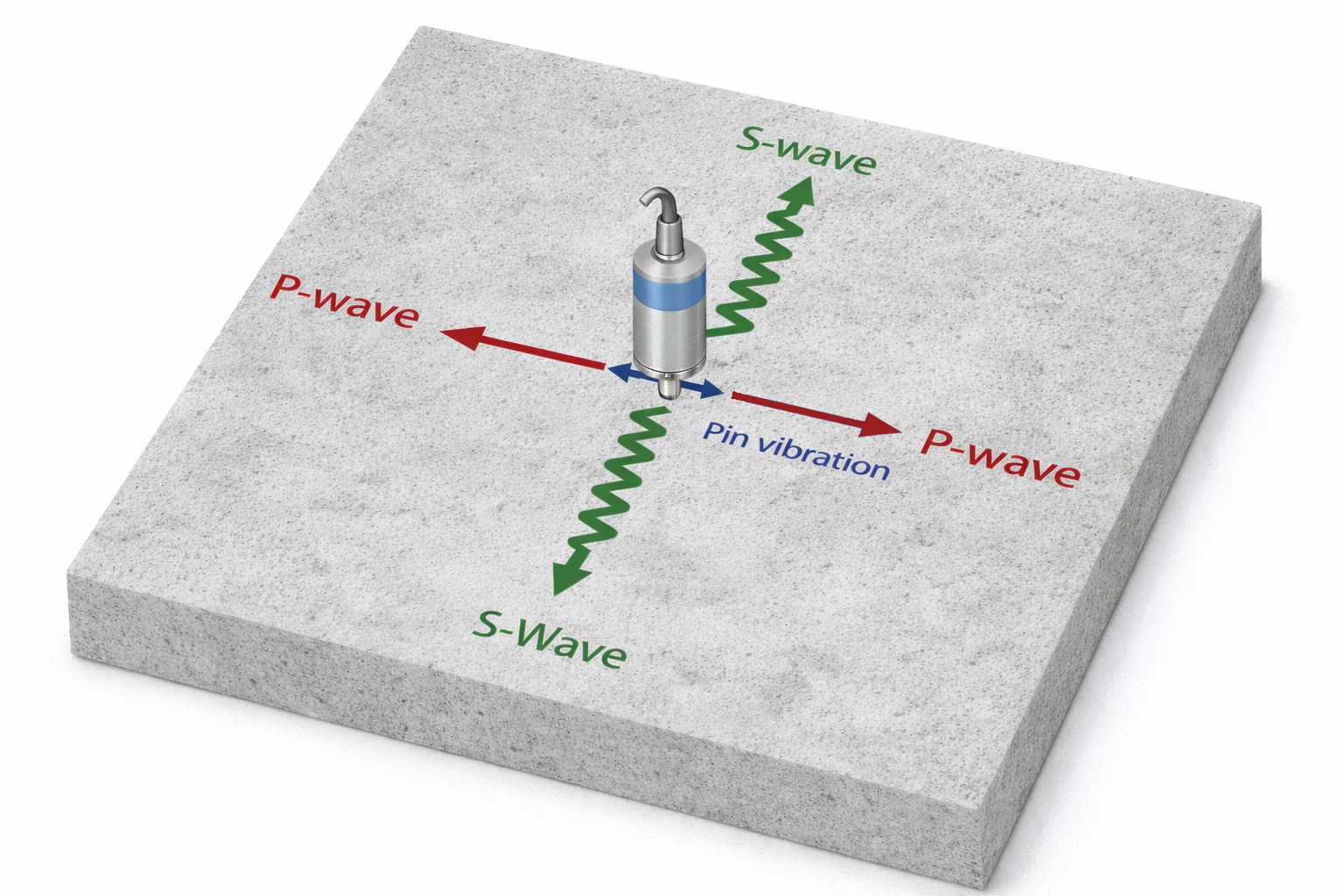

A general-purpose low-frequency transducer with a nominal frequency of 50 KHz for the dry-point-contact (DPC) excitation or acquiring shear ultrasonic waves in highly scattering materials (concrete, wood, stones, etc.)

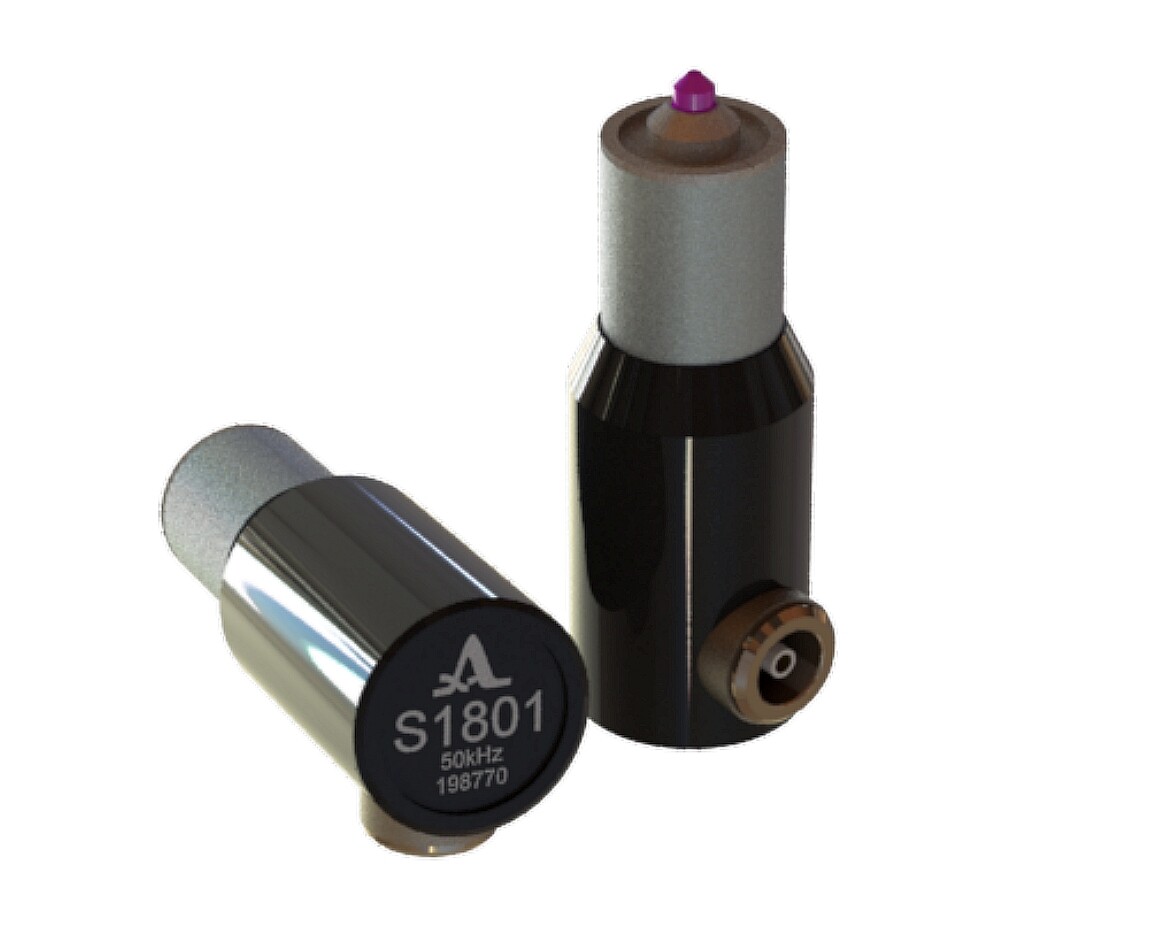

It can be used in ready-made housing with the Lemo00 plug or non-wired for self-tailored applications, e.g. for customization of transducer arrays by the customer.
The following ACS instruments can drive the transducer:
| Parameter | Value |
| Transducer type | Dry Point Contact |
| Ultrasonic wave mode | Longitudinal |
| Nominal frequency | 50 KHz |

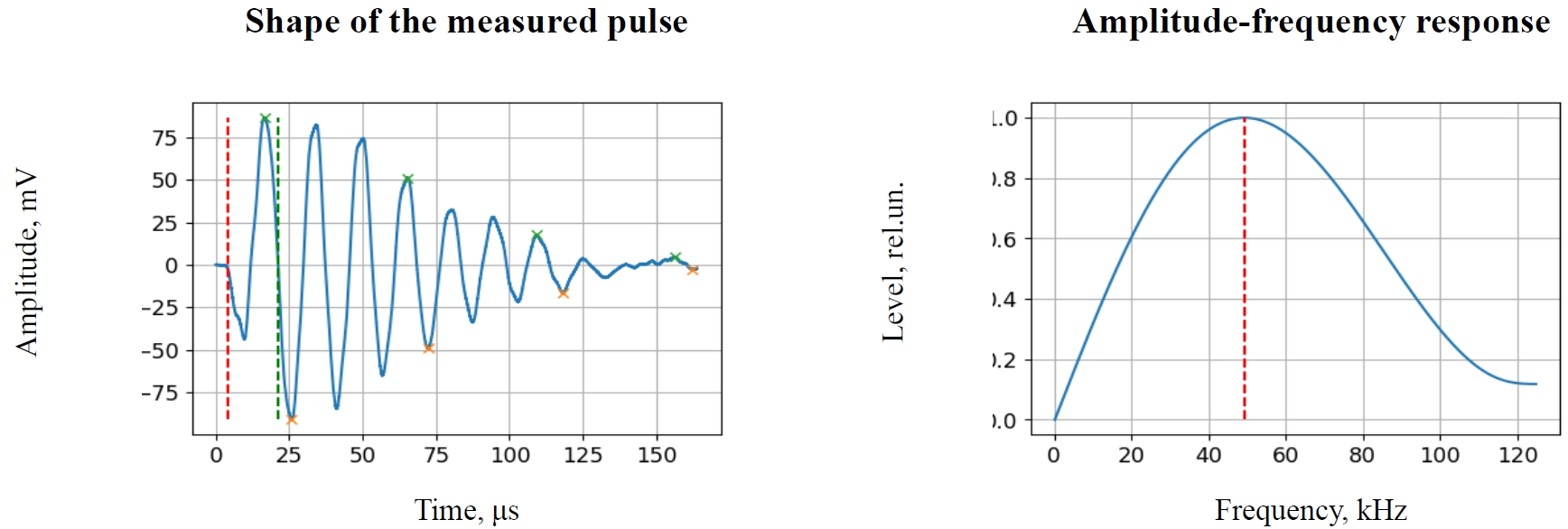

| Band width | 20 to 80 KHz |
| Capacity | 5000±500 pF |
| Maximal pulse voltage (peak-to-peak) | ± 200 V |
| Temperature range | -20 to +50ºC |
| Weight | 14 g |
