MIRA NEO – Application Software

The desktop software application for acquisition and post-processing of the A1040 MIRA 3D data

Ein Angebot bekommen

Beschreibung Anwendung Spezifikationen Download

The application software MIRA NEO is dedicated to acquisition of measurement data of the ultrasonic tomography system A1040 MIRA 3D in automated inspection systems. Further, the MIRA NEO software offers the full-scale 2D and 3D visualization and analysis tools for post-processing collected data of A1040 MIRA 3D.

The MIRA NEO application is purchased as a one-off license for one PC. The software can be downloaded from the ACS website. The license activation occurs via the same license key as for the MIRA 3D APP.

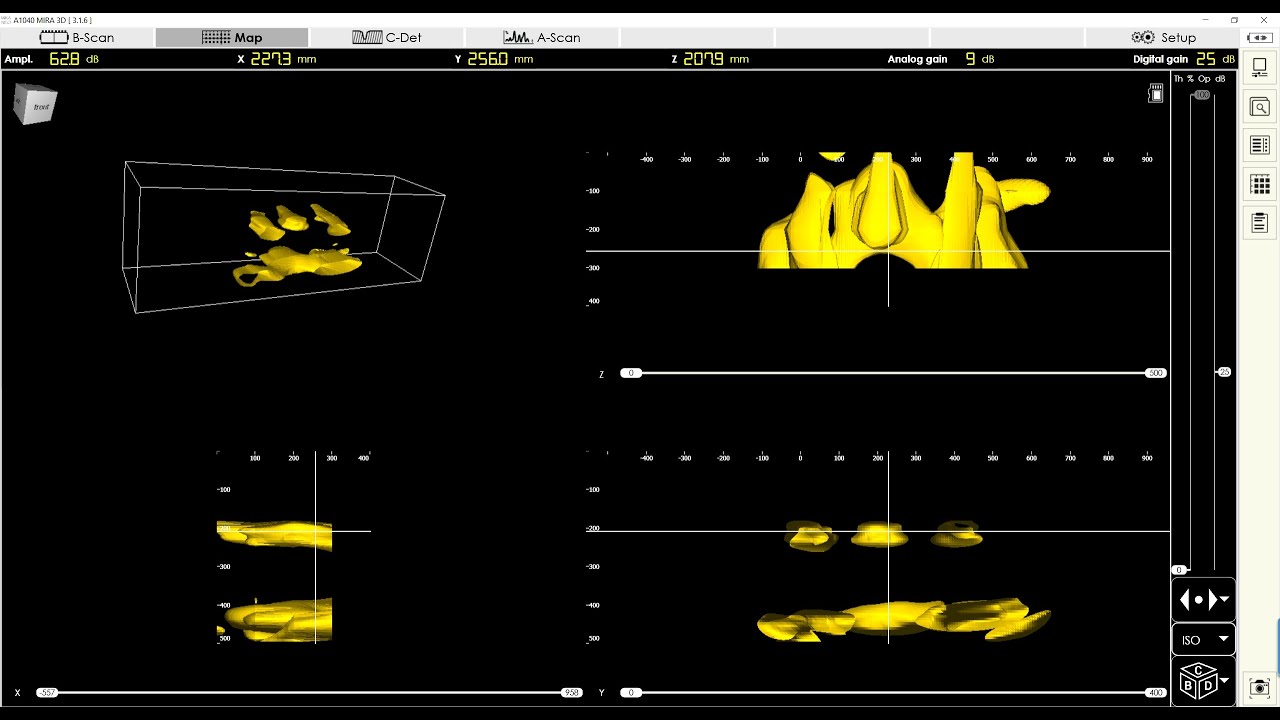

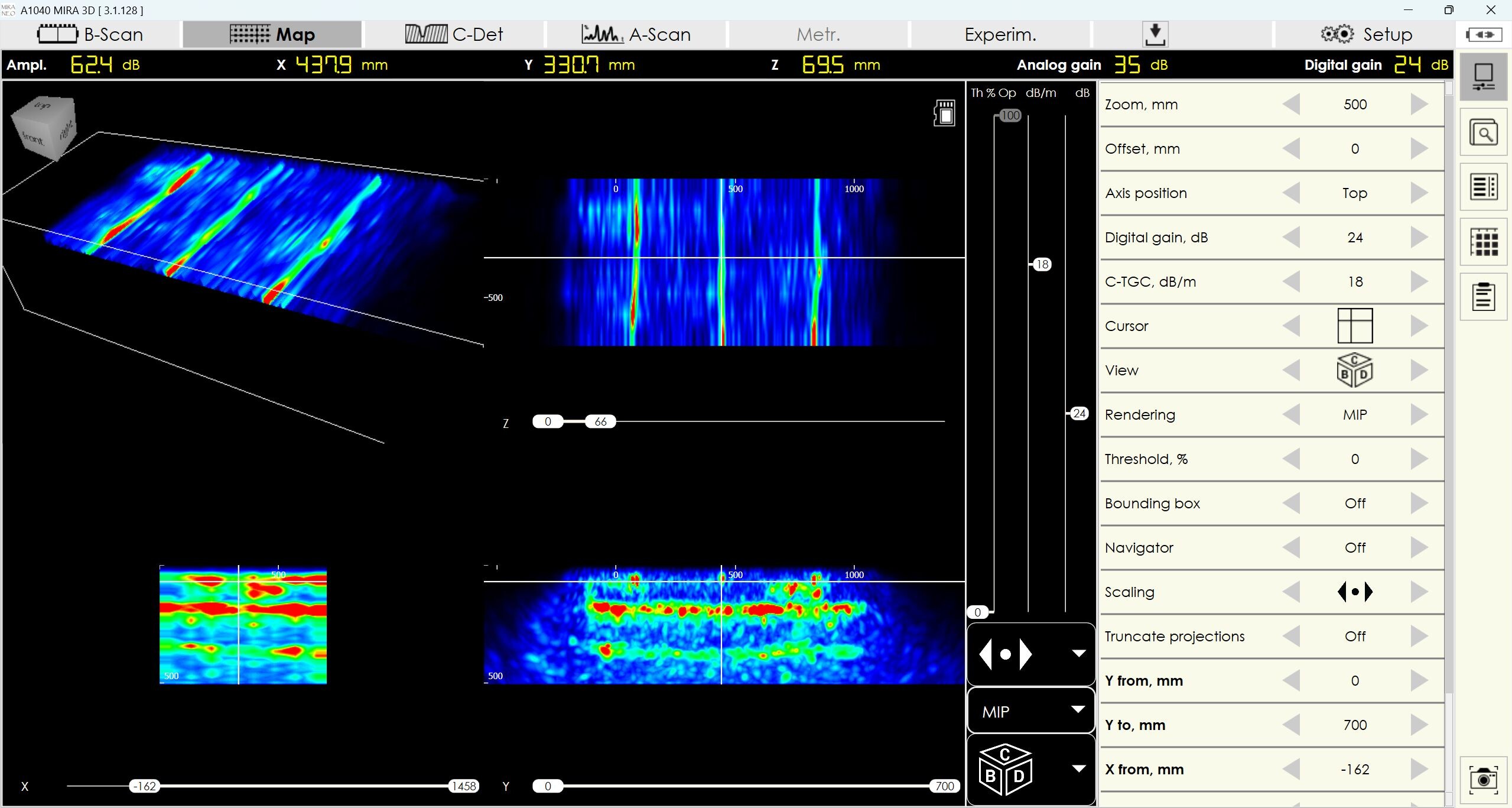

The software possesses following data visualization modes:

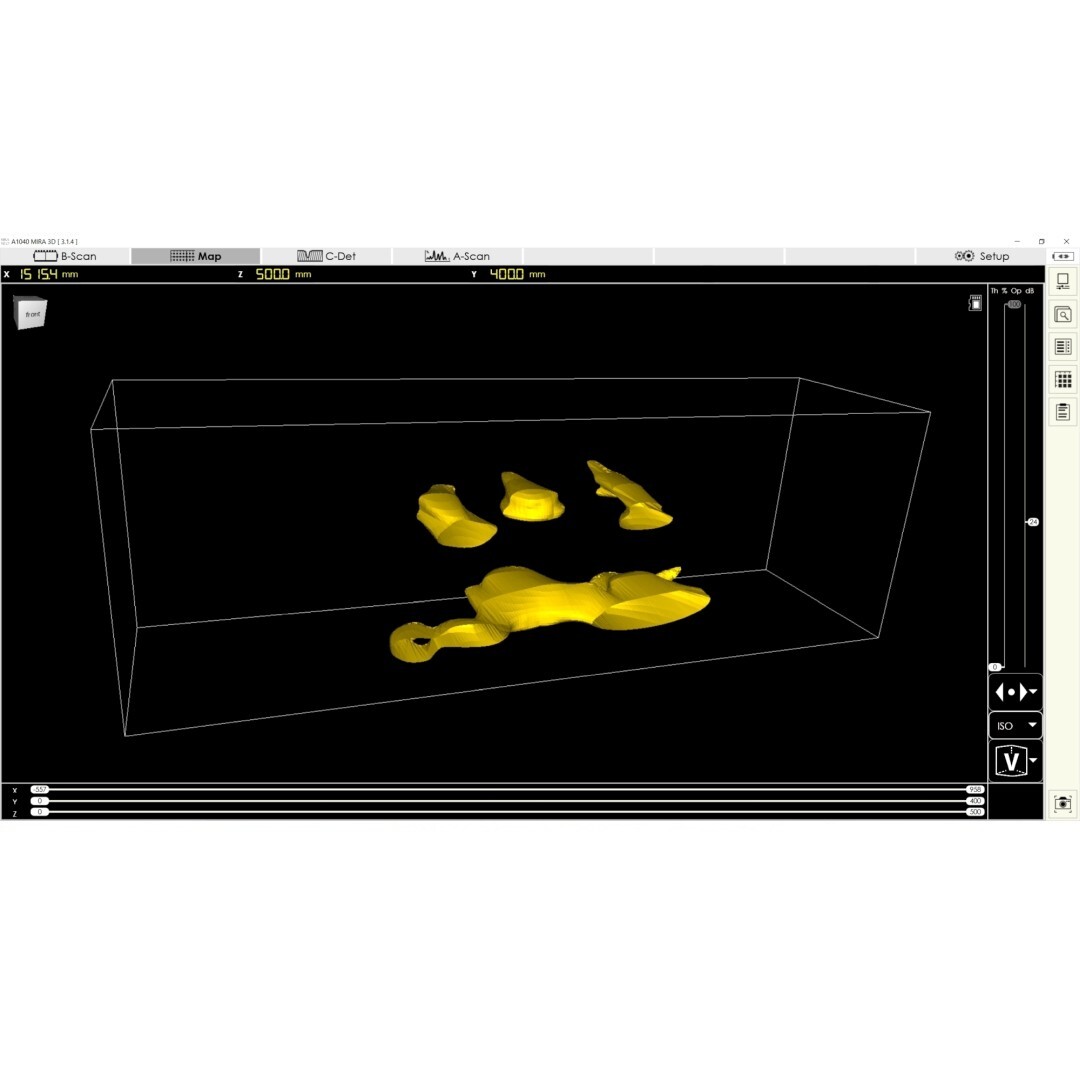

3D volume view

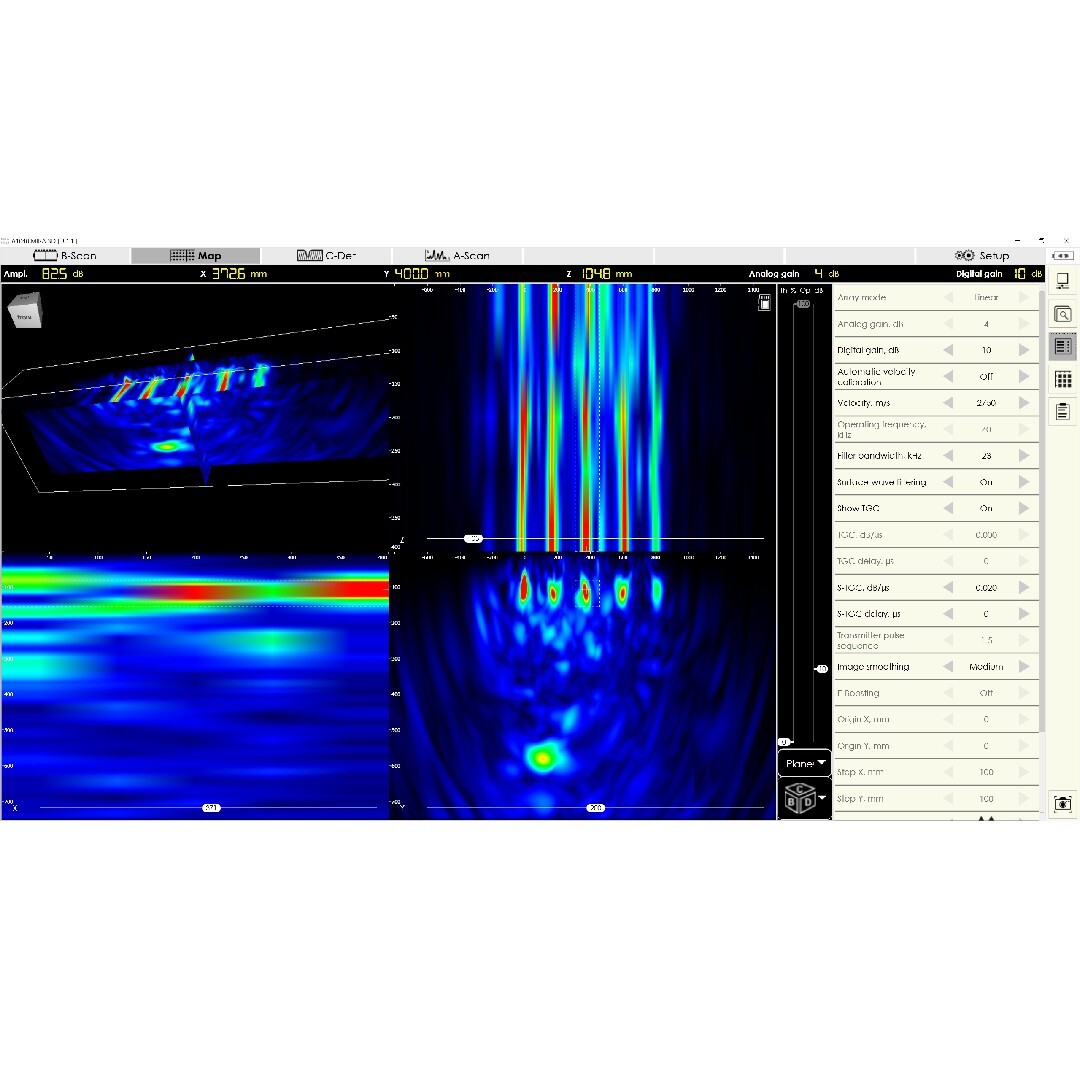

B-, C-, D- projections
Cutting planes / gated volume projections
Texture mapping
Ray casting
Maximum intensity projection
ISO surface

System requirements:

CPU	Dual Core 2 GHz and higher
RAM	16 GB and more
Operation System	Windows 10 64-bit or higher
Graphical processing unit GPU	NVIDIA GPU, minimum 2 GB RAM, OpenGL version 4.5 or higher, Maxwell or next-generation architecture
