A1207 - taschenformatiger Ultraschall-Dickenmesser

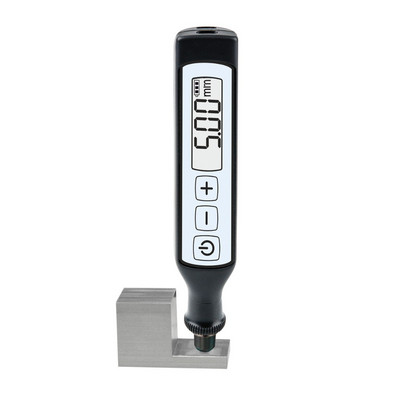

A1207 PenGauge: Integriertes Design für echte Einhandbedienung
Eigenschaften und Vorteile
A1207 PenGauge: Integriertes Design für echte Einhandbedienung
Eigenschaften und Vorteile

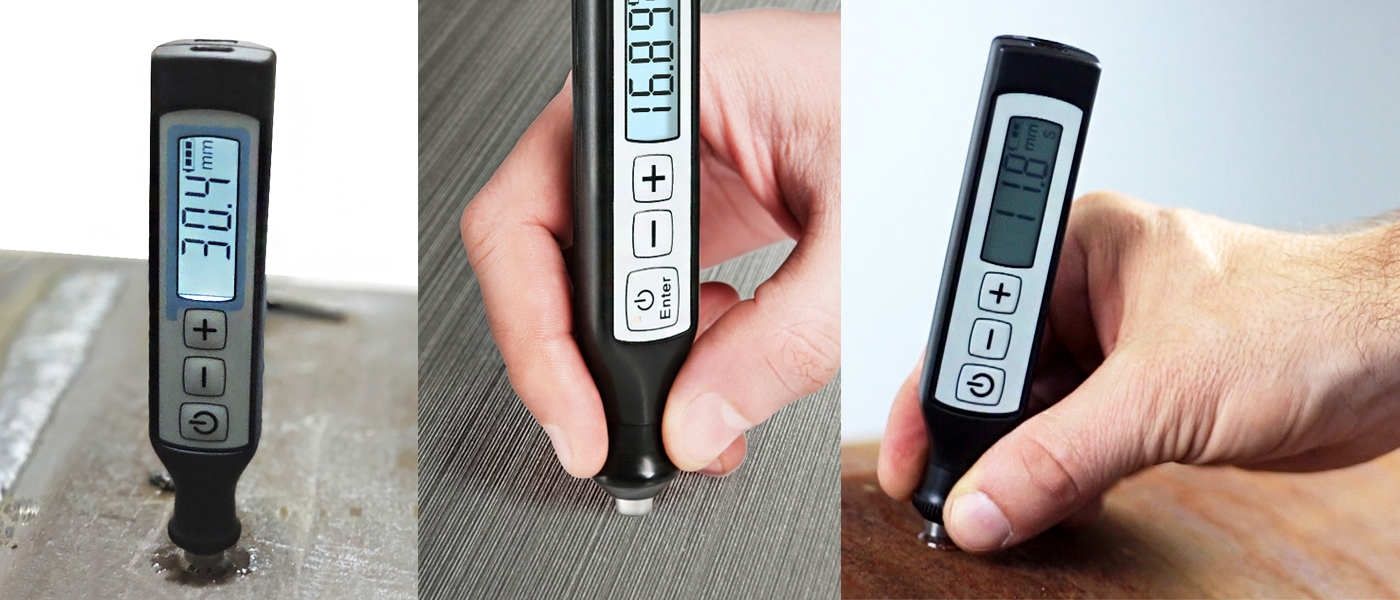

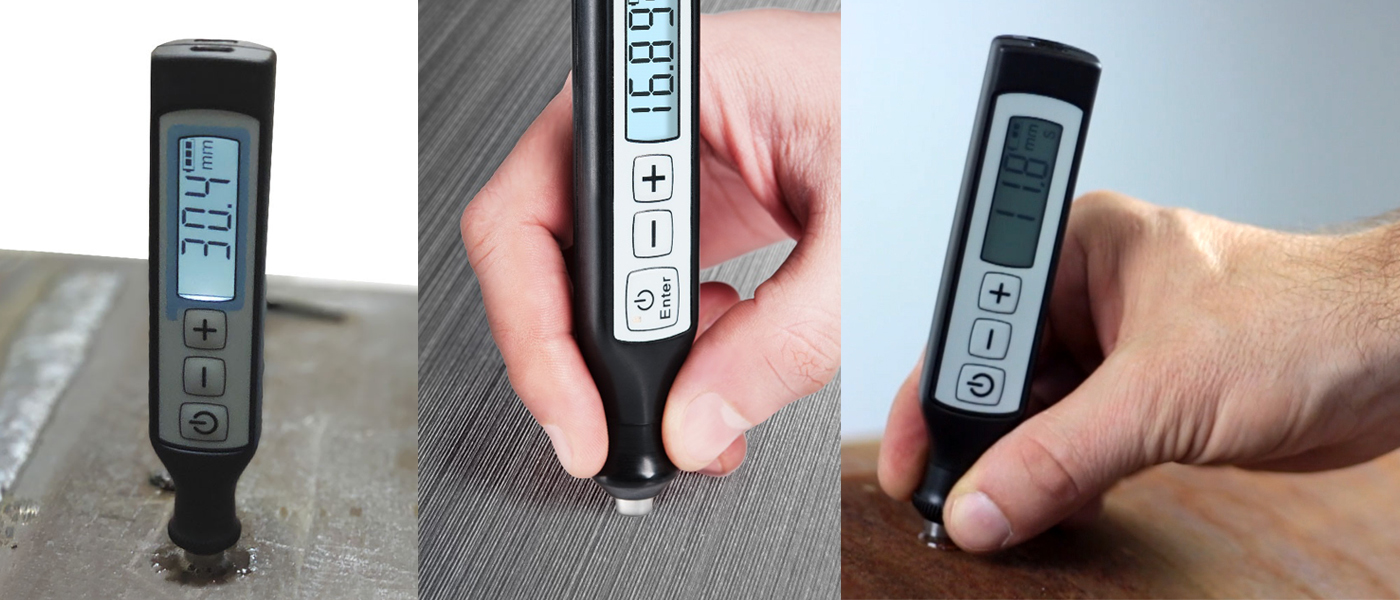

- Kompaktes Design: Prüfkopf und Anzeigeeinheit in einem einzigen Gerät kombiniert – keine kaputten Kabel mehr!
- Direkte Anzeige: Digital angezeigter Dickenwert auf einem hellen LCD-Bildschirm.
- Benutzerfreundliche Bedienung: Einfaches Zwei-Tasten-Interface für einfache und unkomplizierte Nutzung.

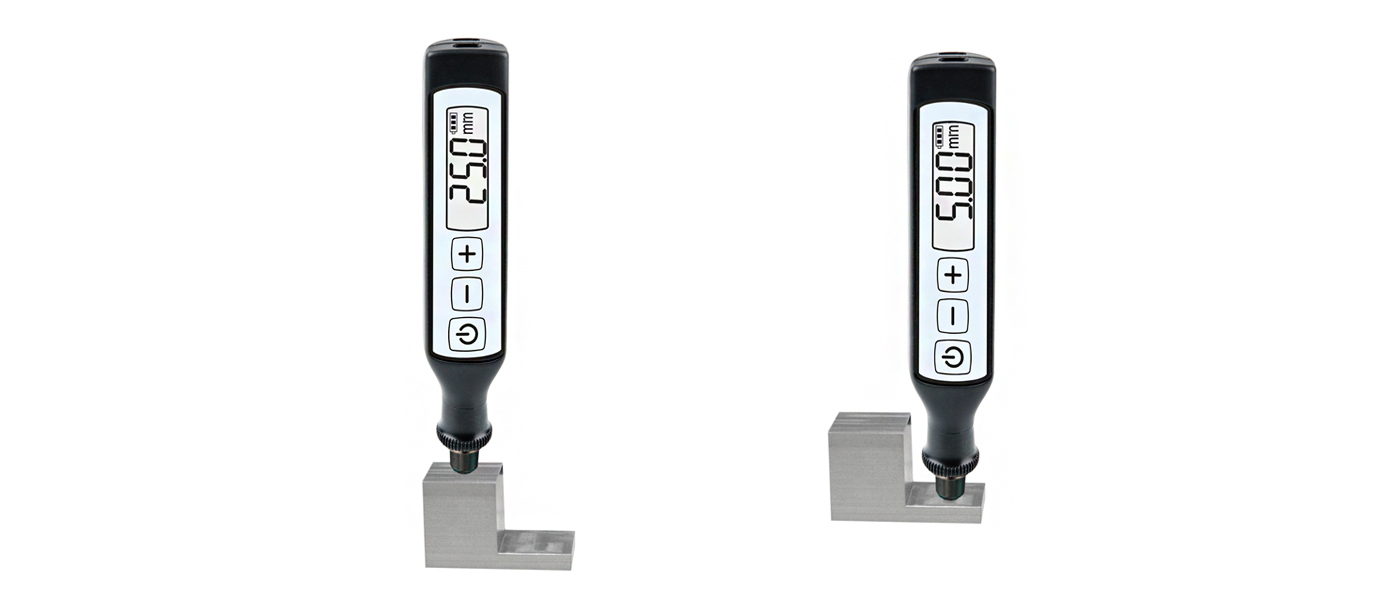

- Kalibrierungsoptionen: Kalibrierung auf bekannte Wanddicke oder Materialgeschwindigkeit.

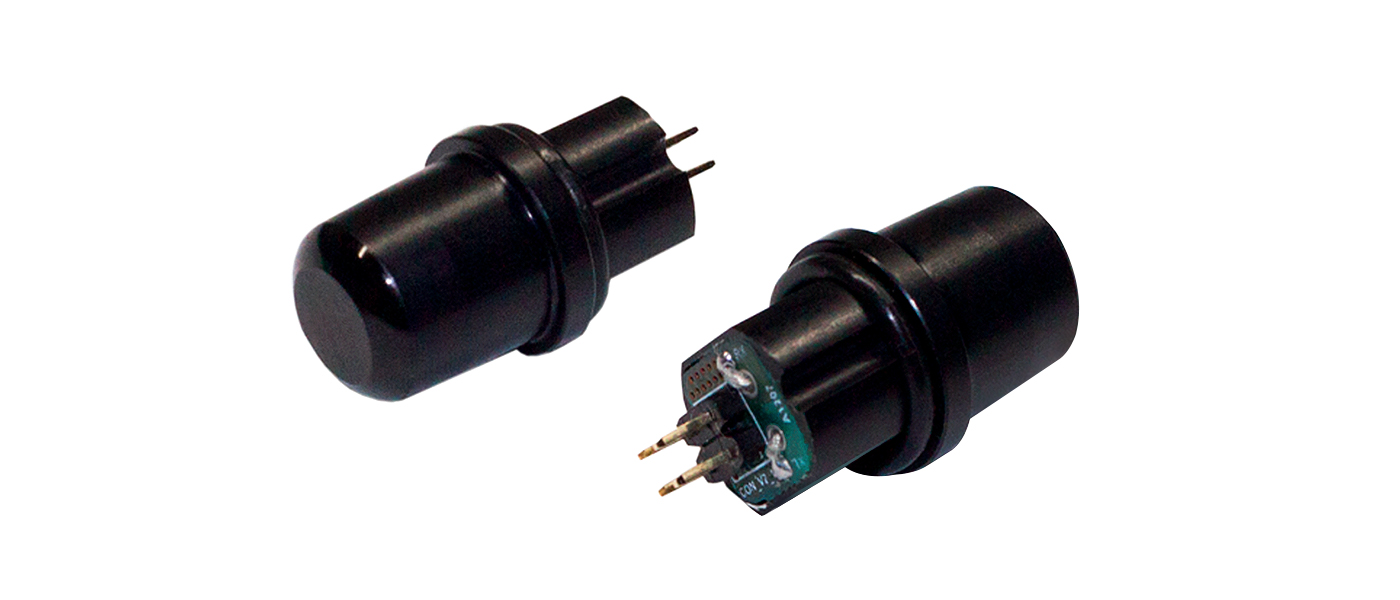

- Hot-Pluggable Wandler Eingebaute, austauschbare 7-MHz-Doppelschwingerprüfkopf für Standardanwendungen; optional 4-MHz-Einzelschwingerprüfkopf für erweiterten Messbereich verfügbar.
- Großer Messbereich: Messungen von 0,7 mm bis 150 mm (0,028 Zoll bis 5,9 Zoll) je nach Material und Oberfläche.
- A-Bild-Darstellung: A-Scan-Fähigkeit auf iOS und Android APP enthalten.
Description

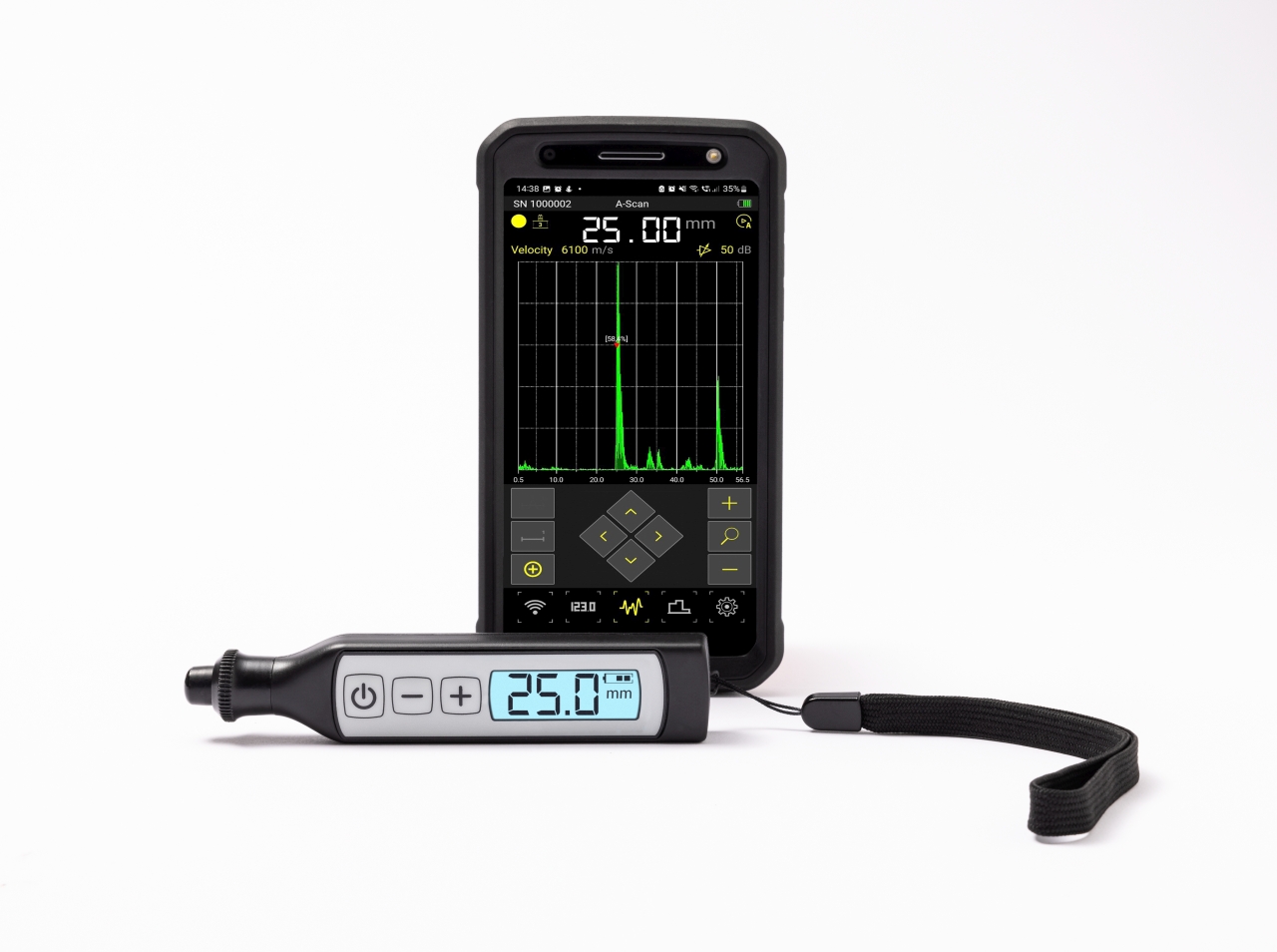

A revised model of the pocket-type thickness gauge combining usability and convenience with new functional capabilities.
The thickness gauge is enclosed into a one-piece case with a removable tip having a built-in changeable wearproof dual-crystal transducer with an operating frequency of 7 MHz.

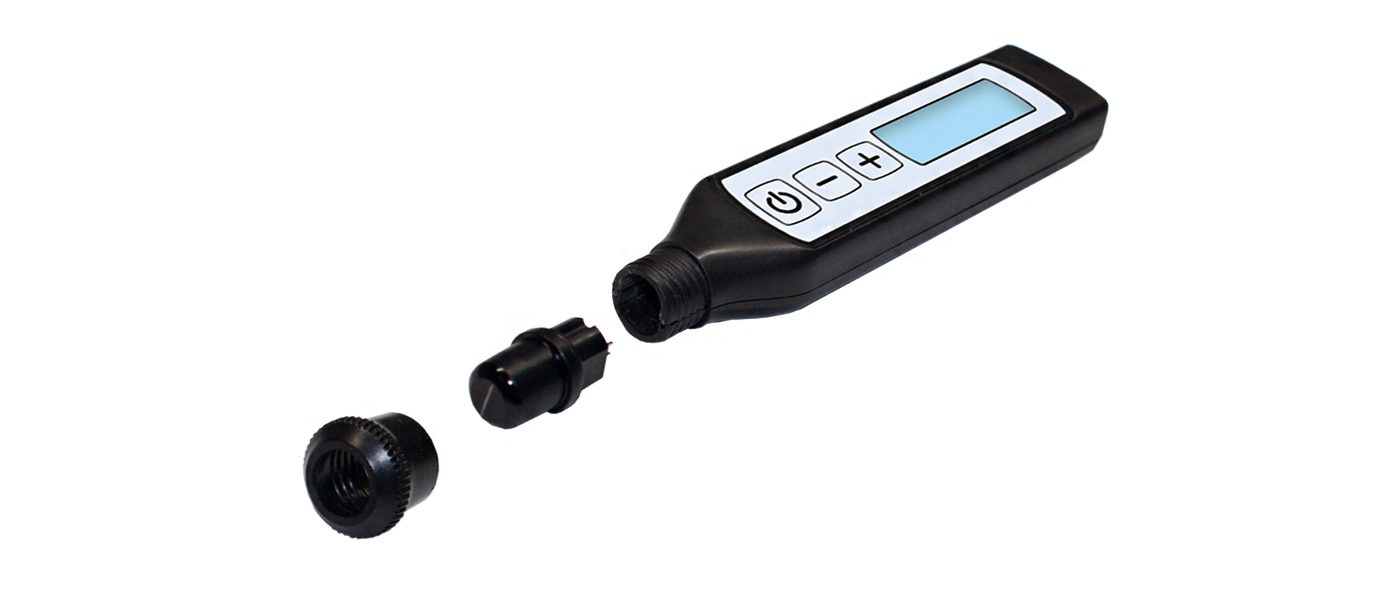

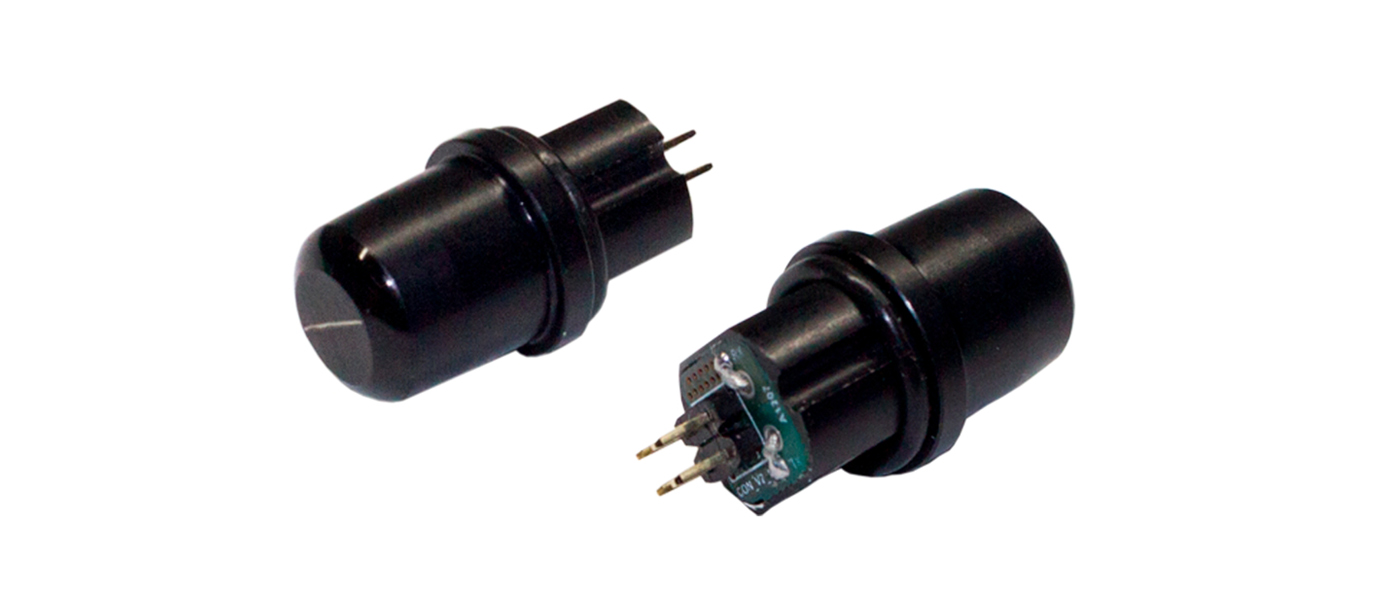

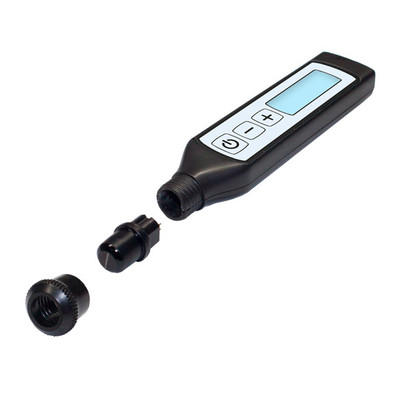

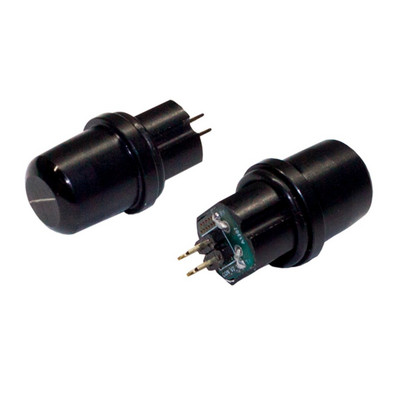

The hot-pluggable built-in transducer can be easily replaced by the user by means of unscrewing the tip and detaching the transducer capsule from the instrument without extra tools.
The instrument has a small size and weight (can be carried in a pocket), simple adjustment, and is easy to use.

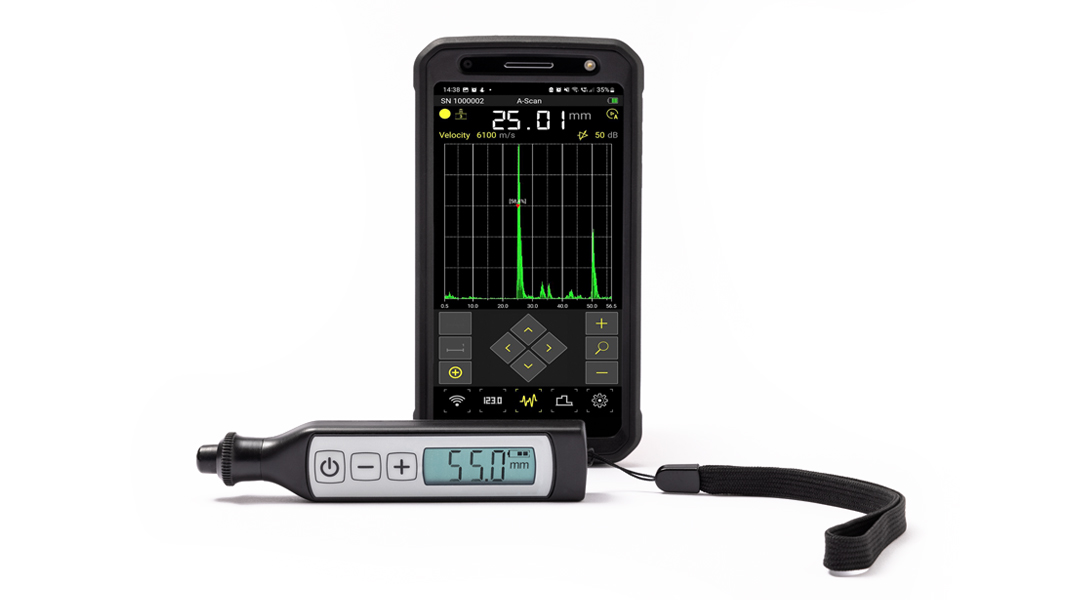

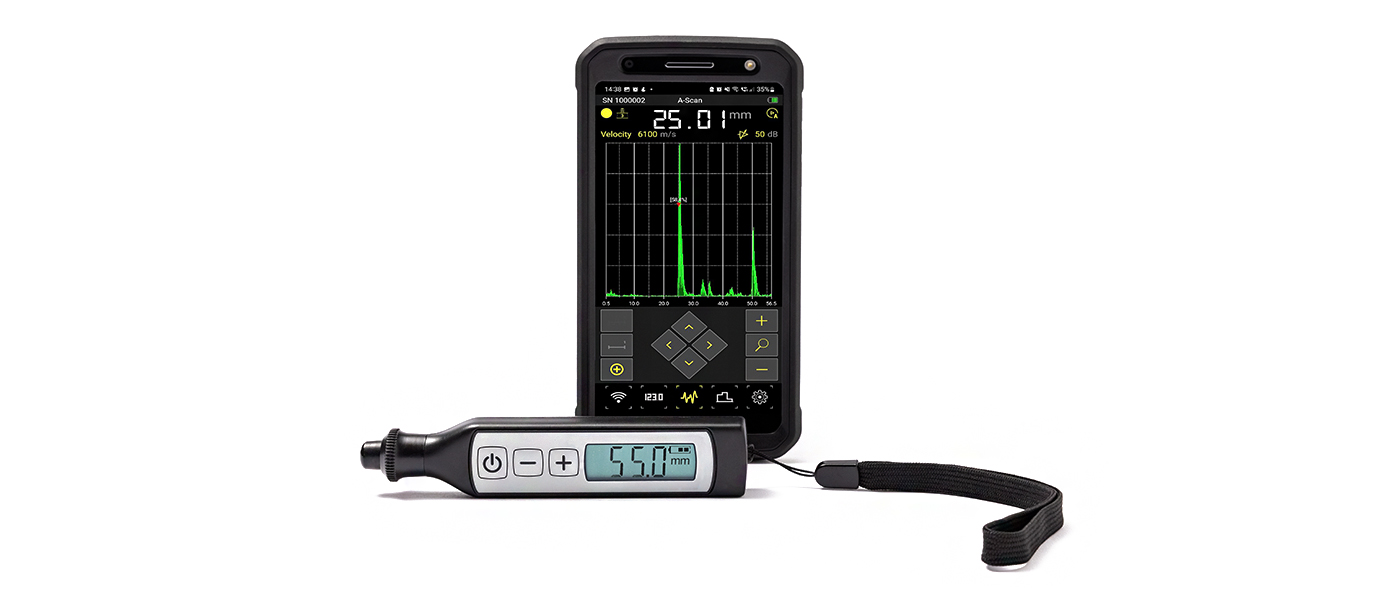

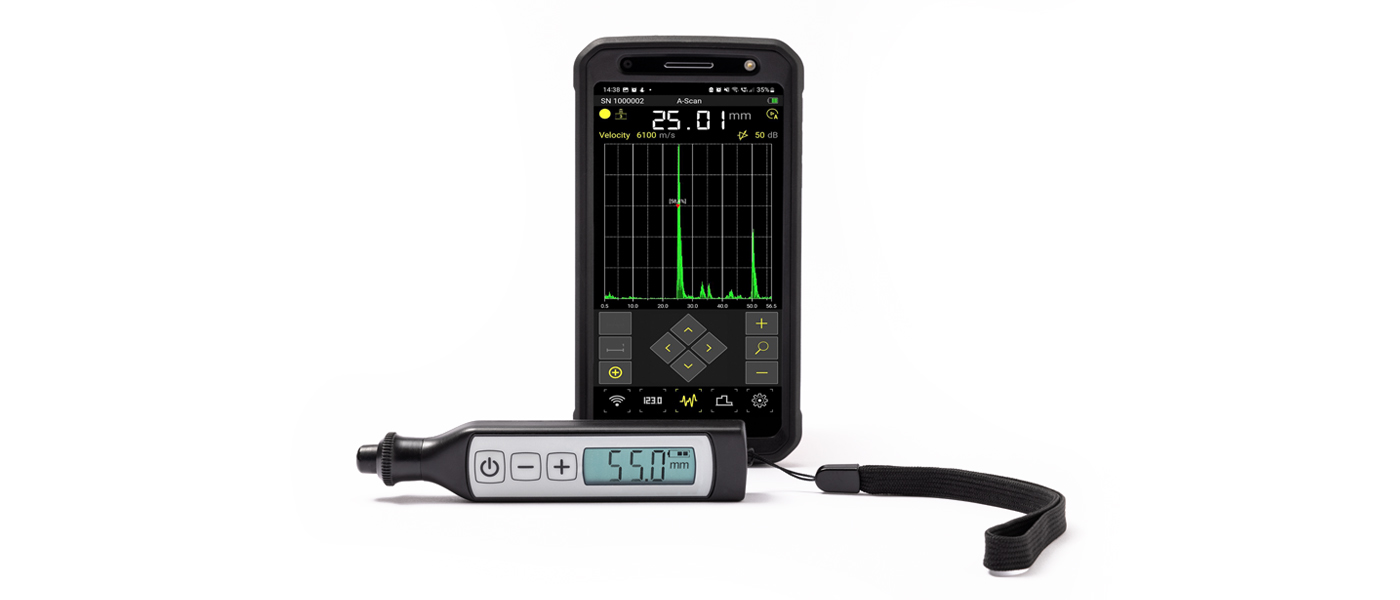

The built-in Bluetooth module provides communication and real-time display (online–thickness gauge) of digital measurement results and A-Scans of the signals to the screen of a smartphone or a tablet PC.

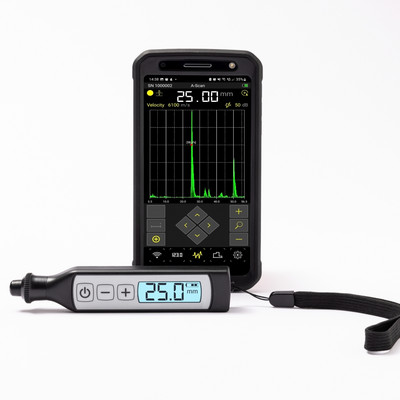

A dedicated software application allows viewing the digital measurement results and A-Scans of the signals for iOS & Android devices.
There is Automatic calibration of delay time (zero) of the built-in transducer.
A revised model of the pocket-type thickness gauge combining usability and convenience with new functional capabilities.
The thickness gauge is enclosed into a one-piece case with a removable tip having a built-in changeable wearproof dual-crystal transducer with an operating frequency of 7 MHz.
The hot-pluggable built-in transducer can be easily replaced by the user by means of unscrewing the tip and detaching the transducer capsule from the instrument without extra tools.
The instrument has a small size and weight (can be carried in a pocket), simple adjustment, and is easy to use.
The built-in Bluetooth module provides communication and real-time display (online–thickness gauge) of digital measurement results and A-Scans of the signals to the screen of a smartphone or a tablet PC.
A dedicated software application allows viewing the digital measurement results and A-Scans of the signals for iOS & Android devices.
There is Automatic calibration of delay time (zero) of the built-in transducer.
Applications
Application

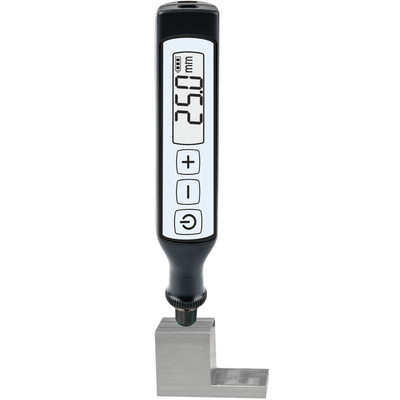

Express ultrasonic inspection of wall thickness of the boilers and vessels, hull plates and other objects made of ferrous and non-ferrous metals, as well as for ultrasonic thickness measurements of the small-diameter metal and plastic pipes (from 20 mm)
Application
Express ultrasonic inspection of wall thickness of the boilers and vessels, hull plates and other objects made of ferrous and non-ferrous metals, as well as for ultrasonic thickness measurements of the small-diameter metal and plastic pipes (from 20 mm)
Specification
Spezifikationen
| Bereich der Dickenmessung (für Stahl) mit dem Doppelschwinger- und Einzelschwinger-Prüfköpfen |
0.6 to 50 mm 1 to 150 mm |
|---|---|
| Art und Frequenz des austauschbaren Ultraschallwandler |
Standard: Doppelschwinger, 7 MHz Optional: Einzelschwinger, 5 MHz |
| Durchmesser der Doppelschwinger- und Einzelschwinger-Prüfköpfen |
6 mm / 8 mm |
| Geräteauflösungen |
0.1, 0.01 mm |
| Messungenauigkeit für die Dicke X, nicht mehr als: |
± (0.005Х + 0.1) mm |
| Maßeinheiten |
mm, Zoll(Inch) |
| Energieversorgung |
Integrierter LiPo-Akku |
| Zeitraum des kontinuierlichen Betriebs des Instruments bei Temperaturen > 0°C |
16 Stunden |
| Betriebstemperaturbereich |
-30 bis +50 ˚С |
| Gesamtabmessungen |
130 х 30 х 20 mm |
| Gewicht |
50 g |

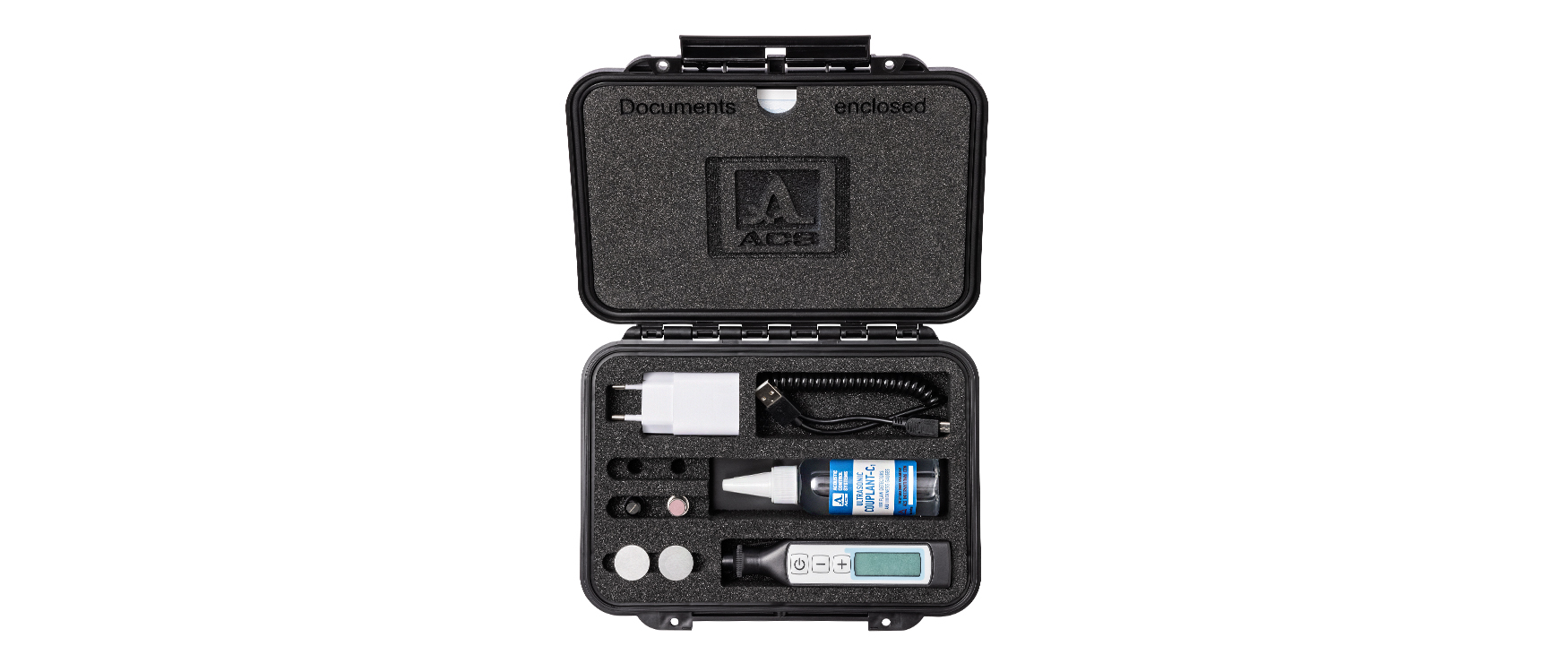

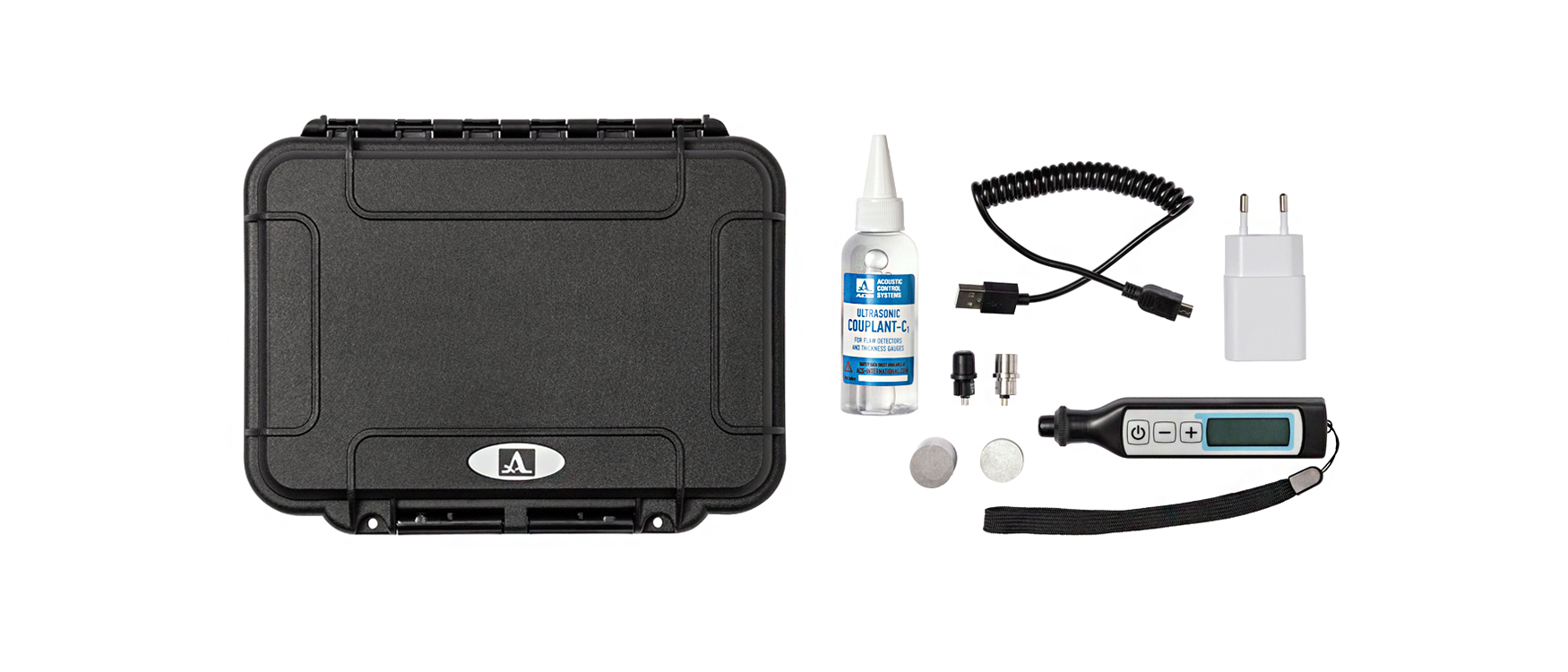

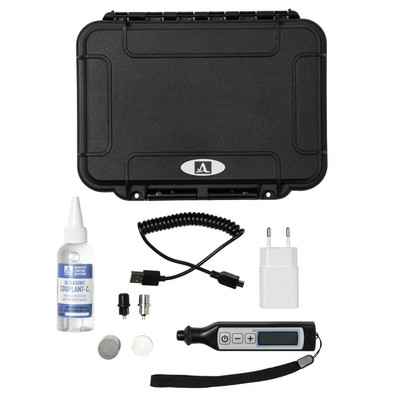

Delivery kit

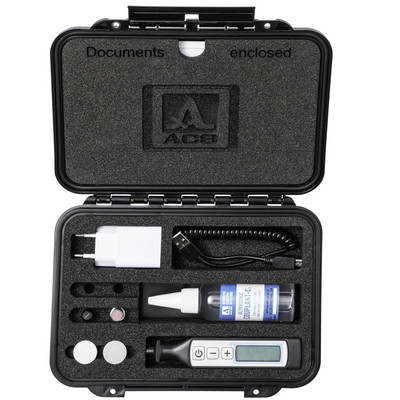

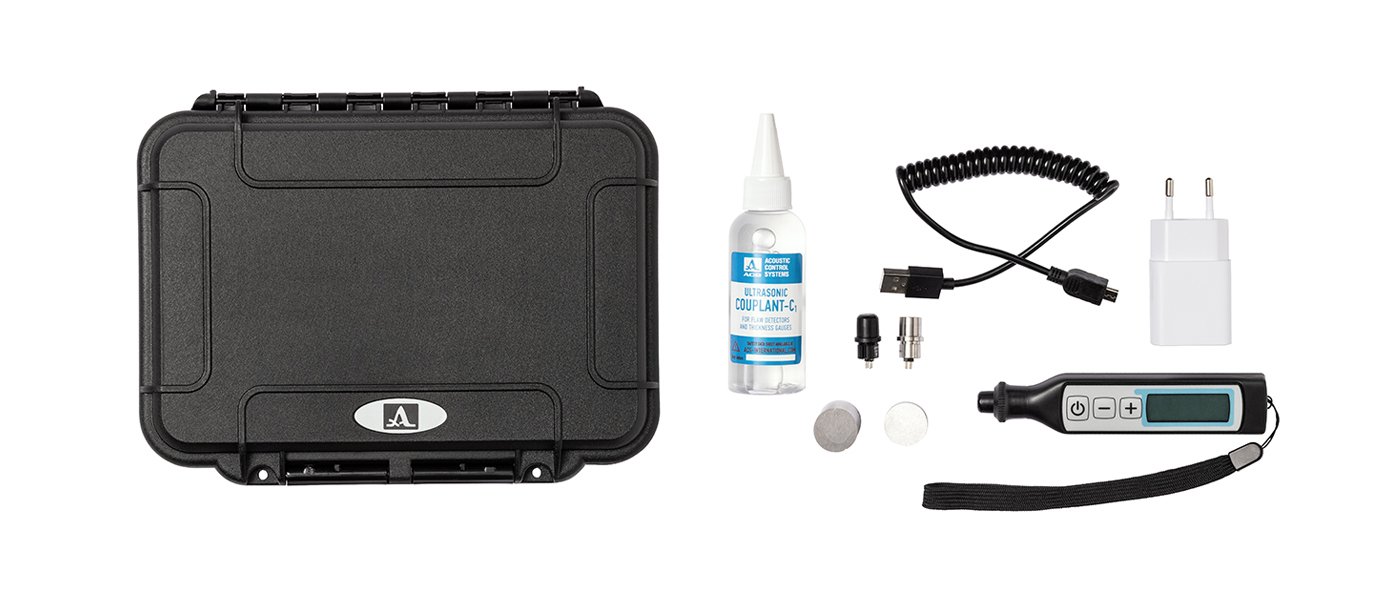

Instrument with a built-in rechargeable battery

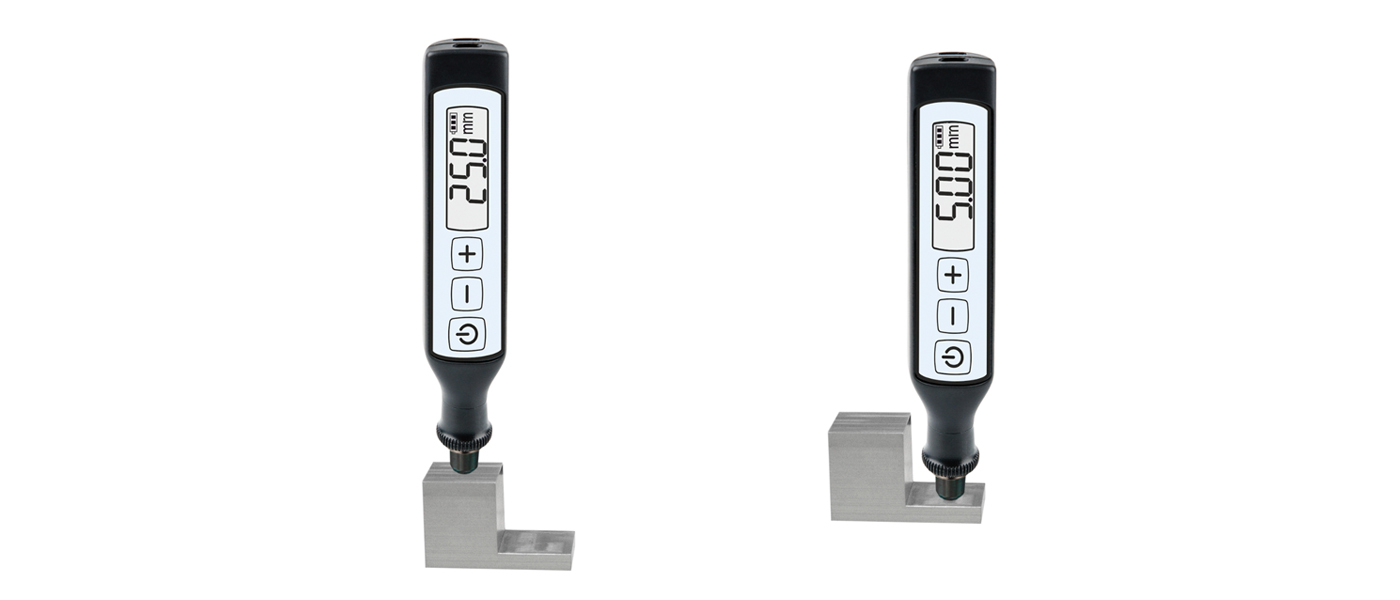

Dual-crystal transducer D1572 (7 MHz, dia 6 mm)
Calibration samples 5 mm and 25 mm
Сouplant
Power adapter & USB-cable
Finger lanyard
Hard shell carry case
Free App for iOS & Android
Optional: Single-crystal transducer S1573 (5 MHz, dia 8mm)
Instrument with a built-in rechargeable battery
Dual-crystal transducer D1572 (7 MHz, dia 6 mm)
Calibration samples 5 mm and 25 mm
Сouplant
Power adapter & USB-cable
Finger lanyard
Hard shell carry case
Free App for iOS & Android
Optional: Single-crystal transducer S1573 (5 MHz, dia 8mm)
