S7694 – EMUS-Wandler mit Linearpolarization 3 MHz

S7694 – EMUS-Wandler zum Generieren und Empfangen von Transversal-Ultraschallwellen

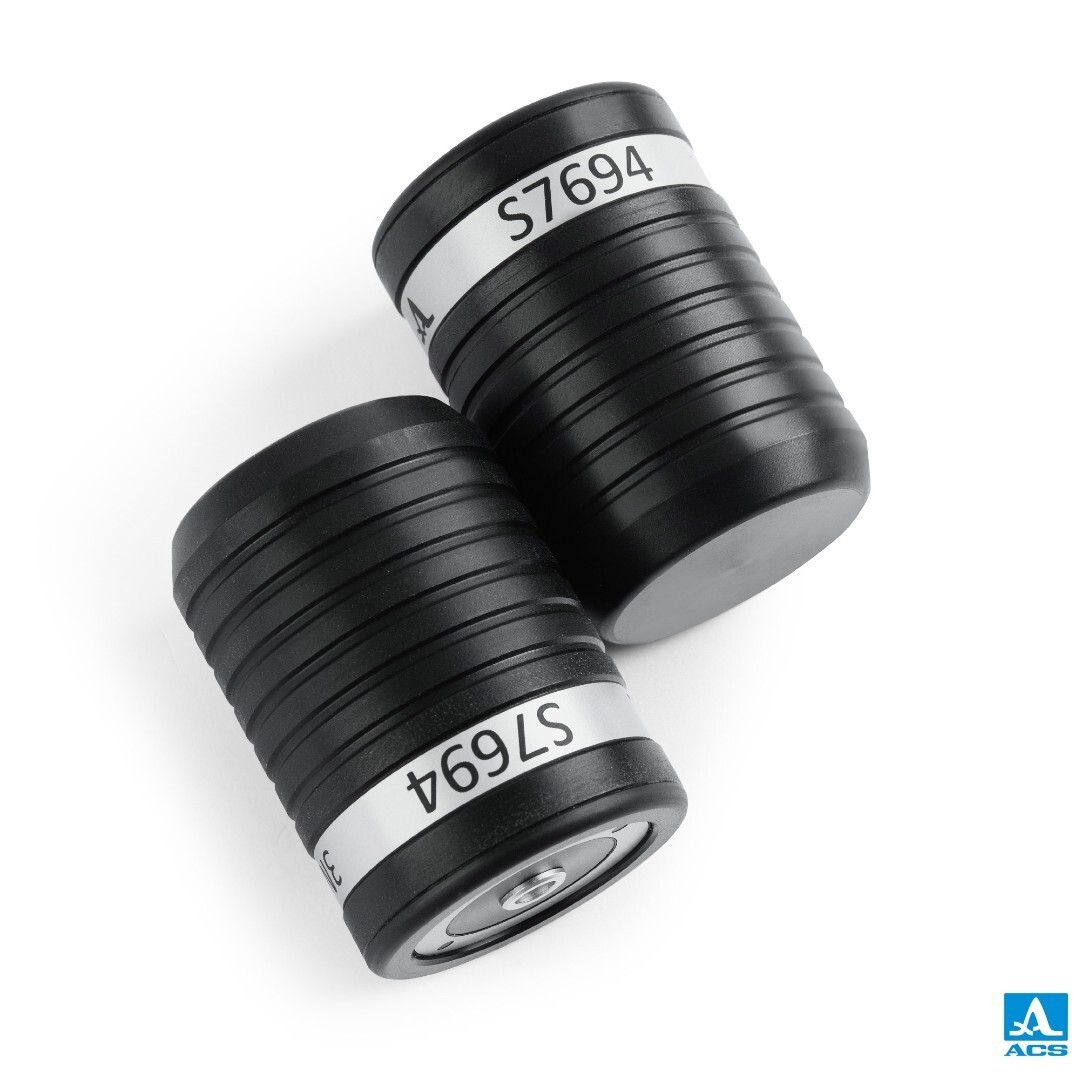

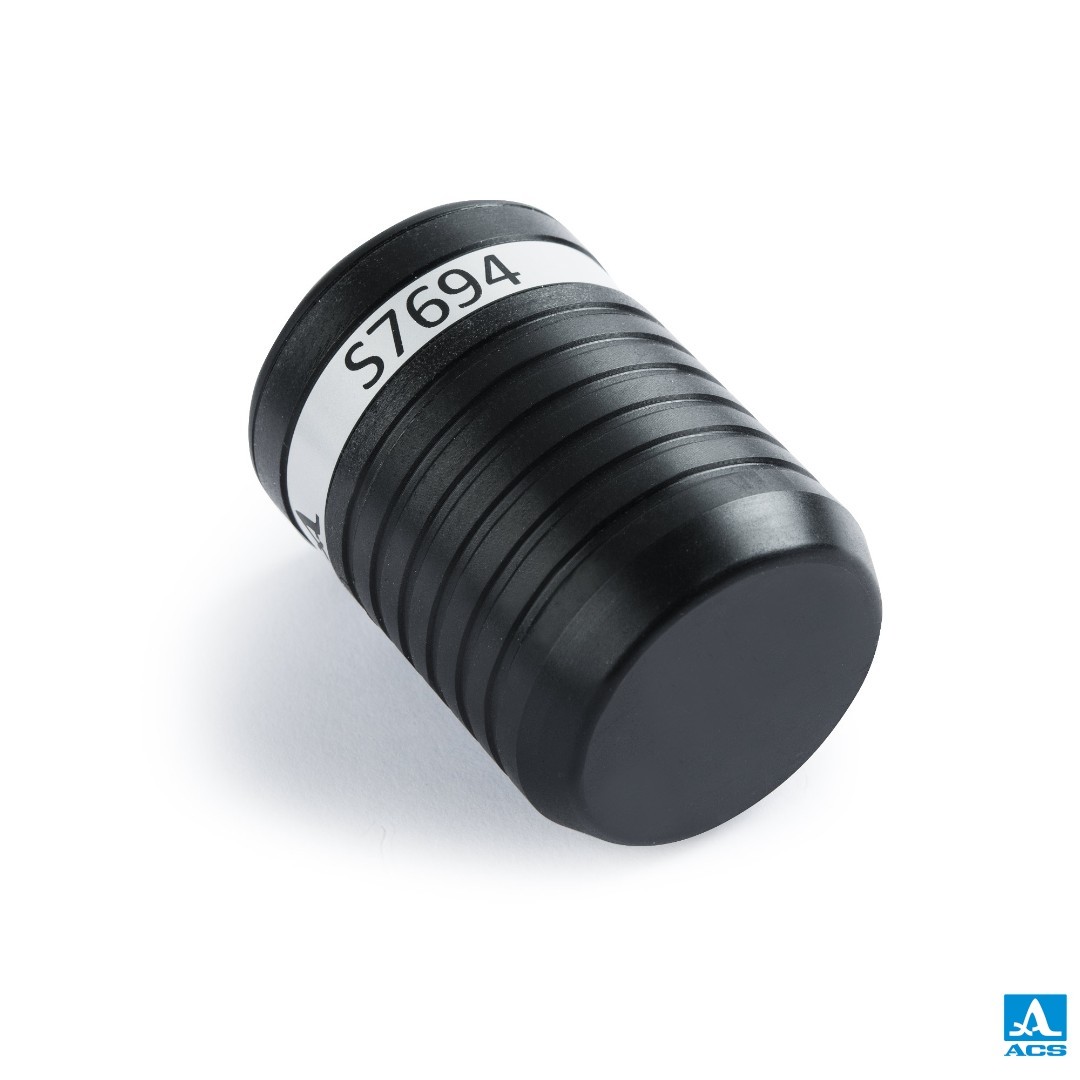

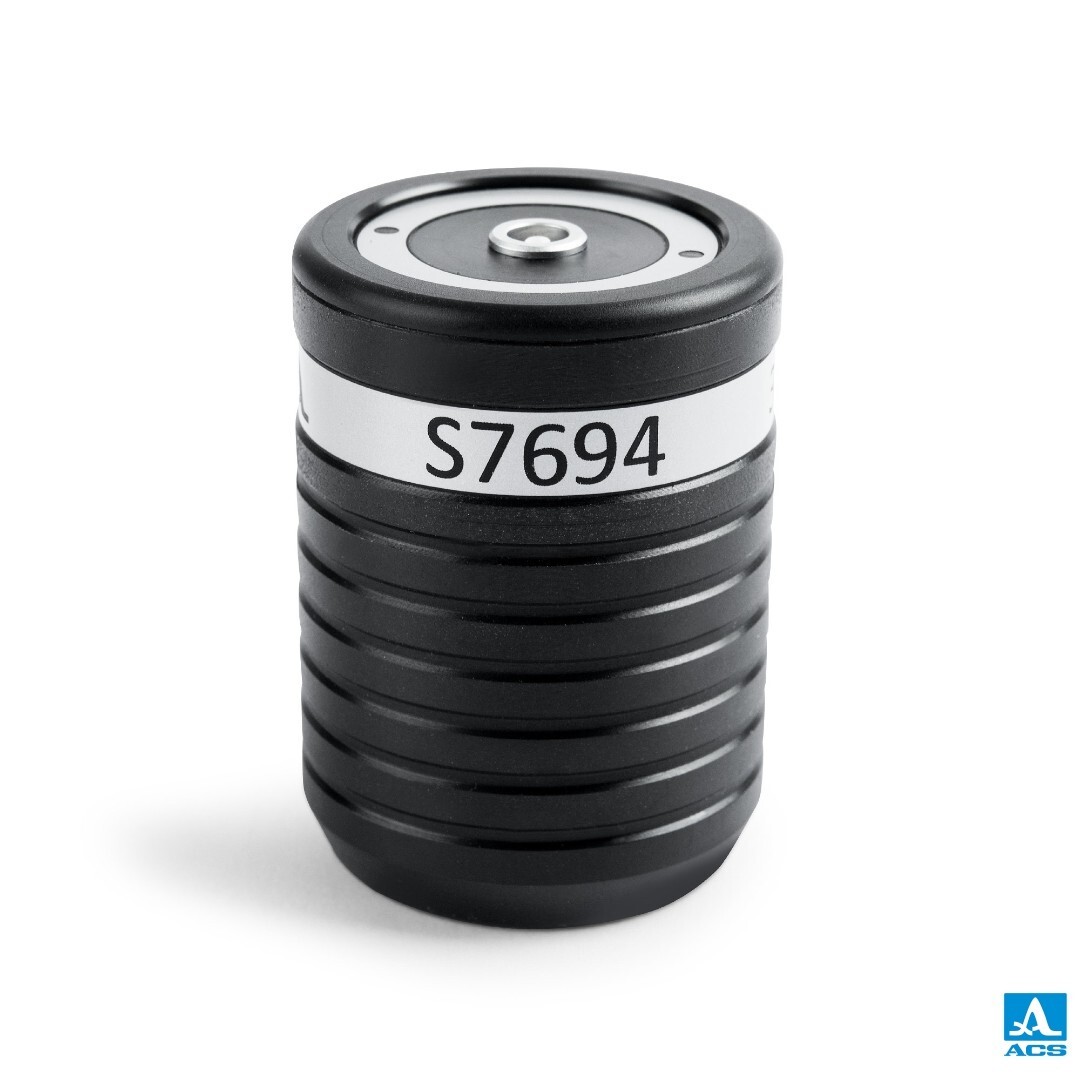

An electro-magnetic acoustic transducer S7694 for the couplant-free transmitting and receiving shear-horizontal ultrasonic waves can be used for thickness measurements by A1270 EMAT.

The transducer can be driven by following ACS instruments:

Transducer type EMAT
Type of generated wave mode: Shear wave, linear polarization
Nominal frequency 3 MHz
Effective aperture diameter 10 mm
Inspection range 1 to 200 mm
Lift-off / through-coating thickness up to 2 mm
Extended operating temperature range -20 to 60 °C
Overall dimensions: 35x58 mm
Cable length: Up to 3.000 mm
Weight 255 g
