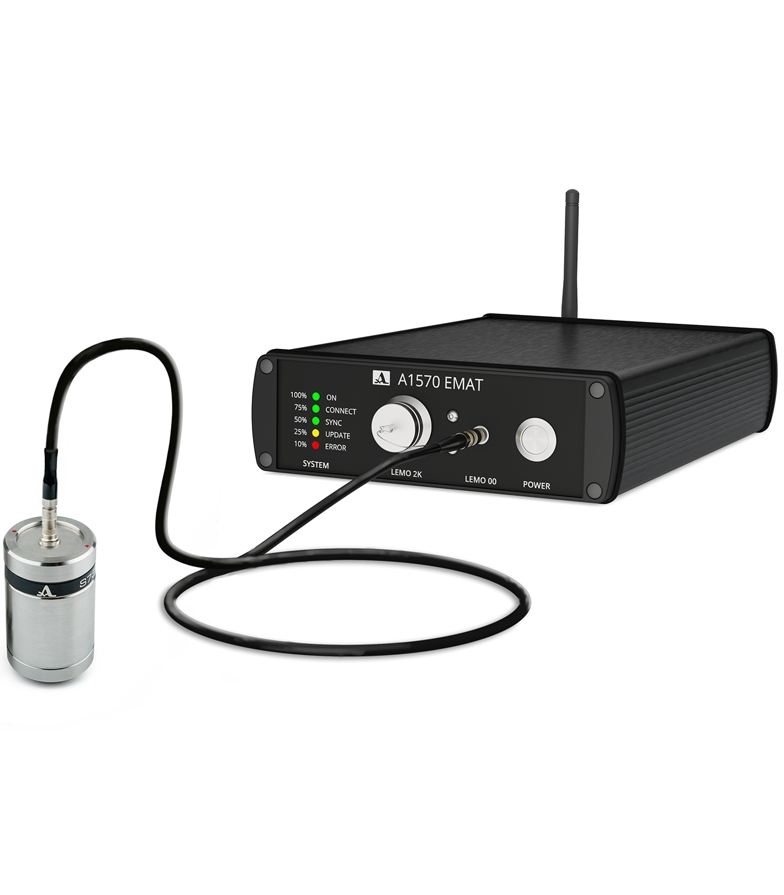

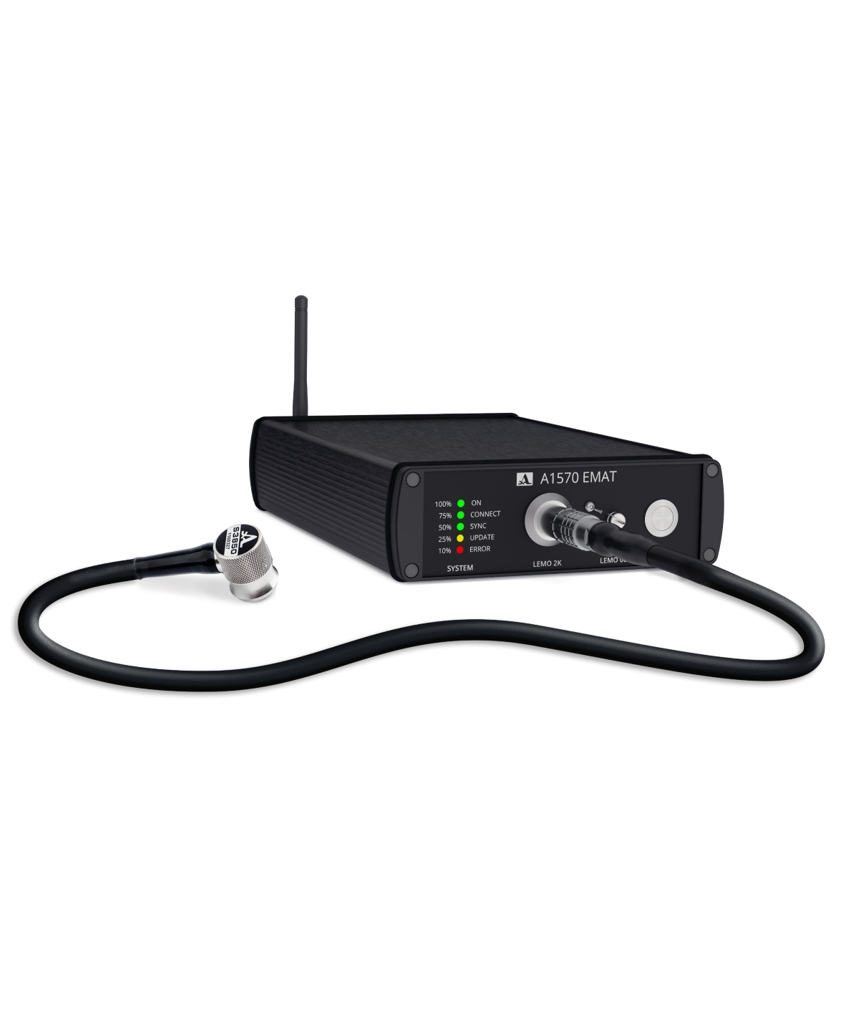

A1570 EMAT

OEM Ultraschall-Messelektronik-Frontend für die koppelmittelfreie Wanddickenmessungen mittles elektromagtetisch-akustischen Anregung (EMUS)

 Ein Angebot bekommen

A1570 EMAT ist ein High-end EMUS Frontend-Datenaufnahmenmodul zur Integration in automatisierte Prüfanlagen und Prüfmolche (Crawlers) für die koppelmittelfreien Wanddickenmessungen an metallischen Komponenten. Die Sende- und Empfängereinheiten des A1570 EMAT können sowohl die "konventionellen" EMUS-Wandler mit Permanentmagneten, als auch die neuartigen EMUS-Prüfköpfe mit elektromagnetischer Pulsmagnetisierung betrieben. DAs Gerät verfügt über eine integrierte Batterie und WiFi Datenschnittstelle und ist damit für die Stand-alone Anwendungen geeignet.

Mit dem sehr ausführlich dokumentierten Software Developer Kit ist ein Anwendungs-Entwickler in die Lage versetzt, seine eigene Software-Anwendung zu schreiben, um das Gerät in die Prüfvorrichtung zu integrieren..

A1570 EMAT is dedicated to conducting ultrasonic thickness measurements by means of electromagnetic-acoustic transducers. The instrument is suitable for variety of applications, such as:

  • Automated and mechanized corrosion testing on pipelines and storage tanks
  • Thickness measurements on boiler tubes & heat exchangers
  • Ultrasonic measurements on high-temperature objects
  • In-Situ ultrasonic stress measurements

TRANSMITTER

Output voltage, Volt

Bipolar burst ± 200 V, ± 400 V, ± 600 V

Excitation sequence, periods

0.5 to 9

Pulse repetition rate, Hz

up to 60 with the averaging factor 32





RECEIVER

Data acquisition length, Samples

up to 8 KSamples

Sampling rate, MHz

25 MHz, 50 MHz, 100 MHz

Receiver bandwidth, MHz

1 to 15 MHz

Dynamic range of the amplifier including Time Corrected Gain (TCG), dB

40 dB

Averaging factor

up to 32





DATA INTERFACES

Ethernet

up to 100 MBit

WiFi 802.11b/g/n / Bitrate:802.11n

up to 150Mbps

External trigger output

TTL + RS485 pulse signal





TRANSDUCER INTERFACES

For EMAT with pulse magnetization

Lemo 2K (EGG.2K.810.CLL1/EGG.2K.810.CLL1)

For EMAT with permanent magnet

Lemo 00 (ERN.00.250.CTL)





DIMENSIONS & WEIGHT

Dimensions of the electronic block

320 х 165 х 55 mm

Weight of the electronic block

980 g
Name Quantity, pcs.
А1570 – EMA thickness gauge electronic unit 1
EMA transducer S7694 1
Single Lemo00 cable 1.2 meter
(other lengths available on request)		 1
WiFi Antenne 1
Ethernet cable 1.5 meter 1
Net adaptor with cable 220V-15V 1
Introductory application software „ACS “Mathilda-EMAT“
Windows GUI App“ (available at www.acs-international.com)		 1
Hard case 1
